Atlona Technologies AT-UHD-EX-70-KIT 4K/UHD HDMI Over HDBaseT Transmitter/Receiver for Up to 230' with PoE

OUR PART #: AT-UHD-EX-70-KIT MFR #: AT-UHD-EX-70-KIT

Copied to clipboard
Atlona Technologies AT-UHD-EX-70-KIT 4K/UHD HDMI Over HDBaseT Transmitter/Receiver For Up To 230' With PoE Image 1
Atlona Technologies AT-UHD-EX-70-KIT 4K/UHD HDMI Over HDBaseT Transmitter/Receiver For Up To 230' With PoE Image 2
Atlona Technologies AT-UHD-EX-70-KIT 4K/UHD HDMI Over HDBaseT Transmitter/Receiver For Up To 230' With PoE
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

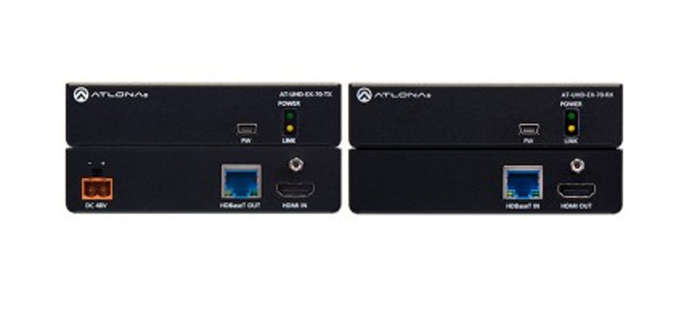

The AT-UHD-EX-70-KIT is a 4K/UHD HDMI over HDBaseT transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable with Power over Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.

The AT-UHD-EX-70-KIT provides integrator-friendly features including: IEEE standards-based PoE transmission for safety and compatibility; compliant with HDCP 2.2 to meet the latest copy protection requirements; an easy-to-install form factor with rear panel HDBaseT, HDMI, and power connections; a rackmountable form factor that allows for four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.

Altona AT-UHD-EX-70-KIT Includes:

  • User guide
  • Desktop power supply for transmitter
  • Detachable power cable
  • Mounting brackets

Altona AT-UHD-EX-70-KIT Features:

  • 4K/UHD capability:
    • Compatible with Ultra High Definition sources and displays
    • Full support of 4K/UHD streaming services and playback devices
  • HDCP 2.2 compliant:
    • Adheres to latest specification for High-bandwidth Content Protection
    • Allows protected content stream to pass between devices
  • Supports 4K HDR10 @ 24 Hz: Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
  • Remote-powered receiver:
    • Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
    • Saves time and integration costs
  • Long distance HDMI extension:
    • Transmits HDMI signals up to 230ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
    • Uses easy-to-integrate category cable for low-cost, reliable system installation
  • Rear panel I/O connectors:
    • Placement of ports on rear panel simplifies wire management
    • Saves installation time and eliminates clutter
  • Field updatable firmware:
    • Front panel USB port provides an easy means for kit upgrades
    • Ensures long term system return on investment
  • Multi-channel audio compliant:
    • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
    • Allows any multi-channel audio stream to be used within a professional audio system
  • Front panel Power and Link status LEDs:
    • LED indicators provide power and HDBaseT link status information
    • Provides easy setup and troubleshooting
  • Power chaining:
    • Included power supply provides ample power for up to three Atlona HDBaseT extenders
    • Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply
    • Reduces clutter from multiple power supplies in equipment racks
  • Low-profile, 1" (25 mm) high quarter rack-width enclosure:
    • Easy installation into system racks and confined spaces behind displays
    • Keeps devices out-of-sight when placed in public spaces
  • Award-winning 10 year limited product warranty:
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install with confidence

Altona AT-UHD-EX-70-KIT Specifications:

  • Resolution:
    • Video: 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Colorspace: YCbCr, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color Depth: 8-bit, 10-bit, 12-bit
    • HDR: 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color (Source signal delivered from Ultra HD Blu-ray as 4K @ 24Hz 4:2:2. Not compatible with HDR10 @ 60Hz.)
  • Audio:
    • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 115 ft (35 m)
    • CAT6a/7 @ 4K: up to 130 ft (40 m)
    • CAT5e/6 @ 1080p: up to 197 ft (60 m)
    • CAT6a/7 @ 1080p: up to 230 ft (70 m)
    • HDMI IN/OUT @ 4K: up to 15 ft (5 m)
    • HDMI IN/OUT @ 1080p: up to 30 ft (10 m)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Pass through
    • HDCP: Supports up to 2.2
  • Connector:
    • Firmware: Mini-B USB
    • HDBaseT: RJ45 (8P8C)
    • HDMI: Type A
    • Power: 2-pin, 48V captive screw
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 12W
    • Supply Input: AC100~240V 50/60Hz
    • Supply Output: DC 48V/0.83A
  • Dimension (HxWxD): 0.98" x 4.29" x 3.50" (25 x 109 x89 mm)
    • w/ears: 1.06" x 4.69" x 3.50" (27 x 119 x 89 mm)
  • Weight:
    • TX Unit: 0.64lbs (0.29kg)
    • RX Unit: 0.59lbs (0.27kg)
  • Certification:
    • Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
    • Product: CE, FCC
  • * 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
