Product Overview
The AT-UHD-EX-100CE-KIT provides integrator-friendly features including: IEEE standards based PoE transmission for safety and compatibility; compliant with HDCP 2.2 to meet the latest copy protection requirements; an integrator-friendly form factor with rear panel HDBaseT, HDMI, control and power connections; a rack- mountable form factor that allows for four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.
The AT-UHD-EX-100CE-KIT is ideal for use in residential or commercial point to point applications that require greater HDBaseT signal transmission distance than the AT-UHD-EX- 70C can support. As a transmitter/receiver pair, the kit can be used with the H2H matrix switcher and HDDA distribution amplifier series and third party control systems for long distance AV signal and control extension with PoE capability. On its own, the AT-UHD-EX-100CE-RX receiver is compatible with the UHD-PRO3 Series, AT-UHD-CLSO-601 and AT-UHD-SW-52ED.
Altona HDBaseT Transmitter/Receiver Features:
- 4K/UHD capability:
- Compatible with Ultra High Definition sources and displays
- Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices
- HDCP 2.2 compliant:
- Adheres to latest specification for High-bandwidth Content Protection
- Allows protected content stream to pass between devices
- Remote-powered receiver:
- Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
- Saves time and integration costs
- Extended distance HDMI extension:
- Transmits HDMI signals up to 328 ft (100m) @ 1080P with CAT5e/6 or 4K/UHD using CAT6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
- AV, Ethernet, power, and control over HDBaseT:
- Delivers 4K/UHD video, audio, 100Base-T Ethernet, power, and control through a single cable
- Eliminates multiple cable runs between source, control system, router, and display

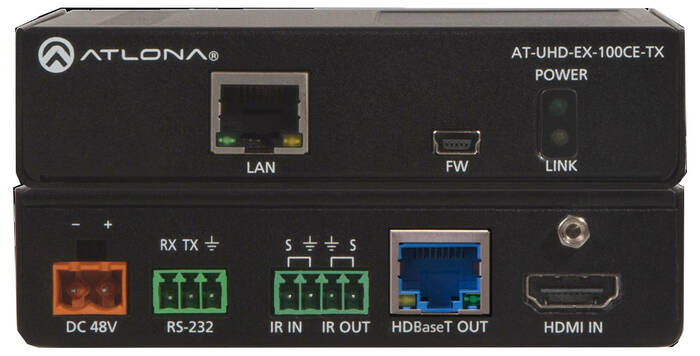

- Rear panel I/O connectors:
- Placement of ports on rear panel simplifies wire management
- Saves installation time and eliminates clutter
- Multi-channel audio compliant:
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, DTS:X™
- Allows any multi-channel audio stream to be used within a professional audio system
- Field updatable firmware:
- Front panel USB port provides an easy means for kit upgrades
- Ensures long term system return on investment
- Front panel Power and Link status LEDs:
- LED indicators provide power and HDBaseT link status information
- Provides easy setup and troubleshooting
- Power Chaining:
- Single power supply provides ample power for up to three Atlona Extender Kits
- Four Atlona Extender Kits may be powered using an optional power supply, p/n AT-PSU-48V1.25A
- Reduces clutter from multiple power supplies in equipment racks
- Low-profile, 1 inch (2.5 cm) high quarter rack-widthenclosure:
- Easy installation into racks and confined spaces behind displays
- Keeps devices out-of-sight when placed in public spaces
- Included accessories:
- User guide
- Desktop power supply for transmitter
- Detachable power cable
- IR emitter P/N AT-IR-CS-TX
- Mounting brackets
- Award-winning 10 year limited product warranty:
- Ensures long-term product reliability and performance in residential and commercial systems
- Specify, purchase, and install with confidence
Altona HDBaseT Transmitter/Receiver Specifications:
- Resolution:
- Video:4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
- VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
- Colorspace: YCbCr, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Audio:
- Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Rate: up to 24-bit
- Distance:
- CAT5e/6 @ 4K: Up to 230 feet (70 meters)
- CAT6a/7 @ 4K: Up to 328 feet (100 meters)
- CAT5e/6 @ 1080p: Up to 328 feet (100 meters)
- HDMI IN/OUT @ 4K: Up to 15 feet (5 meters)
- HDMI IN/OUT @ 1080p: Up to 30 feet (10 meters)
- Signal:
- Bandwidth: 10.2 Gbps
- CEC: Pass through
- HDCP: Supports up to 2.2
- Connector:
- Firmware: Mini-B USB
- HDBaseT: RJ45 (8P8C)
- HDMI: Type A
- LAN: RJ45 (8P8C), Ethernet pass through
- TX-IR: 4-pin captive screw
- RX-IR: 5-pin captive screw
- RS-232: 3-pin captive screw
- Power: 2-pin, 48V captive screw
- Temperature:
- Operating: 32°F to 122°F (0°C to 50°C)
- Storage: -4°F to 140°F (-20°C to 60°C)
- Humidity: 20 to 90% non-condensing
- Power:
- Consumption: 12W
- Supply: Input: AC100~240V 50/60Hz
- Output: DC 48V/0.83A
- Dimension:
- H x W x D: 0.98" x 4.29" x 3.50" (25 x 109 x 89 mm)
- Weight: 0.86lbs (0.39kg)
- Certification:
- Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
- Product: CE, FCC
