Westcott 7532 Flex 1' x 3' Daylight Cine Set

OUR PART #: 7532 MFR #: 7532

Copied to clipboard

Featuring a Flex 1' x 3' Daylight LED mat along with a Scrim Jim® Cine 1' x 3' Frame and diffusion... ...Read more

Westcott 7532 Flex 1' X 3' Daylight Cine Set Image 1
Westcott 7532 Flex 1' X 3' Daylight Cine Set Image 2
gI3clkON4xE
1 Video
Westcott 7532 Flex 1' X 3' Daylight Cine Set
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

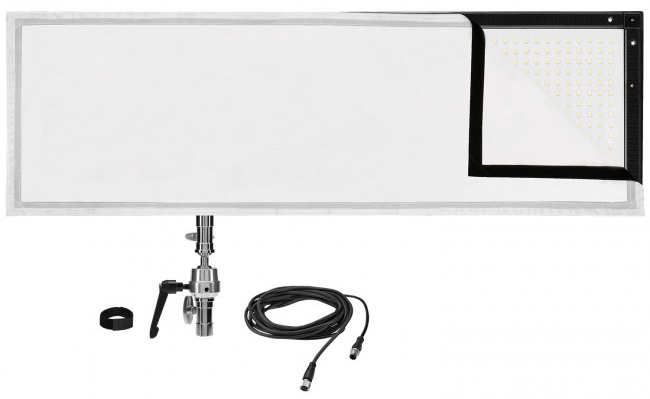

Featuring a Flex 1' x 3' Daylight LED mat along with a Scrim Jim® Cine 1' x 3' Frame and diffusion, Westcott's Flex 1' x 3' Daylight Cine Set brings filmmakers and photographers the ability to instantly build an exceptional portable light source. An ultra-versatile lighting solution designed for portability, the Flex 1' x 3' Daylight LED mat is fully-pliable, rainproof, and lightweight at less than 1 pound. But even with its compact form, the Flex is extremely robust and emits an output of 6000 lux at 1 meter through 256 state-of-the-art LEDs. The Flex is daylight-balanced at 5600K and boasts a remarkable 95 CRI, to render true-to-life colors and skin tones and help minimize post-production editing. Each Flex mat is lined with durable touch fastener on both the front and rear for easy mounting to the included Scrim Jim Cine Frame. The Scrim Jim Cine 1' x 3' modular frame, made from anodized aluminum for sturdiness, comes with heavy-duty hook-and-loop tape riveted to both sides of each tube, making for that easy mounting of the Flex, as mentioned earlier, as well as the included 1-stop diffusion Silk Diffuser. Additionally, the Scrim Jim Cine frame tube is designed with a built-in 3/8-16 thread, offering fast attachment to the included universal stud, to then allow placement on the included Dual-Socket Magic Arm. This heavy-duty Dual-Socket Magic Arm also comes in durable metal construction, and features dual female sockets, plus an integrated ball head, so it can be placed on any standard light stand or C-stand for precise directional control of the Flex's output when mounted to the Scrim Jim Cine Frame. For even more added convenience, a 16' included waterproof extension cable lets filmmakers and photographers set up their light source even in hard-to-reach locations while still providing access to the Flex’s handy digital dimmer.

The Future of Film and Photo Lighting - The Flex™ is a pliable, dimmable, water-resistant LED mat for video production and photography that produces an outstanding quality of light in both daylight, tungsten, and bi-color models. This cutting-edge technology is available exclusively through Westcott Lighting.

Total Performance - The fully-bendable Westcott Flex features a ultra-thin surface lined evenly with LED diodes. The outer edge is lined with a durable wire framework and protective leather finish, allowing the Flex to be molded into various shapes, then remain in place once positioned. The bendable Flex's ultra-compact design allows it to be easily concealed in tight spaces on-set, on-location, and during travel. The Flex provides stable light consistency and flicker-free output, making this light source an ideal solution for filmmakers. This unique light source also boasts an IP rating of 64, making it water-resistant and rainproof.

The Highest LED Light Quality - The Flex LED mat is available in tungsten, daylight, and bi-color versions. Although extremely compact in size, their output is anything but small. The Westcott Flex's surface area is strategically lined with high-quality LEDs, offering between 1,700 to 10,500 lux at 1 meter, depending on mat size. Flex mats boast remarkably high color purity as well, producing an outstanding quality of light. With Color Rendering Index (CRI) ratings of 95 and 98, these lights portray accurate shades and skin tones for faster post-production editing

Complete Light Control - The flat Flex's 140° light output provides a wide angle of light spread. Easily roll the Flex mat and insert into a space light or lantern for 360° of light spread. For a more narrow or dramatic beam of light, simply fold the Flex to the desired opening. The Flex includes a convenient dimmer to adjust light output from 5% to 100%. An optional 16' waterproof extension cable offers versatility when you need extra length.

Flex Cine Kits - Cutting-edge Westcott Flex mats pair perfectly with Westcott’s new Scrim Jim Cine system, offering the ultimate in lighting control. Flex and Scrim Jim Cine Frame combinations offer many output options, sizes, and fabrics. Scrim Jim Cine Frames are the next generation of modular, lightweight, and ultra-portable filmmaking tools.

Westcott Flex 1' x 3' Daylight Cine Set Includes:

  • 1 x Flex 1' x 3' Daylight Mat
  • 1 x Digital Dimmer & Power Adapter for 1' x 3' Flex
  • 1 x Flex Power Cord (16')
  • 4 x Scrim Jim Cine 22" Frame Tube
  • 4 x Scrim Jim Cine 2D Corner Frame Connector
  • 1 x Scrim Jim Cine 2' x 2' Full-Stop Diffuser
  • 1 x Universal Stud
  • 1 x Dual-Socket Magic Arm
  • 1 x 16' Dimmer Extension Cable for 1' x 3' Flex Mats
  • 1 x Cable Wrap

Westcott Flex 2' x 2' Daylight Cine Set Features:

  • Ultra-versatile 1-Light Flex LED kit
  • Flexible, lightweight LED mat
  • Daylight-balanced 5600K output
  • Fully-dimmable, high-output LEDs with 95 CRI
  • Durable Scrim Jim Cine modular framework
  • Includes mounting arm, extension cable, and more

Westcott Flex 1' x 3' Daylight Cine Set Specifications:

  • General:
    • SKU: 7532
    • UPC: 817967011778
    • US Patent No.: Patent Pending
    • Warranty: 1 Year
    • Care Instructions: Gently roll Flex mat to your desired position. Do not crease or fold sharply. Do not submerge. Store in a dry location. Avoid direct contact with extreme temperatures.
    • Shipping Dimensions: 38.00" L x 14.96" W x 3.28" H (96.52 x 38.00 x 8.33cm)
    • Shipping Weight: 0.1 lbs (0.0 kg)
  • Lighting Specifications:
    • Power Type: AC/DC
    • Light Type: LED
    • Color Render Index (CRI): 95
    • Lamp Life (Hours): 50,000+
    • Number of Lights: 1
    • Dimmable Range: 5% - 100%
    • Power Draw: 24V, 200W
    • Color Temperature: 5,600 K
    • Flicker-Free: Yes
    • Beam Angle: 140-360 degrees
    • Lux @ 1m: 6000
    • Lux @ 2m: 1980
    • Lux @ 3m: 1050
    • Foot-Candles (1m): 557.41
    • Foot-Candles (2m): 183.95
    • Foot-Candles (3m): 97.55
    • IP Rating: IP 64
    • Cooling: Passive
    • Voltage:110-240V AC
  • Power:
    • Input Voltage: AC: 100-240v
    • Operating Temperature: -15 °C ~ 40 °C (5 °F ~ 104 °F)
    • Power Adapter: AC Power Pack, DC Capable
    • Power Cord: External Power/Dimmer
    • Certification: CE, UL (Power Supply)
  • Scrim Jim & Modifier Information:
    • Fabric Type: Diffusion
    • Framed Panel Size: 1' x 3'
    • Interior Color: White
    • Diffuser Density" 1-stop
  • Stands & Mounting
    • Thread Size: 3/8" #16
    • Mount Type: 3/8" Female Thread
