Kramer FC-22ETH Ethernet Controller


The FC-22ETH is a bidirectional RS-232 or RS-485 to Ethernet control signal converter.
Learn More
Our Price: $288.00
List Price: $360.00
You save 20%!
Write the first review.
Kramer FC-22ETH Ethernet Controller
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The FC-22ETH is a bidirectional RS-232 or RS-485 to Ethernet control signal converter. It allows two RS-232 (or one RS-485 and one RS-232) controllable devices to be controlled via an Ethernet or LAN connection.

Kramer FC-22ETH Includes:

  • Ports - 1 RS-232 and 1 serial (RS-232 or RS-485 selectable), 1 Ethernet.
  • Simultaneous Communication - With up to 40 PC clients.
  • USB Port - For firmware upgrades.
  • Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Kramer FC-22ETH Features:

  • Control - RS-232 or RS-485 to Ethernet
  • BiDirectional Communications
  • Size - TOOLS

Kramer FC-22ETH Specifications:

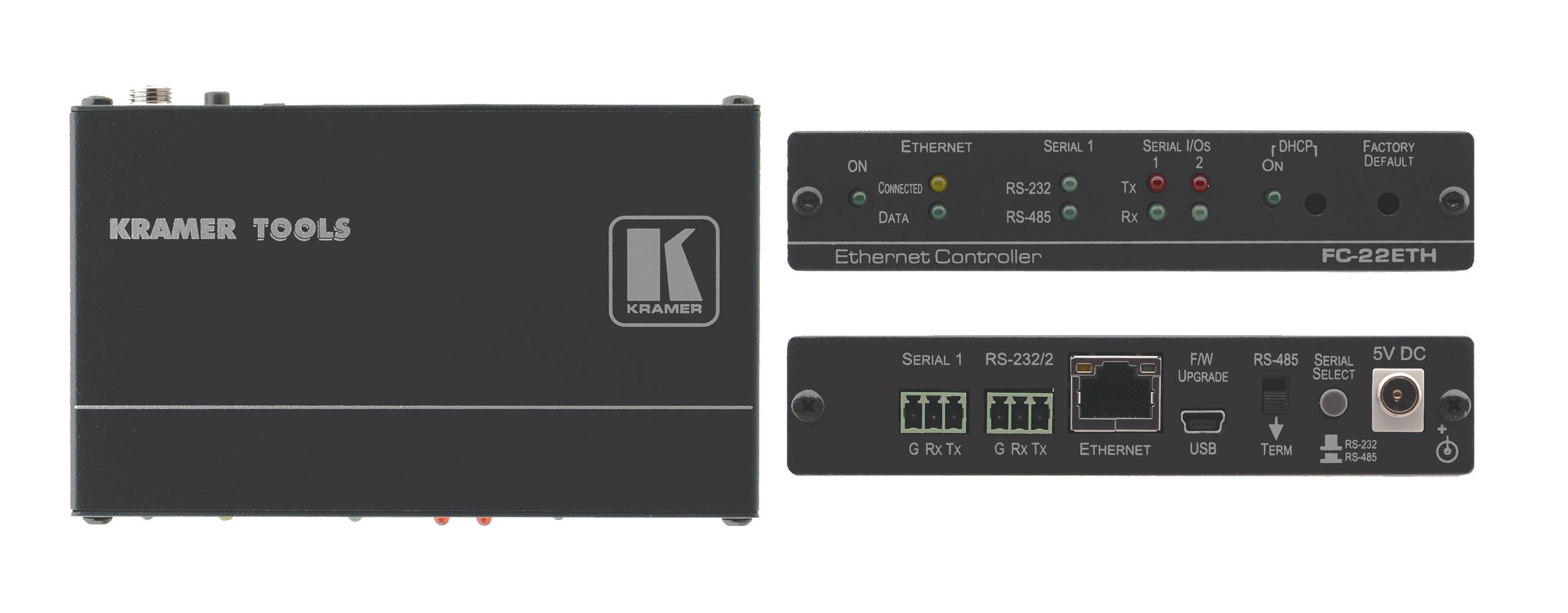

  • Ports: 1 RS-232 and 1 serial (RS-232/RS-485 selectable) on 3-pin terminal block connectors, 1 Ethernet on an RJ-45 connector.
  • Controls: Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons.
  • Indicators: Power, Ethernet, Serial 1, Serial I/O, and DHCP status LEDs.
  • Power Consumption: 5V DC, 200mA.
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: -40° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing.
  • Shipping Dimensions (WxDxH): 9.13" x 4.72" x 3.50" (23.20cm x 12.00cm x 8.90cm )
  • Shipping Weight: 0.9lbs (0.4kg) approx.
  • Accessories: Power supply.
  • Options: 19" rack adapter RK-3T.
