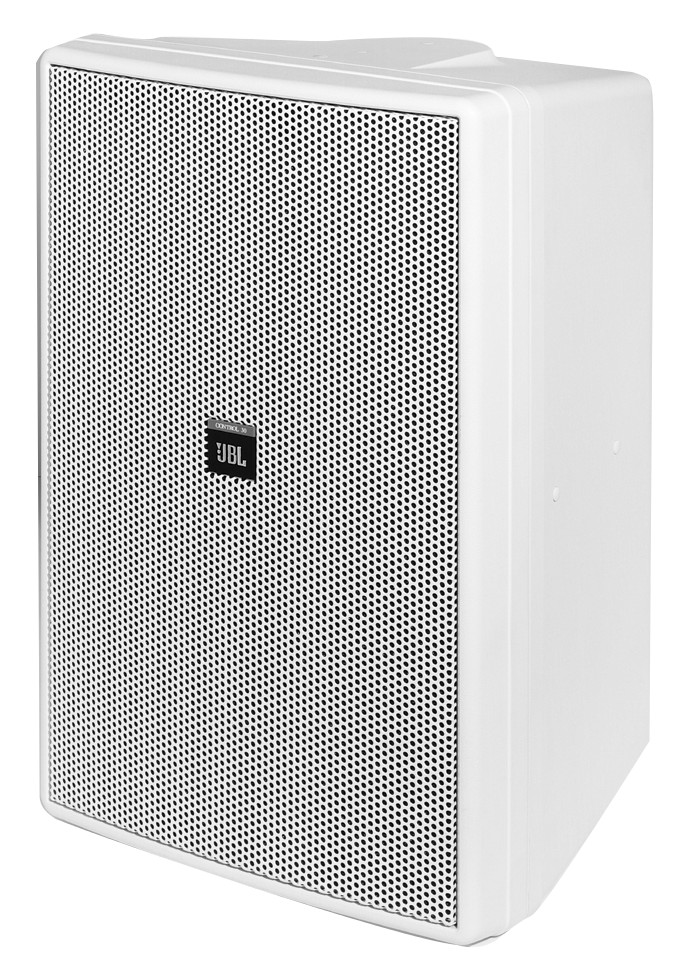

JBL Control 30 [USED ITEM]
10" 3 Way Loudspeaker in White


The JBL Control 30 features high-power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques...
Learn More
Sale Price: $440.97
List Price: $858.00
You save 49%!
Write the first review.
JBL Control 30 [USED ITEM]
In Stock
Related Products

The JBL Control 30 features high-power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, plus a complex network to attain smooth, high-fidelity performance, extended bandwidth and well-controlled, defined coverage, all from a compact loudspeaker.

NOTE: This is a USED item that may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Representative for more information on this and other products.

Its symmetrical mid-high frequency horn provides for use of the speaker in either vertical or horizontal orientation, with the smooth frequency response and cone-midrange performance ensuring excellent sound character throughout the frequency band, and over the full listening area.

Designed for minimal insertion loss and reduced saturation, the top-quality line distribution transformer allows use of either 70V or 100V distributed speaker lines. In bypass position, its 4 ohm impedance allows for the use of multiple speakers on a loudspeaker line.

Also included is the InvisiBall mounting method that offers ease of installation and aiming, plus delivers a high degree of theft deterrence. With the InvisiBall, you get horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-30UB (-WH) U-bracket allow for compact installation and come in particularly handy for low profile, underbalcony applications.

Additionally, weather resistance has been maximized with this unit. Its neodymium magnet LF woofer includes a fiberglass and Kevlar composite cone, while the surround is pure butyl rubber, and the basket is rear loaded for minimized exposure. The coaxial mid-high driver's MR cone is anodized aluminum with a formulation EPDM rubber surround, and the diaphragm for the HF compression driver is pure titanium. An acoustically transparent screen is used to protect the coaxial component. The thermoset composite coated grille stands up very well to UV as well as humidity, and is backed with JBL's WeatherMax multi-layer foam, preventing the direct incursion of water. A secure input connection is assured via Nickel/zinc rust-resistant terminals, with an MTC-PC2 sealed-entrance cover included for further protection of the speaker's terminals.

Virtually inaudible to the listener, JBL's exclusive SonicGuard overload protection ensures reliability while providing full fidelity sound.

JBL Control 30 Includes:

  • InvisiBall® mounting hardware
  • Ten (10) 6 mm attachment points for suspension
  • U-bracket (optional)

JBL Control 30 Features:

  • Extended bandwidth, extremely smooth frequency response
  • Fully outdoor-capable design, featuring WeatherMax™
  • 120° x 110° HF coverage
  • 150 W transformer for 70 V or 100 V lines, with 8 thru
  • SonicGuard® overload protection
  • 250 mm (10") fiberglass / Kevlar® cone LF woofer,with neodymium magnet coaxial 125 mm (5") anodized aluminum cone MR, and 25mm (1") titanium diaphragm compression driver
  • Sealed input panel cover and screw-down input terminals

JBL Control 30 Specifications:

  • 38 Hz to 17 kHz frequency range (-10 dB)
  • 250W pink noise, 500 watts continuous program power capacity
  • 120° x 110° coverage horn
  • 150W, 75W, 38W at 70V/100V (plus 19W tap at 70V only )
  • 8 Ohm Bypass
  • Outdoor-rated screw down input terminal strip (MTC-PC2 sealed entrance cover)
  • Dimensions (HxWxD): 23.3" x 14.6" x 13.5" (593 x372 x 345 mm)
  • Net Weight: 42 lbs. (18.9 kg)
