Waves eMotion LV1 MGB MADI Package
64-Channel Live Digital Mixing Software & Hardware Package with DiGiGrid MGB Interface and SoundGrid Extreme Server


Our Price: $4,999.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Waves eMotion LV1 MGB MADI Package offers a hybrid software and hardware package designed for live mixing applications. The centerpiece of this package is the eMotion LV1 Live Mixer digital mixing console software that is capable of providing real-time audio mixing for front-of-house, monitor, and broadcast engineers. This software's design is based on SoundGrid technology to deliver superior sound quality, convenience, and speed needed in demanding live environments.

eMotion LV1 provides unprecedented control over a mix. Each of the mixer's channels has its own plugin rack capable of running up to eight Waves and third-party plugins. This means you can now mix with hundreds of instances of your favorite plugins, all running inside the eMotion LV1 mixer itself. The mixer's channel strip – its standard EQ, filters, and dynamics processing – is provided by Waves eMo-series plugins. All plugin presets and chains saved in the eMotion LV1 can be shared with the Waves MultiRack and StudioRack plugin hosts, allowing engineers to move seamlessly between live and studio environments.

This version of the eMotion LV1 Live Mixer offers 64 stereo/mono input channels and uses the SoundGrid infrastructure for audio networking. It can be controlled by hardware control surfaces and multi-touch devices, ranging from multiple 5-point touchscreens to a single laptop or tablet.

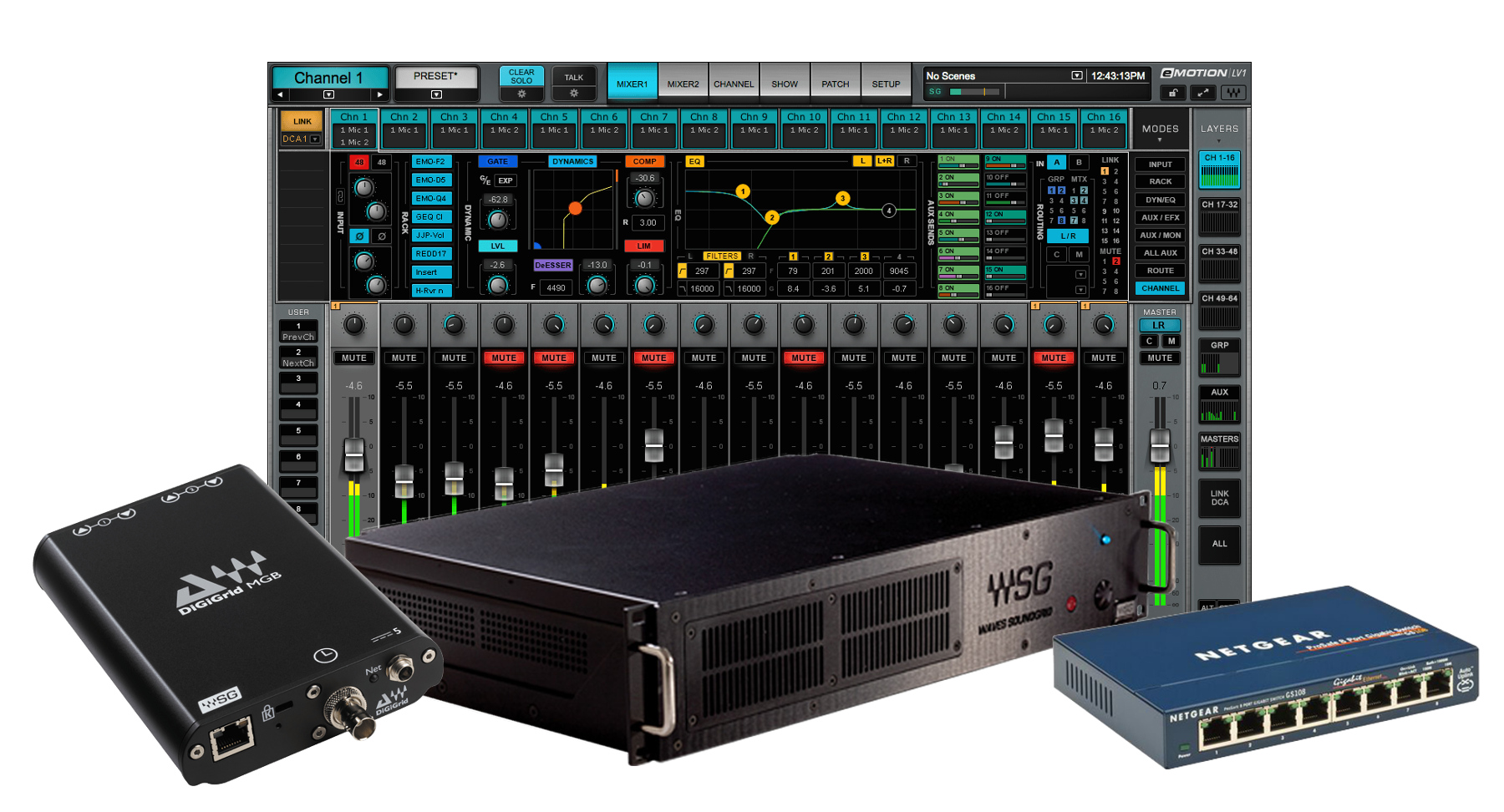

Waves eMotion LV1 MGB MADI Package Includes:

  • eMotion LV1 Live Mixer 64-channel digital mixing console software
  • eMo-Series Plugin Suite
    • Compressor
    • Gate
    • Expander
    • Leveler
    • Limiter
    • De-esser
  • DiGiGrid MGB coaxial MADI interface
  • SoundGrid Extreme Server DSP processor/server
  • NETGEAR ProSafe GS108 v3 8-port Gigabit Ethernet switch

Waves eMotion LV1 MGB MADI Package Features:

  • eMotion LV1 Live Mixer:
    • Up to 64 stereo/mono input and 36 stereo bus/return channels
    • Run 8 SoundGrid-compatible plugins directly on each channel
    • Standard channel processign provided by Waves eMo plugins
    • 16 DCA faders, 8 mute groups, 8 user-assignable function controls
    • 32-bit float mix engine; up to 96 kHz sample rate
    • Compatible with industry-standard control surfaces
    • Connect and share diverse SoundGrid I/Os, drivers, and applications
    • Connect to multiple DAWs for recording and playback
    • Windows/Mac 64-bit compatible
  • DiGiGrid MGB Coaxial MADI Interface:
    • MADI-to-SoundGrid interface
    • Plug and MADI-enabled device into SoundGrid
    • Record, process, and playback up to 128 channels
    • Record to two computers simultaneously
  • SoundGrid Extreme Server:
    • 8 GB of RAM onboard
    • Gigabyte GA-H81N motherboard
    • Intel Core i7 microprocessor
    • Latency as low as 0.8 ms
  • NETGEAR ProSafe GS108 v3 8-Port Gigabit Switch:
    • 8 ports
    • SoundGrid-tested and approved
    • Gigabit Ethernet switch

Waves eMotion LV1 MGB MADI Package Specifications:

  • DiGiGrid MGB Coaxial MADI Interface:
    • MADI Coaxial I/O (BNCs)
    • Supported sample rates: 44.1, 48, 88.2, 96 kHz
    • 112/128 channel I/O @ 48 kHz
    • 56/64 channel I/O @ 96 kHz
    • Support for 64- and 56-channel modes
    • Support for double wire (48k frame) and single wire (96k frame) @ 96 kHz
    • Clock Synchronization via (in fallback order): Word Clock input, MADI (port A), SoundGrid (SoE), Internal 1 SoundGrid port (RJ45)
    • Reset switch
    • Support for channel 57 controls – DiGiCo-specific, will be used to connect a DiGiCo stage rack and control it.
