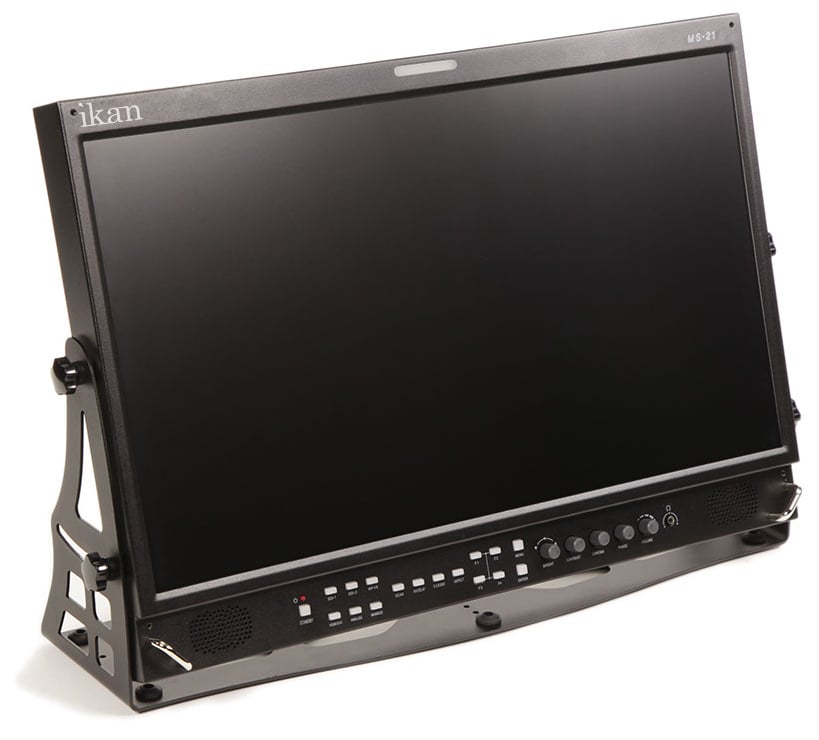

ikan Corporation MS21
21" LCD Studio Monitor

OUR PART #:  MS21-IKAN

The iKan MS21 is an affordable, full-featured, high-definition monitor that comes with a focus on precision color, luminance, and 3D LUT.
Learn More
Our Price: $2,099.00
List Price: $2,310.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

ikan Corporation MS21
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The iKan MS21 is an affordable, full-featured, high-definition monitor that comes with a focus on precision color, luminance, and 3D LUT.

HD-SDI - The MS21 monitor accepts 2 HD-SDI signals, and with the touch of a button on the front of the monitor, easily switches between camera signals for checking color between them. Plus, each input has it’s own loop-through port for sharing with your director, editor, or colorist. With same color representation between 2 or more units, this monitor works great for cooperative color correction.

Color Calibrated LCD with 3D LUT - The LCD panel is calibrated to replicate precise colors, while providing selectable color temperatures. Color temperature is one-touch user-adjusted. With stronger video processing, gamma correction and color temperatures are applied to reproduce precise colors and gradients with no stepping.

Waveform / Vectorscope - For monitoring luminance and color range. Onboard waveform and vectorscope let you monitor exact levels in each color channel, so you can get it right in the shot, to help save you time in post

In addition, the MS21 comes with a VESA mount on back to mount on a stand, and it can operate on 12v power when used in the field, plus you can monitor your audio with built-in speakers and headphone jack.

iKan MS21 Includes:

  • MS21 Unit
  • CD Manual
  • LCD Cleaning Cloth
  • Power Cable
  • Table Stand

iKan MS21 Features:

  • Resolution of 1920x1080
  • Dual HD-SDI Input with Loop Through
  • Waveform / Vectorscope
  • 8-16 Channel Audio Level Meter
  • False Color, Peaking, & Clip Guides
  • Closed Caption
  • Time Code Display
  • Tally Display
  • Heavy Duty Metal Construction

iKan MS21 Specifications:

  • Aspect Ratio: 16:9
  • Backlight: LED
  • Brightness: 250 cd/m²
  • Build Material: Steel
  • Built In Speaker: 2W x 2 Stereo
  • Color System: PAL/NTSC/SECAM (Auto-Detected)
  • Composite Input: 1.0Vp-p (with sync), NTSC/PAL
  • Contrast Ratio: 3000:1
  • Dimensions: 19.9" x 13.7" x 2.3"
  • Display Technology: TFT LCD with LED Backlight
  • HDMI: ~ 1080p(60)
  • Input Voltage: AC(100-230V, 50/60Hz)
  • Inputs:
    • (2) HD-SDI
    • (3) BNC Composite
    • (1) BNC Component
    • HDMI
    • DVI
  • Operating Temperature: 0°C ~ 40°C (32°F~104°F)
  • Outputs:
    • (2) HD-SDI
    • (3) BNC Composite
    • (1) BNC Component
  • Pixel Pitch: 0.24825mm
  • Power Consumption: 45W
  • Resolution: 1920 x 1080
  • Screen Size: 21.5"
  • Shipping Dimensions: 23.0" x 14.3" x 5.7" (584 x 363 x 144mm)
  • Shipping Weight: 17 lbs (7.71 kg)
  • UPC Code: 847983008155
  • Viewing angle: 178° H/178° V
  • Weight: 15.9 lbs (7.2 kg)
