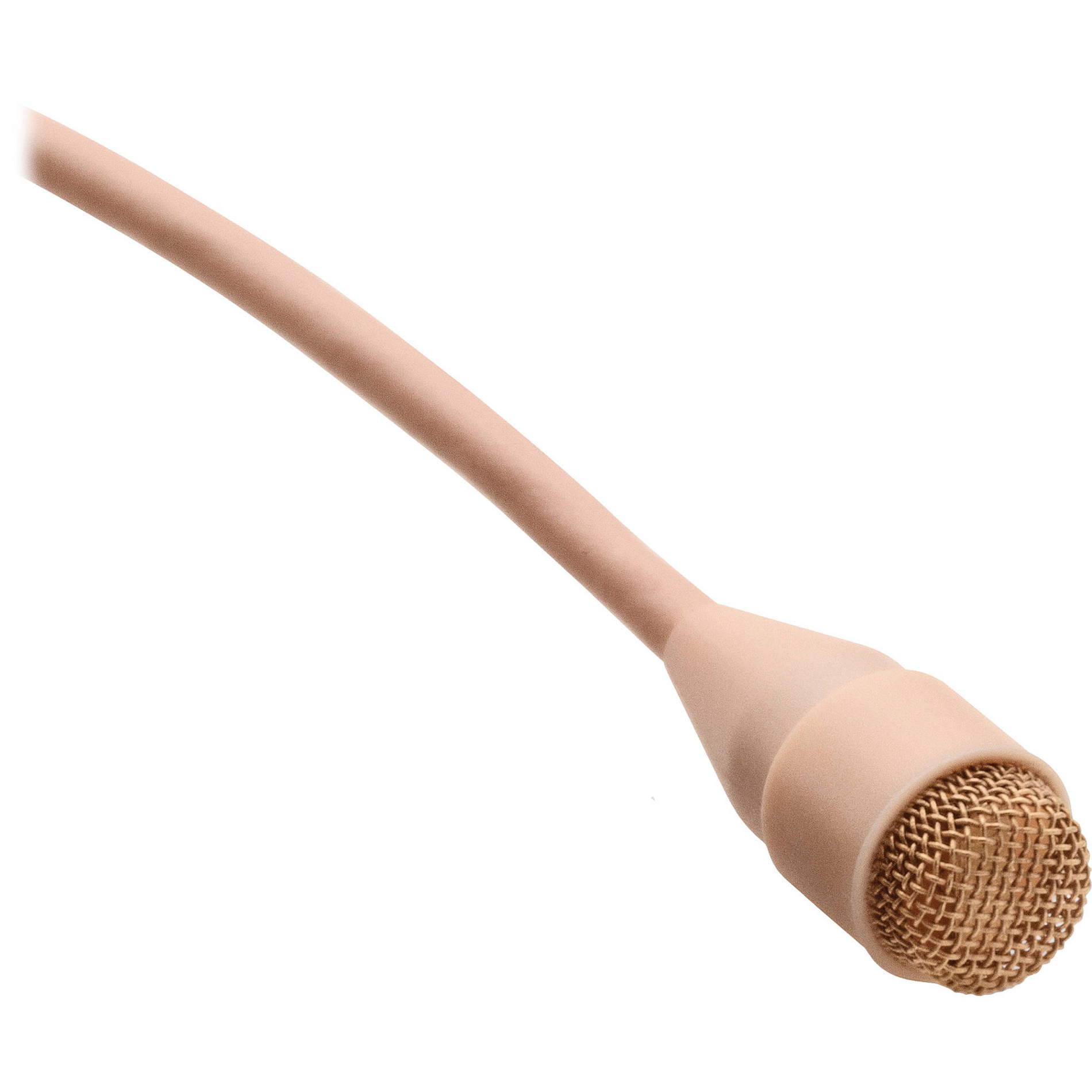

DPA Microphones SC4062-FA56
Low Sens. Mini Omni Microphone,TA5F Adaptor/Lectrosonics, Beige

OUR PART #:  SC4062-FA56

DPA Microphones' 4062 is acoustically identical to the 4060, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market.
Learn More
Our Price: $529.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones SC4062-FA56
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DPA Microphones' 4062 is acoustically identical to the 4060, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market. For a cordless microphone, choose from our adapter system or a hardwired connector.

Applications
The 4062 handles high sound pressure levels and is ideal for drums and brass.

Accessories
By changing the supplied grids (one high boost and one soft boost) you can acoustically modify the mic's response according to placement. Additionally, a range of accessories is available, such as different colored windscreens, clips and holders, extension cables, and power supplies.

Wireless microphones
A wide range of connection adapters makes it possible to use DPA miniature microphones with all professional UHF, VHF or digital wireless systems.

DPA has adapters for AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Micron, Mipro, Pastega, Telex ProStar, Ramsa, Samson, Sennheiser, Shure, Sony, Toa, Vega and other systems. Each adapter for your cordless microphone is guaranteed to perfectly mate to your system of choice.

Specifications
Offering great detail and resolution, the 4062s have a neutral sonic character and are very natural sounding. The 4062 has a very low noise floor, impressive sensitivity and can handle high SPLs. The noise floor of the DPA 4062 is 33 dB(A) re. 20 Pa and if powered correctly the microphone will be able to handle sound pressure levels up to 154 dB SPL before clipping occurs.

Related microphones
The DPA 4061, 4062 and 4063 are acoustically identical to the 4061 but have different SPL handling or sensitivity.

DPA Microphones SC4062-FA56 Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, +/- 2 dB:
    • Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
    • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz.
  • Sensitivity, nominal, +/-3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 33 dB(A) re. 20 Pa (max. 37 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
  • Signal-to-Noise Ratio, re. 1 kHz at 1 Pa (94 dB SPL): 61 dB(A)
  • Total harmonic distortion (THD):
    • < 1 % THD up to 123 dB SPL peak
    • < 1 % THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 90 dB
  • Max. SPL, peak before clipping: 154 dB
  • Output impedance: 30 - 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply:
    • For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
    • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance.
  • Connector: MicroDot
  • Color: Black, brown or beige
  • Microphone weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: Max. 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Operating temperature range: -40 C to 45 C (-40 F to 113 F)
  • Relative Humidity (RH): Up to 90%
