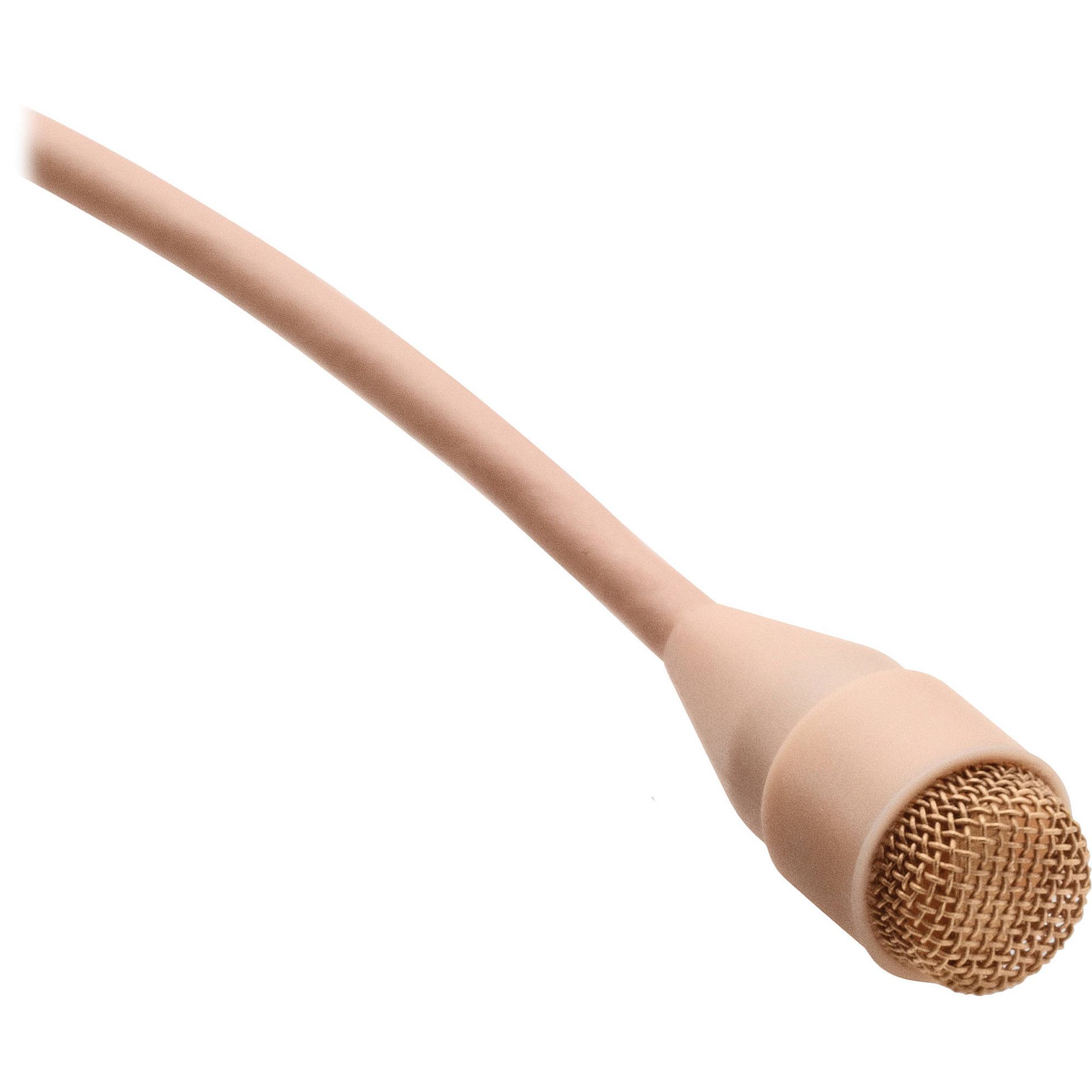

DPA Microphones SC4061-FA56
Standard Sens/Mini Omni Mic, TA5F Adaptor/Lectrosonics, Beige

OUR PART #:  SC4061-FA56

DPA Microphones' 4061 is acoustically identical to the 4060, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market.
Learn More
Our Price: $529.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones SC4061-FA56
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DPA Microphones' 4061 is acoustically identical to the 4060, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market. For a wireless microphone, choose between DPA's adapter system or a hardwired connector.

Applications
Excellent speech and vocal mics, the DPA miniatures are used by musicals and theaters worldwide. They are also great live and studio microphones for acoustic string instruments.

Accessories
Two grids are supplied (one high boost and one soft boost) and by changing these grids you can acoustically modify the microphone according to placement (chest, head etc.) Additionally, a wide range of accessories is available, such as windscreens, clips and holders, extension cables, and power supplies.

Wireless microphones
With a wide range of connection adapters you can use DPA miniature microphones with all professional wireless systems plus 48 V Phantom.

DPA has specific adapters for AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Micron, Mipro, Pastega, Telex ProStar, Ramsa, Samson, Sennheiser, Shure, Sony, Toa, Vega and other systems. Each adapter for your cordless microphone is guaranteed to perfectly mate to your system of choice.

Specifications
Offering great detail and resolution, the 4061s have a neutral sonic character and are very natural sounding. The 4061 has a very low noise floor, impressive sensitivity and can handle high SPLs. For full technical specs, please click the Specifications tab above.

Related microphones
The DPA 4060, 4062 and 4063 are acoustically identical to the 4061 but have different SPL handling or sensitivity. The 4061 is also included in stereo and instrument microphone kit solutions.

DPA SC4061-FA56 Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element withvertical diaphragm
  • Frequency range, +/- 2 dB:
    • Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
    • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz.
  • Sensitivity, nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 26 dB(A) re.20 Pa (max. 28 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max.40 dB)
  • Signal-to-Noise ratio, re. 1 kHz at 1 Pa (94 dB SPL):68 dB(A)
  • Total harmonic distortion (THD):
    • < 1 % THD up to 123 dB SPL peak
    • < 1 % THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 97 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: 30 - 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
    Power supply:
    • For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
    • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance.
  • Connector: MicroDot
  • Color: Black, beige, brown or white
  • Microphone weight: 7.5 g (0.26 oz) incl. cable andMicroDot connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: Max. 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressureproduces positive going voltage on MicroDot pin
  • Operating temperature range: -40 C to 45 C (-40 F to113 F)
  • Relative Humidity (RH): Up to 90%
