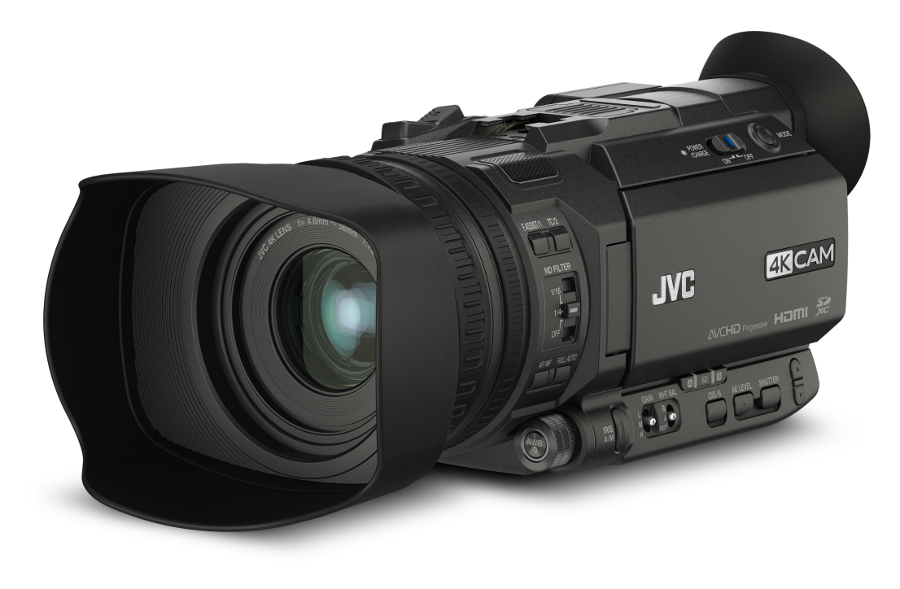

JVC GYHM170U-MIC-PROMO
4KCAM Compact Handheld Camcorder with Integrated 12x Lens & FREE Mic

OUR PART #:  GYHM170U-MIC-PROMO

The JVC GY-HM170 is a fully functional high performance 4K Ultra HD camcorder that's equally capable of shooting 4:2:2 Full HD at 50Mbps.
Learn More
Sale Price: $1,295.00
List Price: $1,995.00
You save 35%!
JVC GYHM170U-MIC-PROMO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

The JVC GY-HM170 is a fully functional high performance 4K Ultra HD camcorder that's equally capable of shooting 4:2:2 Full HD at 50Mbps. Its integrated 12x optical zoom lens and 4K CMOS sensor, deliver razor sharp 4K Ultra HD recordings directly to SDHC/SDXC memory cards. This model comes with a FREEJVC QAN0067-003 Microphone Unit.

NOTE: This is a special promotion for a limited time. For more information on this and other products, please contact your Sales Pro.

It can even record on 2 cards simultaneously for instant backup or extended recording time. Output live 4K UHD camera signals through the built-in HDMI connector. And its tiny size allows you to shoot in venues that may be unfriendly to larger cameras. Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.5-354mm). JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane. When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions.

Working with 4K has never been easier - simply insert an SDHC or SDXC (UHS-I Speed class3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera's live 4K signal. You can also play back recorded files directly from the camera. The GY-HM170 also downconverts UHD signals to standard HD for output through the built-in HDMI connector.

The GY-HM170 records 4:2:2 HD signals up to 60p at 50Mbps making it an ideal camera for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.

Dual SDHC/SDXC card slots make the GY-HM170 a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.

Lower resolution H.264 files (480x270p and 960x540p) may be recorded simultaneously with full HD files. These files are significantly smaller than HD files, and thus are very suitable for immediate posting to the web. A file recorded in the 960 x 540 mode is approximately 1/10th the size of a full HD file recorded at 35 Mbps, and therefore takes a fraction of the time to post. The smaller files may be quickly imported to an iPad for easy editing using iMovie or Pinnacle Studio. Transporting video to the web or back to the studio has never been faster.

JVC GY-HM170U Includes:

  • JVC GY-HM170U 4k camcorder
  • One (1) XLR Audio Handle
  • One (1) BN-VF823 Battery
  • One (1) AC Adapter
  • One (1) QAN0067-003 Microphone unit

JVC GY-HM170U Features:

  • Single 1/2.3" CMOS image sensor with 12.4 million pixels
  • High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
  • Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
  • 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC (UHS-I Speed class 3) card
  • 4:2:2 Full HD recording at 50 Mbps (24-60p)
  • Live 4K UHD output via HDMI connector
  • 2 position ND filter (1/4,1/16)
  • Built-in stereo microphone
  • Dual SDHC/SDXC slots enable dual, backup and continuous recording
  • 3.5" color LCD display (920K pixel) with smart focus assist function
  • 0.24" color viewfinder (1.56M pixel) with smart focus assist function
  • Wired remote control supported
  • 9 user button assignable functions

JVC GY-HM170U Specifications:

  • General:
    • Power: DC 12V (AC adapter), DC 7.2V (Battery)
    • Power Consumption: Approx. 8.1W (with VF in 4K REC mode, default setting)
    • Weight: Approx. 1.11kg (including battery) / 2.45 lbs.
    • Dimensions (WxHxD): 6.02" x 4.41" x 11.77" (153 x 112 x 299 mm)
    • Operation temperature: 32°F to 104°F (0°C to 40°C)
    • Storage temperature: 14°F to 122°F (-20°C to 50°C)
    • Operating humidity: 30% to 80%
    • Storage humidity: under 85%
  • Camera:
    • Image Sensor:
      • 1/2.3" Back Side Illuminated CMOS
      • Total 12.4M pixels
  • Synchronizing: Internal synchronization
  • Stabilizer: Optical image stabilizer
  • Shutter speed: 1/4~ 1/10000
    Lens:
    • F1.2 (wide) to F3.5 (tele)
    • f=4.67mm to 56.04mm
    • 35mm equivalent: 29.5mm to 354mm
  • Filter diameter: 62mm
  • Gain: 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux (30, 36 dB), AGC
  • ND filter: none , 1/4, 1/16
  • LCD display: 3.5" 920 k pixels, 16:9
  • Viewfinder: 0.24" 1.56 M pixel, 16:9
  • Video / Audio Recording:
    • Recording media: 2x SDHC/SDXC memory card (4K: UHS-1 U3, HD: 50Mbps Class10, MOV HD Class 6 AVCHD Class 4)
  • Video recording:
    • Video codec: MPEG-4 AVC/H.264 (4K/HD) ,AVCHD(HD/SD)
    • File format : MOV(H.264), MTS(AVCHD)
  • 4K(H.264):
    • NTSC setting: 3840 x 2160/29.97p, 23.98p
    • PAL setting: 3840 x 2160/25p
  • HD(H.264):
    • NTSC setting:
      • XHQ 422 mode: 1920 x1080/59.94p.29.97p, 23.98p (50Mbps)
      • XHQ mode: 1920x1080/59.94p,29.97p, 23.98p (50Mbps),1920x1080/59.94i,29.97p, 23.98p (35Mbps) 1280x720/59.94p (35Mbps)
    • PAL setting:
      • XHQ mode: 1920 x 1080/50p (50Mbps)
      • XHQ mode: 1920x1080/50p,50i,25p (50Mbps),1920x1080/50i,25p (35Mbps), 1280x720/50p (35Mbps)
  • AVCHD:
    • NTSC setting:
      • Progressive mode(Max 28Mbps):1920 x 1080/59.94p
      • HQ mode(24Mbps): 1920 x 1080/59.94i, SP mode (17Mbps): 1920 x1080/59.94i
      • LP mode(9Mbps): 1440 x 1080/59.94i, EP mode (5Mbps): 1440 x1080/59.94i
    • PAL setting:
      • Progressive mode (Max 28Mbps):1920 x 1080/50p
      • HQ mode (24Mbps): 1920 x 1080/50i, SP mode (17Mbps): 1920 x1080/50i
      • LP mode (9Mbps): 1440 x 1080/50i, EP mode (5Mbps): 1440 x1080/50i
  • SD(AVCHD):
    • NTSC setting: 720 x 480/59.94i
    • SD(H.264)
    • NTSC setting: 720 x 480/59.94i
  • Proxy(H.264):
    • NTSC setting: HQ mode (3Mbps): 960 x 540/29.97p, 23.98p, LP mode (1.2Mbps): 480 x 270/29.97p, 23.98p
    • PAL setting: HQ mode (3Mbps): 960 x 540/25p, LP mode (1.2Mbps): 480 x 270/25p
  • Audio recording: LPCM 2ch, 48kHz/16-bit (4k/HD/SDMOV)), AC3 2ch (AVCHD), µlow 2ch (Proxy)
  • Interface:
    • Video output:
      • AV output (3.5mm mini jack x1)
      • HDMI output x1
    • Audio input: XLR x2 (MIC,+48V/LINE), 3.5mm mini jack x1
    • Audio output: AV output (3.5mm mini jack x1)
    • Headphone: 3.5mm mini jack x1
    • Remote: 2.5mm mini jack x1
    • USB: DEVICEx1(Mass storage)
