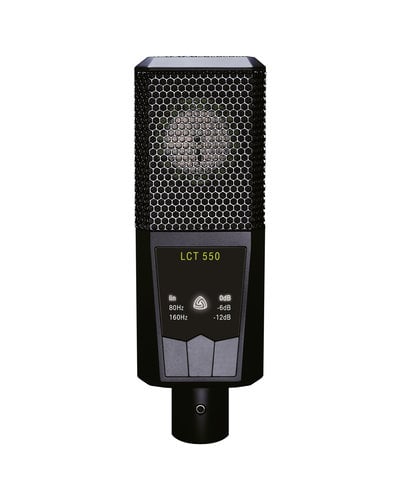

Lewitt LCT 550
Large-Diapragm Condenser Microphone with 0 dB Self-Noise

OUR PART #:  AMS-LCT-550

The first and only large-diaphragm studio microphone ever to attain 0 dB (A) self-noise*...
Learn More
Lewitt AMS-LCT-550 - Full Package
Lewitt AMS-LCT-550 - Windscreen Detail
Lewitt AMS-LCT-550 - Closeup View of Shock Mount

Click a thumbnail to see more images. (7 total)

Our Price: $699.00
List Price: $999.99
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lewitt LCT 550
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The first and only large-diaphragm studio microphone ever to attain 0 dB (A) self-noise*, Lewitt's LCT 550 makes it possible to capture even extremely weak signals with great precision and detail. The Austrian-developed LCT 550 sets new standards in terms of more than just self-noise. Its 140 dB (A) dynamic range of guarantees the best-possible results – even in challenging environments. It has 3 pre-attenuation levels (0 dB, -6 dB and -12 dB) that increase maximum SPL to as high as 155 dB (A). It also offers a clipping history as well as an auto-attenuation mode that automatically switches to the next level of attenuation if the signal is too strong. For the elimination of structure-borne noise, there are 2 high-pass filters: 80 Hz, 12 dB/octave and 160 Hz, 6 dB/octave. Manufacturing tolerances have been minimized thanks to highly precise calibration of the capsule and the electronics – meaning any 2 microphones from this series, set identically, will always form a matched pair at +/- 0 dB.

*0dB-A electronics only, 3 dB (A) according to IEC 60268-1 due to Brownian motion (in simple terms: the sound caused by the movement of air molecules ...)

Ideal applications:

  • Classical instruments and ensembles
  • Ambitious stereo recording techniques (XY, ORTF, AB, etc.)
  • Vocals & background vocals
  • Acoustic instruments (strings, guitars, piano)
  • Overhead miking (drums & percussion)

Lewitt LCT 550 Includes:

  • LCT 550 microphone
  • LCT 40 SHx shock mount
  • LCT 40 Wx foam windscreen
  • DTP 40 Lb cushioned leatherette bag
  • Durable carry case

Lewitt LCT 550 Features:

  • Highly precise calibration of capsule and electronics—any 2 microphones from this series will always form a matched pair at +/- 0 dB
  • Precise transient response thanks to the 3-micron-thin, gold-layered, low-mass, 1" Mylar diaphragm
  • Extraordinary sensitive: capture even extremely weak signals with great precision and detail
  • Cardioid polar pattern for effective rear sound rejection
  • 0 dB (A) self-noise from electronics and circuitry *
  • 140 dB dynamic range Max. SPL of 155 dB (A)
  • Immune to electromagnetic interference thanks to transformerless preamplifier circuitry
  • Illuminated user interface for quick and easy handling in dark environments
  • Noiseless pushbuttons for attenuation and low-cut selection
  • Automatic Attenuation and Clipping History mode
  • Rugged zinc die-cast body
  • Internal shock mount for maximum reduction of structure-borne noise
  • Corrosion-resistant gold-plated 3-pin XLR output connector

Lewitt LCT 550 Specifications:

  • Acoustical operating principle: pressure gradient transducer, externally polarized
  • Diaphragm: 3 micron gold-sputtered Mylar
  • Transducer Ø: 1" (25.4mm)
  • Polar pattern: Cardioid
  • Frequency range: 20 Hz to 20 kHz
  • Sensitivity: 36 mV / Pa (-29 dBV), +/- 0 dB @ 1 kHz
  • Signal / noise ratio: 91 dB (A)
  • Equivalent noise level: 0 dB (A) self-noise from electronics and circuitry
  • Dynamic range of FET mic. Amp.: 140 dB (A)
  • Max. SPL for 0.5 % THD: 143 dB, 0 dB pre-attenuation
  • Pre-attenuation pad, switchable:
    • 0
    • -6 dB
    • -12 dB
  • Low cut filter:
    • Linear
    • 80 Hz (12 dB/oct)
    • 160 Hz (6 dB/oct)
  • Rated impedance : 150 ohms
  • Rated load impedance: 1,000 ohms
  • Supply voltage: 48 V +/- 4 V
  • Current consumption: 5.5 mA
  • Enclosure: Zinc die cast
  • Connector: Gold-plated 3-pin XLR
  • Dimensions: 6.22" x 2.04" x 1.42" (158 x 52 x 36mm)
  • Net weight: 14.9 oz. (425 g)
