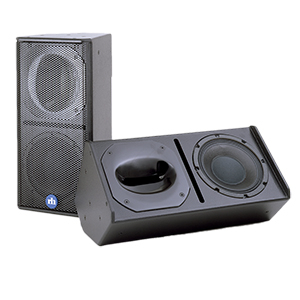

Renkus-Heinz TRX81/12-DF
2-Way, 8" Passive Speaker, 120x60

OUR PART #:  TRX81/12-DF

TRX Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality.
Learn More
Selected Model Price: $969.03
List Price: $1,234.00
Save up to 21%!
Write the first review.
Renkus-Heinz TRX81/12-DF
Select a Model: (shipping times are approximate)

Related Products

TRX Series loudspeakers employ advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. Cutting-edge driver technology and unique innovations like their Complex Conic horns deliver natural sounding music and intelligible speech.

Versatile enclosure designs, combined with a wide range of mounting options and associated hardware, provide unrestricted flexibility for both portable and installed applications. Wherever audiences and operators demand superior performance and ease of use, TRX Series loudspeakers are the choice for exceptional value.

The TRX81 features an 8-inch Heavy-Duty LF driver with carbon fiber cone and a 1-inch Extended Range Titanium HF Driver. All TRX Series systems are non-powered. TRX Series loudspeakers are suited for virtually any application where size is a critical issue and high sonic output is required. They are also ideal for many and front fill applications, as they mount inconspicuously in walls or ceilings, under and over balconies, etc. In addition, these speakers will work well in foreground music systems (shopping malls, retail stores, offices) or in multi-channel playback systems in dance clubs (with optional subwoofers).

Renkus-Heinz TRX81/12-DF Includes:

  • 12-point Universal Mounting Hardware
  • Omnimount Series 60 nut-plate
  • U-bracket
  • Tripod socket & handle

Renkus-Heinz TRX81/12-DF Features:

  • Miniaturized Design: Outstanding, full-range 80 Hz to 20 kHz performance in a extremely compact, space-saving design.
  • Exclusive Complex Conic Design: Complex Conic Horn provides superior pattern control with low distortion.
  • Choice of Coverage Pattern: Complex Conic Horn provides smooth 120º by 60º coverage, may be rotated 90º within cabinet.
  • 1" Extended Range Titanium HF Driver: Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
  • Heavy-Duty 8-inch Woofer: With carbon fiber cone easily handles 200 Watts of program power.
  • Built-in Crossover: Eliminates need for a separate electronic crossover and bi-amplification.

Renkus-Heinz TRX81/12-DF Specifications:

  • Sensitivity: 94 dB (1W/1m) @ 500 Hz
  • Max SPL: 117 dB Pgm, 120 dB Peak
  • Dispersion: 120° H x 60° V*
  • Freq. Response: 80 Hz to 20 kHz
  • HF Driver: 1" SSD102-8 Titanium driver, 15 W RMS, 30 W Pgm
  • LF Driver: 8" model SSL8-2 woofer, 2" VC, treated fiber cone; 100 W RMS, 200 W Pgm
  • Crossover Point: 2.4 kHz
  • Power Rating: 200 W Pgm @ 8 Ohms
  • Enclosure: Multi-ply hardwood, perforated metal grille
  • Connectors: crew terminals or Neutrik 4-pin connectors
  • Finish:
    • Black, White or Natural (unfinished) paint
    • Custom color optional
    • Weather-resistant optional (TuffTex (black only) or Fiberglass (custom colors available))
  • Dimensions (HxWxD): 19 3/4" x 9 3/4" x 9" (50.2 cm x24.8 cm x 22.9 cm)
  • Net Weight: 25 lbs. (11.3 kg)
