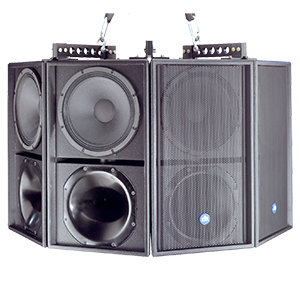

Renkus-Heinz T12/6-4(T)
TRX121 Loudspeaker Cluster

OUR PART #  T12/6-4(T)

Call for price! Not available online.
List Price: $9,034.00

Select model: (shipping times are approximate)

The Renkus-Heinz T12 Series Reference Point Arrays use advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. The process produces fully integrated electro-acoustic systems with signal processing, amplification, flying hardware and cabling all optimized to deliver superior fidelity and coverage.

Wherever the superior performance demanded by the audiences and operators cannot be met with a single loudspeaker, T12 Series Reference Point Arrays are the choice for unequalled value.

Ideal Applications:

  • Virtually any application where outstanding sonic performance is required and sound level/coverage needs cannot be satisfied with a single loudspeaker
  • Sound reinforcement systems in Houses of Worship, Performing Arts Centers, Sports Arenas, Theaters and other similar venues
  • Large Audiovisual playback systems

Renkuz-Heinz T12/6-4(T) Includes:

  • 4 TRX121T/6 Full-range loudspeakers
  • 1 RHANG12-4 hanging hardware
  • Interconnecting cables, system preparation & testing

Renkuz-Heinz T12/6-4(T) Features:

  • Compact 2-Way Reference Point Arrays: RPA arrays provide "plug 'n play" systems assuring consistent performance. Each RPA is designed as a complete system assuring optiumum performance
  • Choice of Coverage Patterns: Choose between smooth, virtually lobe-free 80°, 120° and 160° Horizontal by 60° Vertical coverage patterns
  • Full-range 65 Hz to 18 kHz performance
  • Complex Conic Design: Provides constant beamwidth/directivity without the problems of conventional rectangular horns
  • TRAP (True Array Principle) Design: Eliminates interference between adjacent loudspeakers that combine seamlessly to produce a phase-aligned wavefront virtually free of lobing

Renkuz-Heinz T12/6-4(T) Specifications:

  • Frequency Response: 65 Hz to 18 kHz
  • Coverage: 160° H x 60° V
  • Max. SPL: 132 dB Pgm, 135 dB Peak
  • Dimensions (HxWxD): 26 1/2" x 45 1/2" x 21 1/2" (67.3 cm x 115.6 cm x 54 cm)
  • Net Weight: 184 lbs. (83.5 kg), with hanging hardware
  • TRX121T/6 Loudspeaker(s):
    • Sensitivity: 99 dB (1W/1m)
    • Max SPL: 126 dB program, 129 dB peak
    • Dispersion: 40 °H by 60 °V
    • Frequency Response: 65 Hz to 18 kHz
    • HF Driver: 1" SSD202-8 driver, 8 Ohms; 40 W RMS, 80 W program
    • LF Driver: 12" model SSL12-12, 250 W RMS @ 8 Ohms, 500 W program
    • Enclosure: Multi-ply hardwood, perforated metal grille
    • Power: 500 W program at 8 ohms
    • Connectors:
      • Screw terminals & looping Neutrik 4-pin
      • SpeakOn style connectors

Renkus-Heinz T12/6-4(T)
TRX121 Loudspeaker Cluster

OUR PART #  T12/6-4(T)

Product Information:

The Renkus-Heinz T12 Series Reference Point Arrays use advanced technology and application-driven engineering to bring live sound closer to the ultimate reference point: reality. The process produces fully integrated electro-acoustic systems with signal processing, amplification, flying hardware and cabling all optimized to deliver superior fidelity and coverage.

Wherever the superior performance demanded by the audiences and operators cannot be met with a single loudspeaker, T12 Series Reference Point Arrays are the choice for unequalled value.

Ideal Applications:

  • Virtually any application where outstanding sonic performance is required and sound level/coverage needs cannot be satisfied with a single loudspeaker
  • Sound reinforcement systems in Houses of Worship, Performing Arts Centers, Sports Arenas, Theaters and other similar venues
  • Large Audiovisual playback systems

Renkuz-Heinz T12/6-4(T) Includes:

  • 4 TRX121T/6 Full-range loudspeakers
  • 1 RHANG12-4 hanging hardware
  • Interconnecting cables, system preparation & testing

Renkuz-Heinz T12/6-4(T) Features:

  • Compact 2-Way Reference Point Arrays: RPA arrays provide "plug 'n play" systems assuring consistent performance. Each RPA is designed as a complete system assuring optiumum performance
  • Choice of Coverage Patterns: Choose between smooth, virtually lobe-free 80°, 120° and 160° Horizontal by 60° Vertical coverage patterns
  • Full-range 65 Hz to 18 kHz performance
  • Complex Conic Design: Provides constant beamwidth/directivity without the problems of conventional rectangular horns
  • TRAP (True Array Principle) Design: Eliminates interference between adjacent loudspeakers that combine seamlessly to produce a phase-aligned wavefront virtually free of lobing

Renkuz-Heinz T12/6-4(T) Specifications:

  • Frequency Response: 65 Hz to 18 kHz
  • Coverage: 160° H x 60° V
  • Max. SPL: 132 dB Pgm, 135 dB Peak
  • Dimensions (HxWxD): 26 1/2" x 45 1/2" x 21 1/2" (67.3 cm x 115.6 cm x 54 cm)
  • Net Weight: 184 lbs. (83.5 kg), with hanging hardware
  • TRX121T/6 Loudspeaker(s):
    • Sensitivity: 99 dB (1W/1m)
    • Max SPL: 126 dB program, 129 dB peak
    • Dispersion: 40 °H by 60 °V
    • Frequency Response: 65 Hz to 18 kHz
    • HF Driver: 1" SSD202-8 driver, 8 Ohms; 40 W RMS, 80 W program
    • LF Driver: 12" model SSL12-12, 250 W RMS @ 8 Ohms, 500 W program
    • Enclosure: Multi-ply hardwood, perforated metal grille
    • Power: 500 W program at 8 ohms
    • Connectors:
      • Screw terminals & looping Neutrik 4-pin
      • SpeakOn style connectors
