Enttec 73541
Pixie LED Strip Driver 5V (55 WATTS)

OUR PART #:  73541

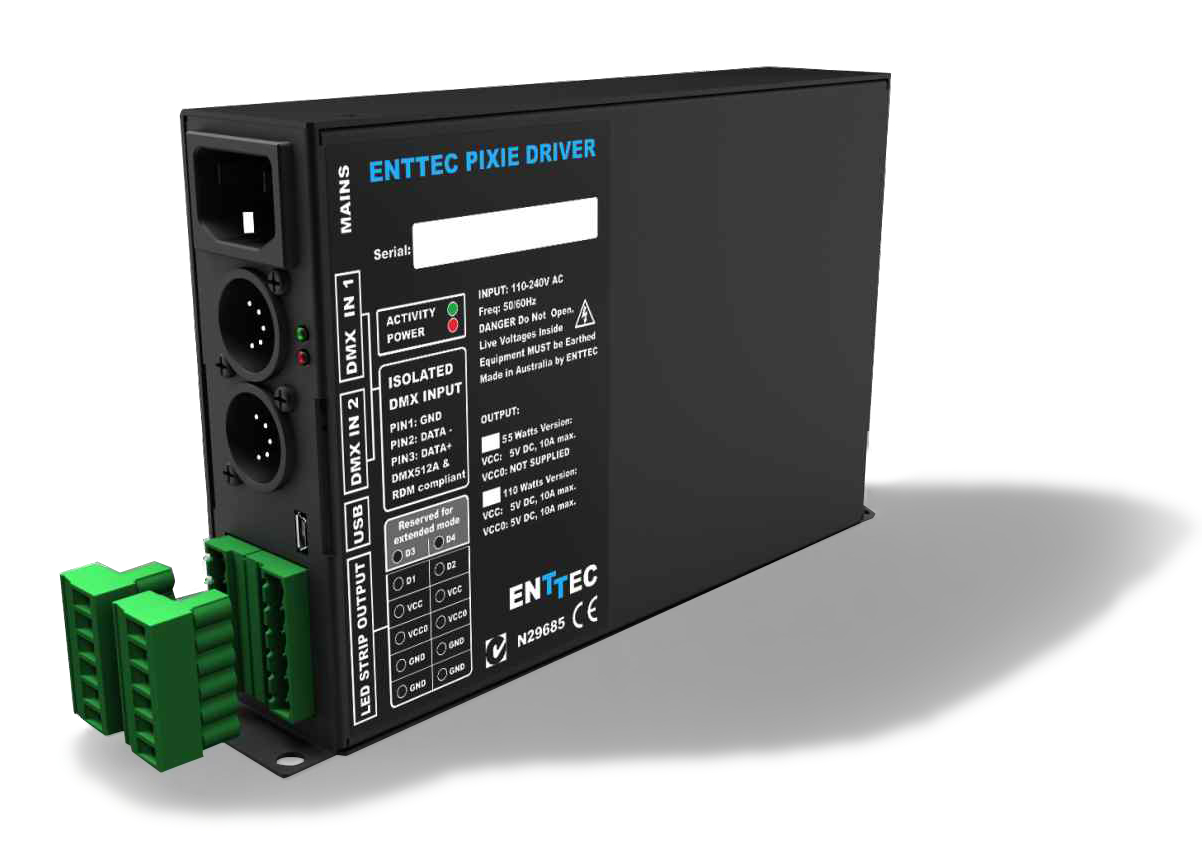

The Enttec 73541 is an all-in-one 5Volt/55Watt Pixie Strip Driver designed to work with Enttec's DMX/USB Pixel Strips ( sold separately ).
Learn More
Our Price: $209.00
List Price: $220.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Enttec 73541
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Enttec 73541 is an all-in-one 5Volt/55Watt Pixie Strip Driver designed to work with Enttec's DMX/USB Pixel Strips (sold separately).

Enttec 73541 Pixie Strip Driver Features:

  • Easy Pixel Strip Control - Pixel Strip is the same as common RGB LED strips, but each pixel (dot) is individually controllable, allowing you to create amazing visual effects. The new generation of pixel strips has more density at a lower cost, but controlling them has remained problematic. That's where the Pixie Driver comes in. It solves that problem with an ALL-in-one approach featuring driver and power supply combined. Connect pixel strip, DMX, plus power, and you can have the ability to create amazing effects.
  • High Density - This 55 Watt Pixie Driver can control up to 300 RGB LEDs from one source (USB, so you need less hardware to control more strips. Using a standard 30 LEDs per meter strip, that's 20 meters of LED strip from one compact device.
  • Compatible with WS2811, WS2812, & WS2812b - The next generation of LED chips (WS2812) have an onboard driver, making them more suitable in more cases, and allowing tighter pitch-up to 7.5mm. The Pixie driver can drive up to 300 pixels from its DMX ports, and more from USB.
  • Live or Standalone - With onboard memory, the Pixie Driver can replay a pre programmed sequence or work in live mode from its DMX ports or through USB using Pro Manager software. Outstanding effects are possible by using the Pixie Driver in standalone mode where you would normally use RGB Strips.
  • Smallest in its Class - The Pixie Driver is the smallest all-in-one device in its class, thanks to its overall size of 215mm x 129mm x 42.7mm. Mounting of 8 units in a 3RU high enclosure is possible via a rack mount frame, giving un-paralleled density of Pixel Strip driving.
  • Other Features:
    • Drives 2 DMX universes worth of PIXEL LEDs
    • Onboard 5V DC power supply with 55 watts output power
    • DMX512 controllable
    • USB configurable
    • Supports RGB pixel strips (sold separately)
    • Stand-alone test output sequences
    • Art-Net to USB using PRO-Manager App (contact your Sales Pro for more information)
    • Power and output status LED indicators
    • Scalable design for large projects

Enttec 73541 Pixel Strip Driver Specifications:

Physical:

  • Dimensions: 42.7mm H x 215mm W x 128.5mm D

Note: All information and specifications subject to change without notice.
