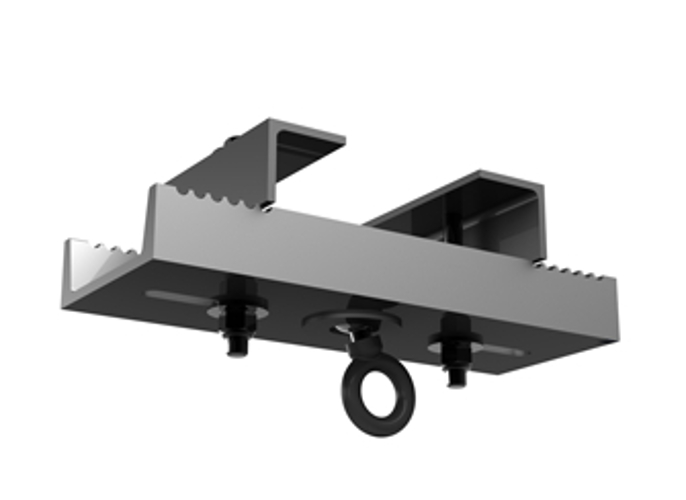

ATM/Adaptive Technologies Gimbaled Style Beam Clamp
12-18" 1 TON

OUR PART #:  BC12-18-GE

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure to provide a safe and predictable method of rigging grids, clusters...
Learn More
Our Price: $480.00
List Price: $600.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ATM/Adaptive Technologies Gimbaled Style Beam Clamp
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Standard, pre-engineered channel style beam clamps anchor to a building’s beam structure to provide a safe and predictable method of rigging grids, clusters, arrays and other objects.

The Gimbaled Style beam clamp is unique in that it offers a gimballed swivel eye that accommodates up to 20° of off-axis side loading in any direction without losing any of its working load.

The gimbal feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc.

The body of the clamp mounts flush underneath the building’s I-beams and adjusts to accommodate beam flange widths between 12” and 18”.

ATM Flyware Beam Clamp Includes:

  • 1 pc 22” Channel
  • 2 Lock Angle Brackets
  • 1 pc Eyebolt, 5/8”
  • 1 pc Swivel Ball
  • 5 pcs Swivel Ball
  • 2 pcs Nyloc & Nut, 5/8”-11”
  • 1 pc Hex Nut, 5/8”-11”
  • 2 pcs Hex Bolt, 5/8”-11”- 5.5” Long
  • 2 pcs 1/4” spacer
  • 2 pcs 1/2” spacer
  • 2 pcs 1.00” spacer

ATM Flyware Beam Clamp Features:

  • For beam flanges 12" to 18"
  • Accomadates thicker beam flanges
  • Flange spacers included
  • Gimballed hang point swivels 360°H
  • ang point retains same working load limit from0°-20°
  • Wide body provides extra clamp stability.
  • Non-loosening fasteners.

ATM Flyware Beam Clamp Specifications:

  • Materials: Alloy Steel Components
  • Width: 12” to 18” (305mm to 457mm)
  • Color: Black
  • Design Factor: 5:1
  • Vertical working load limit :2000 lbs (908 Kg.)
  • 20° working load : 2000 lbs (908 Kg.)
  • 45° Working Load: 1200 lbs (908 Kg.)
  • 90° Working Load : Do Not Exceed 65°
