Product Overview

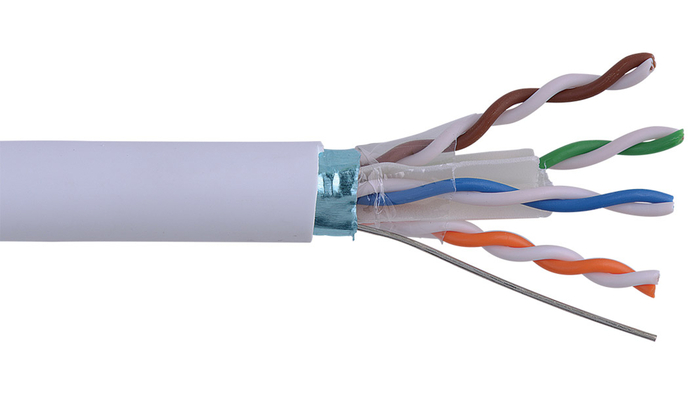

Liberty AV Solutions White Category 6 F/UTP EN Series 23 AWG 4 Pair Shielded Cable Reel. Third party verified to ANSI/TIA-568C Category 6 performance. Manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.
Liberty AV Solutions 24-4P-P-L6SH Features:
- 23 AWG Solid Bare Copper Conductors
- FEP, Fluorinated Ethylene Propylene (Teflon (TM))
- Color Striping on white conductors
- Varying lay twisted pairs cabled on a common axis
- 100% Foil shield with foil and drain facing in
- Ripcord under the jacket
- PL-PVC, Plenum rated Polyvinyl Chloride Alloy Jacket
- Third Party (UL, ETL) certified to Category 6 performance
- NEC Rated CMP, CEC Rated CMP, CMG FT6, RoHS Compliant
- 1000 Foot Spools Standard
Liberty AV Solutions 24-4P-P-L6SH Specifications:
- Conductor:
- 23 AWG
- Solid annealed bare copper conductors
- Diameter: 0.0226" (0.574 mm)
- Electrical:
- DC resistance: = 28.60 O / 1000’ | 93.8 O/KM
- DCR Unbalance: = 5.0%
- Capacitance: 17.0 pF/FT | 56.0 pF/M
- Impedance: 100 ± 15 O
- Propagation Delay (Skew): 45ns/100m MAX
- Velocity of Propagation: 71%
- Voltage rating: 300V
- Pair to ground capacitance Unbalance: = 330 pF/100M
- Insulation
- Fluorinated ethylene propylene
- Wall thickness: 0.0115" (0.2921 mm)
- Diameter: 0.045" (1.138 mm)
- Regulatory
- ANSI/TIA-568-C Category 6
- NEC: CMP 75°C
- CEC: CMP FT6 60°C
- EU RoHS-2 2011/65/EU Compliant
- Color Code
- Pair 1: Orange, White/orange stripe
- Pair 2: Blue, White/blue stripe
- Pair 3: Green, White/green stripe
- Pair 4: Brown, White/brown stripe
- Packages
- Reel: 1000’ | 305M
- Weight: 36 Lbs/1000’ | 54 Kg/KM
- Assembly
- Pairs twisted in varying lay lengths
- Each pair in a fluoropolymer X separator interstice
- Installation
- Pull Tension: 25 Lbs | 111 N
- Bend radius: 2.90" | 74mm unloaded
- Bend radius: 5.80" | 148mm loaded
- Plenum cable should be conditioned at room temperature for 24 hours prior to installation and never installed below 32°F | 0° C ambient temperature
- Construct: 100% Polyester tape binder
- Applications
- Plenum LAN systems 10/100/1000BaseT
- Plenum Phone, Voice, Video over IP and security video
- Plenum BALUN support and media infrastructure
- Plenum Infrared, audio
- Shield
- 100% aluminum/polyester tape foil in
- 24 AWG solid tinned copper drain
- Performance
- LAN: 300 ft
- Passive Baluns up to 2500 ft
- Jacket
- Plenum rated polyvinyl chloride
- Colors: White, Yellow
- Wall thickness: 0.023" (0.584 mm)
- Diameter: 0.290" (7.37 mm)
