Product Overview
Delivering a range of impressive functionality and features, the Mipro MA-708 is an undisputed market leader in its class. MA-708 provides unparalleled audio performance and craftsmanship. The durable 1-piece speaker cabinet houses a highly efficient class-D amplifier that drives high-sensitivity 2-way loudspeakers, employing a limiter circuit that reduces distortion and increases intelligibility. The overall system design delivers clear, powerful sound. It's an ideal public address solution for medium to large audiences.
Applications
- School sports events and marching bands
- Places of worship
- Large meetings and public gatherings
- Presentations, seminars and meetings
- Shopping center presentations and promotions
- Aerobic & fitness centers
- Parades & fetes
- Street performers
- Park and recreational facilities
- Emergency and rescue situations
- Weddings & funeral services
- Public auctions
Includes
- MA-708PADB (5AH) Unit
- 8CD0036 - CD/USB Player Module with Remote Control for MA-505, MA-708 & MA-808
- ACT-32H (5A) - Cardioid Condenser Handheld Transmitter Microphone (LCD) (5A Band)
- MRM-70B (5A) - Plug-in UHF 16-Channel Diversity Single Receiver Module (5A Band)
Features
- Lightweight Class-D amplifier produces 190W audio output
- 1" titanium compression driver & 8" woofer
- Master volume with "Memory" and "Standard" mode options
- Up to 4 optional diversity receiver modules with 16 auto-scannable frequencies
- One-touch Scan & ACT sync button for fast and easy channel set-up
Specifications
- Portable PA:
- Max. Power Output: 190 Watts
- Amplifier: Class D
- Sensitivity: Typical: 89 dB; Maximum: 108 dB
- T.H.D.: < 1%
- Frequency Response: 50 Hz~18 kHz
- Speaker: Tweeter: 1" Compression Driver
- Bass: 8" Woofer
- Coverage: H 80° × V 60°
- Audio Inputs:
- Wired: XLR × 1 & 6.3 mm (1/4") × 1
- Wireless: Up to 4 wireless microphones
- Line-In: Unbalanced RCA jack
- Audio Output: Unbalanced Line RCA jack
- Bluetooth Connectivity: Yes
- Extension Speaker: 6.3 mm (1/4") Phone jack
- Master Volume Control: Manually or Wirelessly via ACT-32HR
- Controls: Tone, Voice priority & Echo on wireless mics
- Storage: 2 handheld or bodypack transmitters
- Installation: Speaker stand, flat surface or retractable handle & wheels
- Power Supply: AC: Built-in 100~240V AC switching power supply (Max. Power Consumption: 220W)
- DC & Battery: 24~32V DC, 12V/4.5AH rechargeable gel cell battery (MB-70 × 2) or optional MB-80 × 2 (sold separately)
- Charge Time: Up to 8 hours (automatic charging management)
- Standby Time: Up to 7 hours
- Battery Indicator: 4-level indicator (25/50/75/100%)
- Physical:
- Color: Black or white option
- Dimensions: 13.2 W × 21.5 H × 12.8" D (336 × 545 × 325mm)
- Weight (battery included): Approx. 36 lbs (16.3 kg)
- Max. Receivers: Up to 4 (MRM-70B × 2 + MRM-72B × 1; additional receiverssold separately)
- Microphone: MM-107 Wired Dynamic Microphone
- Interlinking Transmitter: MTM-92
- Installation: Plug-in Module
- Antenna: Built-in
- Patents & Approvals:
- Patented. Telecom & safety regulations approved.
Notes:
Bluetooth is not yet available in all countries at this time.

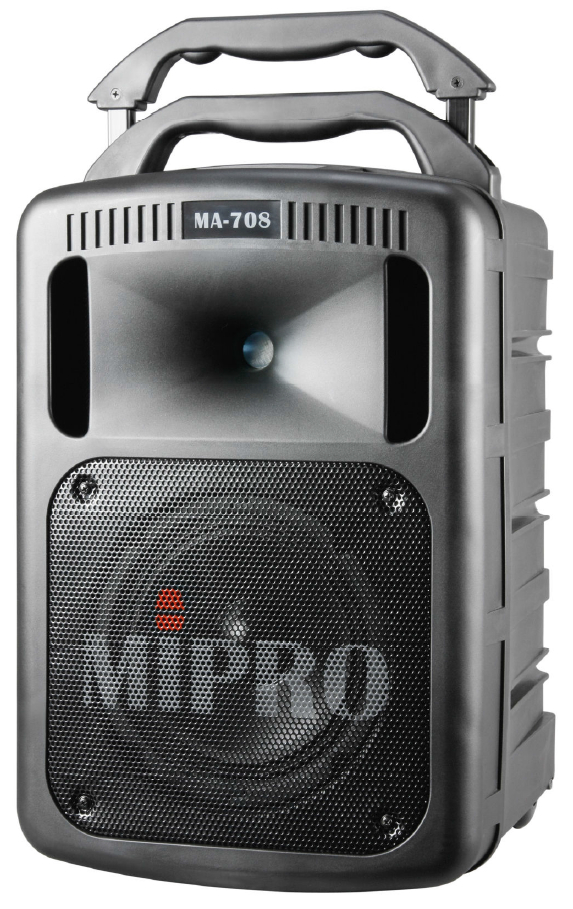

Speaker stand shown in picture above is sold separately.
Refer to actual product in the event of product description discrepancy. Frequency range and maximum deviation comply with the regulations of different countries. All information subject to change without notice.
