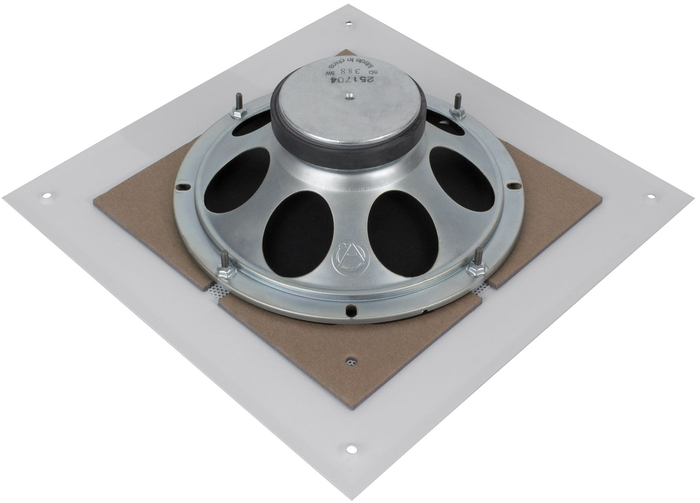

Atlas IED A8S 8" IP Extension Speaker with Square Baffle

The A8S is meant to be used in conjunction with an Atlas Sound IP speaker, models I8X(-CK) in applications where two speakers are required but expense is a factor - thus serving as a cost-effective solution to extend the coverage of an IP speaker.

The Atlas Sound A8S incorporates the 8" model C10A with a 10-ounce ceramic magnet and a square grille finished in white epoxy. There is an 8-Ohm speaker output terminal on the PCB in the IP speaker that can be connected to the speaker input on the A8S. This will provide signal and power from the IP speaker to the A8S allowing for greater sound coverage and reduced expense. The A8S can be used with the same surface and flush mount enclosures used by Atlas IP speakers, the SEA-I8S, SEST-I8S, and FEST-I8S.

Atlas Sound A8S Features:

• 8-Ohm Speaker for Use with IP Speakers
• Highly Efficient 10oz Dual Cone Loudspeaker System Provides 94dB Average SPL @ 1W/1m
• Preassembled with Aluminum Baffle
• Dual Cone Loudspeaker Design

Atlas Sound A8S Specifications:

• Baffle: 161-8
• Speaker Size: 8" (20.32 cm)
• Speaker Model: C10A
• Power Rating: 25 Watts
• Frequency Response: 45Hz - 19kHz
• Sensitivity: 97dB
• Power Taps: 8-Ohm
• Weight: 3.2 lbs.
• Depth: 2 5/8" (6.67 cm)
• Recommended Enclosures:
  • FEST-IH, SEA-I8S, or SEST-I8S
  • Use with 180-2 for drop ceiling application
• Reccomended Tile Bridge: I8S-TB (Not for use with Enclosure)
