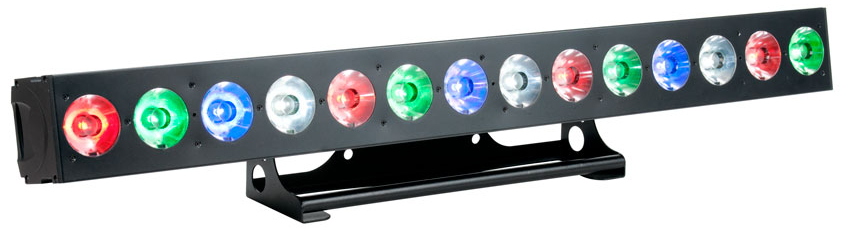

Elation Pro Lighting ACL Curtain
14x 15W RGBW Quad LED Strip

OUR PART #:  ACL-CURTAIN

A versatile batten luminaire featuring (14) individual 15W RGBW 4-in-1 LEDs, the Elation Pro Lighting ACL CURTAIN™, part of their ACL Series...
Learn More
Our Price: $960.00
List Price: $1,200.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting ACL Curtain
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A versatile batten luminaire featuring (14) individual 15W RGBW 4-in-1 LEDs, the Elation Pro Lighting ACL CURTAIN™, part of their ACL Series, also features an advanced collimator optic lens, producing a laser-like homogenized 4° color-changing beam from each lens that when combined, provide a 53° beam angle. Other highlights include full individual pixel control, selectable dimming curve effects, strobe, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5-pin XLR, powerCON, and RJ45 ethernet in/out connections, 4-button control full color 180° reversible menu display, multi-voltage universal auto switching power supply (100-240v) 240W max power consumption, plus an included glare shield and frost filter.

Elation Pro Lighting ACL CURTAIN Includes:

  • ACL CURTAIN Fixture
  • powerCON Cable
  • Glare Shield
  • Frost Filter

Elation Pro Lighting ACL CURTAIN Features:

  • Versatile 53° Beam Batten Luminaire
  • New Advanced Collimator Lens
  • (14) Pixel Control RGBW 4-in1 LEDs
  • Laser-Like Homogenized 4° Color Changing Beams
  • Strobe and Selectable Dimming Curve Effects
  • DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
  • Flicker-Free Operation for Broadcast TV and FILM
  • Glare Shield and Frost Filter Included

Elation Pro Lighting ACL CURTAIN Specifications:

Source

  • (14) 15W RGBW 4-in-1 LEDs
    100,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data (53° Full ON)

  • 46,740 LUX 4,342 FC @3.3’ (1m)
  • 20,890 LUX 1,941 FC @6.6’ (2m)
  • 13,520 LUX 1,256 FC @9.8’ (3m)
  • 9,717 LUX 903 FC @13.1’ (4m)
  • 7,664 LUX 712 FC @16.4’ (5m)

Effects

  • Individual Pixel Control
  • Strobe and Selectable Dimming Curves

Color

  • RGBW

Control / Connections

  • (11) DMX Channel Modes:
    • (1CH:04 / 2CH:04 / 6 /1CH:08 / 2CH:08 / 10 / 12 / 56 / 58 / 60 / 63)
  • RDM (Remote Device Management)
  • 4-Button Touch Control Panel
  • Full-Color 180° Reversible LCD Menu Display
  • 3-pin/5-pin DMX In/Out
  • RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
  • powerCON Power In/Out

Physical

  • Dimensions:
    • Length: 43.3” (1100mm)
    • Width: 9.5” (241.2mm)
    • Vertical Height: 6.8” (172.5mm) (Glare Shield Installed)
  • Weight: 24.0 lbs. (10.9 kg)

Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 240W Max Power Consumption
  • Power Linking: 4pcs Max @110V / 9pcs Max @240V
  • 5F to 113°F (-15°C to 45°C)

Approvals / Ratings

  • CE | IP30

Installation

  • Rigging: Clamps (sold separately)
  • Working Position: Any (360°)
