TecNec JackReel-XL1
High-Capacity Cable Reel for Broadcast and Fiber Optic Cable

OUR PART #  JACKREEL-XL1

Our Price: $386.10
List Price: $395.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

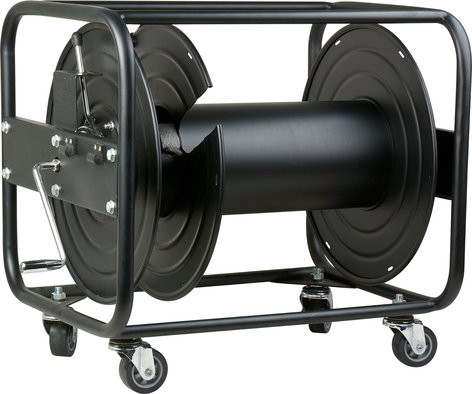

The TecNec JackReel-XL1 is a high-capacity steel cable reel that's designed specifically for multi-channel tactical fiber optic cables, SMPTE fiber optic camera cables, audio snake cables, and other cable assemblies.

This cable reel features rugged steel construction with a round tubing protective frame, non-reflective black matte finish, adjustable cam-lock drag brake for fast cable rollout and storage, and large heavy-duty locking caster wheels. The main cable drum is specially engineered to protect the bend radius of fiber optic cables. A special drum divider plate protects connectors and fan-outs separating them from the main cable run during storage and rollout.

TecNec JackReel-XL1 Features:

  • Split drum for safe and easy connector pigtail storage
  • Durable non-reflective black paint finish
  • Heavy-duty tubular steel construction
  • 3-position brake lock – Free Spool, Soft Brake, Full Lock
  • Rugged winding handle with storage
  • Locking casters

TecNec JackReel-XL1 Specifications:

  • Height:
    • With Casters: 21.187"
    • Witout Casters: 17.875"
  • Width: 21.75"
  • Depth: 17.875"
  • Center Hub Overall Width: 17.625"
  • Center Hub Main Hub Width: 14" Outside, 13.375" Inside
  • Center Hub Divider Width: 4" Outside, 3.312" Inside
  • Capacity for 5 mm O.D. Cable: 4500 Feet
  • Capacity for 7 mm O.D. Cable: 2500 Feet
  • Capacity for 9.5 mm O.D. Cable: 1100 Feet

TecNec JackReel-XL1
High-Capacity Cable Reel for Broadcast and Fiber Optic Cable

OUR PART #  JACKREEL-XL1

Product Information:

The TecNec JackReel-XL1 is a high-capacity steel cable reel that's designed specifically for multi-channel tactical fiber optic cables, SMPTE fiber optic camera cables, audio snake cables, and other cable assemblies.

This cable reel features rugged steel construction with a round tubing protective frame, non-reflective black matte finish, adjustable cam-lock drag brake for fast cable rollout and storage, and large heavy-duty locking caster wheels. The main cable drum is specially engineered to protect the bend radius of fiber optic cables. A special drum divider plate protects connectors and fan-outs separating them from the main cable run during storage and rollout.

TecNec JackReel-XL1 Features:

  • Split drum for safe and easy connector pigtail storage
  • Durable non-reflective black paint finish
  • Heavy-duty tubular steel construction
  • 3-position brake lock – Free Spool, Soft Brake, Full Lock
  • Rugged winding handle with storage
  • Locking casters

TecNec JackReel-XL1 Specifications:

  • Height:
    • With Casters: 21.187"
    • Witout Casters: 17.875"
  • Width: 21.75"
  • Depth: 17.875"
  • Center Hub Overall Width: 17.625"
  • Center Hub Main Hub Width: 14" Outside, 13.375" Inside
  • Center Hub Divider Width: 4" Outside, 3.312" Inside
  • Capacity for 5 mm O.D. Cable: 4500 Feet
  • Capacity for 7 mm O.D. Cable: 2500 Feet
  • Capacity for 9.5 mm O.D. Cable: 1100 Feet
