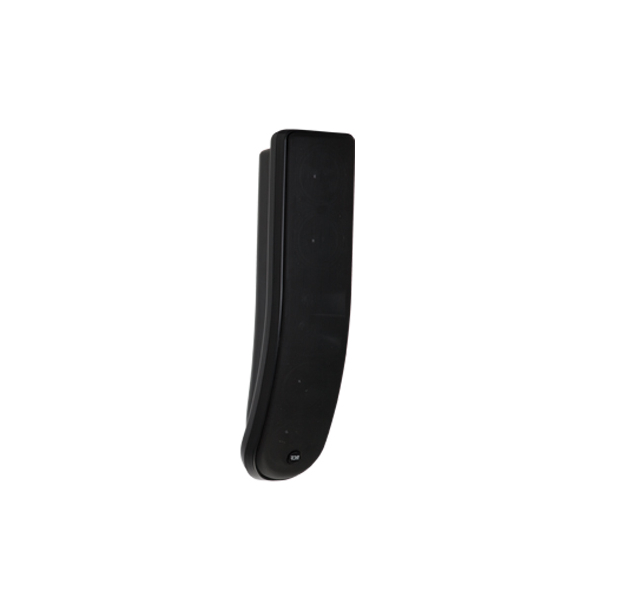

RCF MQ 100L [RESTOCK ITEM]
3-Way Column Loudspeaker

OUR PART #:  MQ100L-RST-01

A 3-way column loudspeaker that provides natural, hi-fidelity speech and music reproduction...
Learn More
Selected Model Sale Price: $173.20
List Price: $355.00
Save up to 51%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF MQ 100L [RESTOCK ITEM]
Select model: (shipping times are approximate)
Qty:
Similar Products

A 3-way column loudspeaker that provides natural, hi-fidelity speech and music reproduction, RCF's MQ 100L is well-suited for sound systems having fixed loudspeakers in both acoustically critical or architecturally constrained environments. It has a wide horizontal coverage angle (180°) and vertical dispersion (60°), so it can deliver accurate sound reproduction in a wide space, also helping to limit feedback and improve sound directivity. This is important, for instance, in a hallway that may have a long reverberation time. Mounting accessories are included. These units have been engineered to keep the column in as close proximity as possible to the wall, and to offer simplified installation. The tilt angle can be selected among 0° – 5° – 10°. Its 60° vertical dispersion is asymmetric: being the difference between 20° upwards and 40° downwards. In fact, the vertical dispersion axis is already angled 10° downwards. This makes it unnecessary to tilt the sound column excessively.

This is a RESTOCK item that has been refurbished by the manufacturer. Please contact your Sales Pro for more information on this and other products.

Applications include:

  • Foreground / Background Music
  • Distributed Speech Reinforcement
  • AV Production / Playback
  • Pubs and Restaurants
  • Shopping malls

RCF MQ 100L Features:

  • 2 rubber surround 3.5" woofers
  • 2 fabric surround 3.5" mid-woofers
  • 2 cloth coated 0.75" dome tweeters
  • 40 / 80 Watt (RMS/Music Power)
  • Frequency range 130 Hz ÷ 20 kHz
  • 118 dB (80 W/1 m) max. SPL
  • Incl. 100V transformer multitap
  • Power rotary switch
  • Direct connection to Low-Z speaker lines
  • Easy to install
  • Simple power settings

RCF MQ 100L Specifications:

Audio/Acoustical:

  • Frequency Response -10 dB: 130 Hz ÷ 20 Hz
  • Max SPL @ 1m: 118 dB
  • Horizontal coverage angle: 180°
  • Vertical coverage angle: 60 (+ 20, - 40)°
  • System Sensitivity: 93 dB
  • Nominal Impedance: 16 O
  • Power Handling: 80 W
  • Peak Power Handling: 320 W
  • Protections: PTC on tweeter
  • Crossover frequencies: 2000 Hz

Transducers:

  • Tweeter: 2 x 0.75" cloth coated dome tweeters
  • Midrange: 2 x 3.5" fabric surround mid-woofers
  • Woofer: 2 x 3.5" rubber surround woofers

Input Section:

  • Input connector: euroblock

Cabinet:

  • Cabinet Material: Self-extinguishing (HB level) high density polystyrene
  • Grille: Steel
  • Color: Choice of Black or White; please specify when ordering

Physical:

  • Dimensions (HxWxD):
    • Product: 20.8" x 4.7" x 6.5" (510 x 120 x 166.8mm)
    • Shipping: 21.65" x 7.08" x 7.08" (550 x 180 x 180mm)
  • Net Weight:
    • Product: 6.6 lbs (3 kg)
    • Shipping: 7.7 lbs (3.48 kg)

Note: All information is subject to change at any time and without notice.
