Blonder-Tongue HDE-CSV-QAM
Component / VGA MPEG2 Encoder Module

OUR PART #:  HDE-CSV-QAM

The Blonder-Tongue HDE-CSV-QAM is a MPEG-2 HD Encoder that accepts one (1) high-definition (HD) program from any of the following inputs: Component, HDSDI, HDMI (unencrypted)...
Learn More
Our Price: $3,183.70
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blonder-Tongue HDE-CSV-QAM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blonder-Tongue HDE-CSV-QAM is a MPEG-2 HD Encoder that accepts one (1) high-definition (HD) program from any of the following inputs: Component, HDSDI, HDMI (unencrypted), VGA, and Composite, then outputs encoded MPEG-2 in the following formats simultaneously: QAM, ASI, and IP (10/100Base-T Ethernet), with its QAM RF output being frequency agile over the entire CATV frequency range of 54-1002 MHz (channels 2-158) and output level of +40 dBmV.

It includes support for Dolby® Digital audio encoding and Closed Captioning (EIA-608 and EIA-708), along with comprehensive remote monitoring and control using any standard Web browser via a front-panel 10/100Base-T Ethernet connection. Loop-through applications are available using a rear-panel VGA output port.

Blonder-Tongue HDE-CSV-QAM Features:

  • Accepts one (1) program from any of the following inputs: 1x Component, 1x HD-SDI, 1x HDMI (unencrypted), 1x VGA, and 1x Composite
  • Simultaneously delivers the following outputs: 1x QAM, 1x ASI, and 1x IP
  • Provides +40 dBmV QAM RF output level
  • Provides comprehensive GUI-based monitoring and control via standard Web browsers
  • Compact design permits installation of up to 3 Encoder modules in 1RU
  • Supports Real-time Dolby® Digital audio encoding
  • Supports user-defined PSIP configuration
  • Supports Closed Captioning EIA-608 and EIA-708

Blonder-Tongue HDE-CSV-QAM Specifications:

Input

  • Component
    • Connectors: 3x RCA for Video (Y, Pb, Pr)
    • Video Resolution: 480i, 720p, & 1080i
    • Video Aspect Ratio: 4:3 & 16:9
    • Audio:
      • 2x RCA for Analog Audio (L, R)
      • 1x RCA for Digital Audio (PCM)
  • HD-SDI
    • Connector: 1x BNC
    • Standard: SMPTE 292M
    • Video Resolution: 480i, 720p, & 1080i
    • Audio: Embedded PCM and pass-through Dolby® Digital only
  • HDMI
    • Connector: 1x HDMI
    • Video Resolution: 480i, 720p, & 1080i
    • HDCP Encryption: Not supported
    • Audio: Embedded PCM & pass-through Dolby® Digital only
  • VGA
    • Connectors: 2x Female VGA (Input + Loop-through Output)
    • Video Resolution:
      • 640x480 @ 60 fps
      • 800x600 @ 60 fps
      • 1024x768 @ 60 fps
    • Audio:
      • 2x RCA for Analog Audio (L, R)
      • 1x RCA for Digital Audio (PCM)
  • Composite
    • Connectors: 1x RCA for Video (Y)
    • Video Resolution: 480i
    • Audio:
      • 2x RCA for Analog Audio (L, R)
      • 1x RCA for Digital Audio (PCM)

Encoding Profile

  • Video:
    • Output Format: MPEG-2 HD MP @ML; ISO 13818-2
    • Chroma: 4:2:0
    • Resolution: 480i, 720p, & 1080i
    • Frame rate: 29.97 fps (480i); 29.97 fps (1080i); 59.97 fps (720p)
    • Aspect Ratio: 4:3 & 16:9
    • GOP Structure: I & P frames (user-selectable)
    • Transport Rate: Variable (user-selectable)
    • Video Bit Rate: Variable (user-selectable)
    • Video Pre-filter: Variable (user-selectable)
    • Color Space: YCbCr and RGB
  • Audio:
    • Output Format: Dolby® Digital
    • Sampling rate: 48 kHz
    • Bit rate: Variable; 96 - 448 Kbps (user-selectable)
  • Closed Captioning:
    • Component: EIA- 608; 1x RCA (CC)
    • HD-SDI: EIA-708; Embedded in HD-SDI input
    • HDMI: EIA- 608; 1x RCA (CC)
    • VGA: EIA- 608; 1x RCA (CC)
    • Composite: EIA- 608

Output

  • QAM:
    • Connector: 1x “F” Female (Rear-panel)
    • Modulation: QAM 16, 32, 64, 128, and 256
    • Standards: ITU-T J.83; Annex A and B
    • DVB Symbol Rate: Variable; up to 7 MSymbol/sec (MBaud)
    • Frequency Range: 54 to 1002 MHz
    • Tuning: CATV Channel Selectable (Ch. 2 to 158)
    • Channels’ Bandwidth: 6 MHz
    • RF Level: +40 dBmV ±1 dB
    • RF Level Adjustment: +32 to +42 dBmV, 1 dB increment
    • Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
    • Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
    • Amplitude Flatness: ± 0.25 dB (over 6 MHz channel)
    • Phase Noise: -98 dBc (@ 10 kHz)
    • Spurious: -60 dBc
    • Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
    • Impedance: 75 Ohms
    • Spectral Inversion: Auto Recognition
    • Carrier Suppression: 45 dB
    • Return Loss: 14 dB typical
    • Signal-to-Noise Ratio (SNR): 40 dB typical
    • MER: 40 dB typical
    • I/Q Phase Error: Less than 1 degree
    • I/Q Amplitude Imbalance: Less than 1%
  • ASI:
    • Connectors: 1x BNC (Front-panel)
    • Format: DVB-ASI
    • Standard: ETSI EN 50083-9
  • IP
    • Connector: 1x RJ45 (Front-panel)
    • Standard: 10/100Base-T Ethernet
    • UDP/RTP: Supported (user-selectable)

General

  • Dimensions: 5.65" W x 12.5" D x 1.75" H (144 x 317.5 x 44.5 mm)
  • Power: External Power Supply (Input 115-230VAC / Output 12VDC @ 3 Amp)
  • Power Dissipation: 20 W
  • Weight (one module): 1.5 lbs (0.7 kg)
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
  • Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing

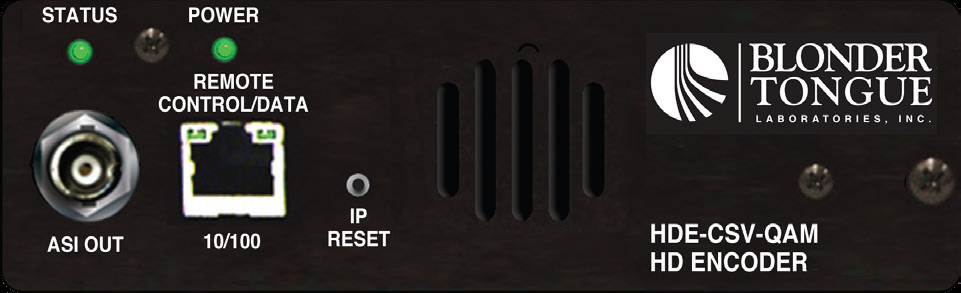

Alarms/Monitoring/Control

  • Local Monitoring:
    • 1x Status LED
    • 1x Power LED
  • Local Control:
    • 1x IP Reset button
  • Remote Monitoring/Control:
    • GUI-based menu via standard Web browsers
      (1x RJ45 front-panel connector; 10/100Base-T, also used for IP output)
