Kramer FC-26
Bidirectional Control Signal Converter

OUR PART #:  FC-26

The Kramer FC-26 is a bidirectional RS-232 to Ethernet with IR control signal converter...
Learn More
Our Price: $380.00
List Price: $475.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer FC-26
Qty:
In Stock

Similar Products

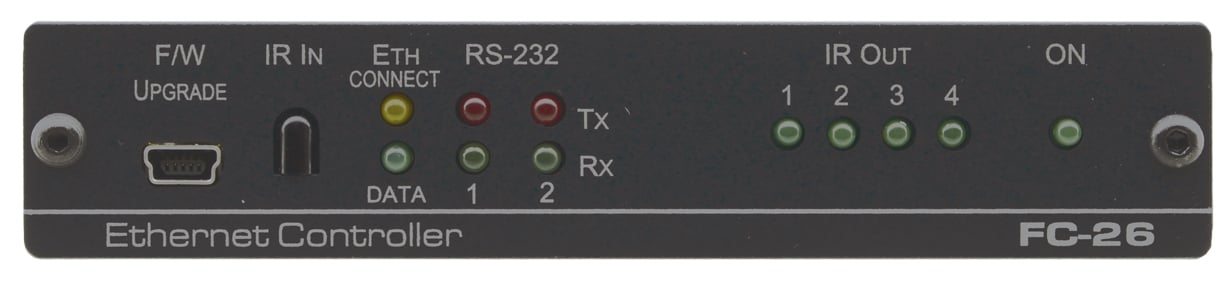

The Kramer FC-26 is a bidirectional RS-232 to Ethernet with IR control signal converter, the Kramer FC-26 allows Ethernet or LAN control to (2) RS-232- and (4) IR-controllable devices.

Kramer FC-26 Includes:

  • FC-26 Unit
  • IR Cable C-A35M/IRE-10
  • Power adapter

Kramer FC-26 Features:

  • Ports:
    • Two RS-232
    • One Ethernet
    • Four IR
  • Simultaneous Communication: With up to 40 PC clients
  • USB Port: For firmware upgrades

Kramer FC-26 Specifications:

  • Outputs: 4 IR on 3.5mm mini jacks
  • Ports: 2 RS-232 serial on 3-pin terminal blocks, 1 Ethernet on an RJ-45 connector, 1 USB on a mini USB connector for programming
  • Supported Serial Baud Rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
  • RS-232 Communication: Transparent up to 115200bps
  • IR Emitter Cable Range: 80m (260ft)
  • Supported IR Frequencies: 20kHz to 1.2MHz
  • Maximum Data Handling of Device: Up to 150kbps summed on all ports
  • Supported Web Browsers: Windows 7 and higher: Internet Explorer (32/64bit) version 11, Firefox version 30, Chrome version 35 MAC: Chrome version 35, Firefox version 27, Safari version 7. Android OS: Chrome version 35. iOS: Chrome version 35, Safari version 7
  • Power Consumption: 5V DC, 230mA
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to +158°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Cooling: Convection
  • Enclosure Type: Aluminium
  • Rack Mountable: Yes, with optional rack adapter (sold separately)
  • Product Dimensions (WxDxH): 4.72" x 2.95" x 0.96" (12 x 7.5 x 2.44cm)
  • Product Weight: 0.4 lb (0.182 kg) approx.
  • Vibration: ISTA 1A in carton (International Safe Transit Association)
  • Safety Regulatory Compliance: CE
  • Environmental Regulatory Compliance: Complies with appropriate requirements of RoHs and WEEE
