Cables To Go 60150

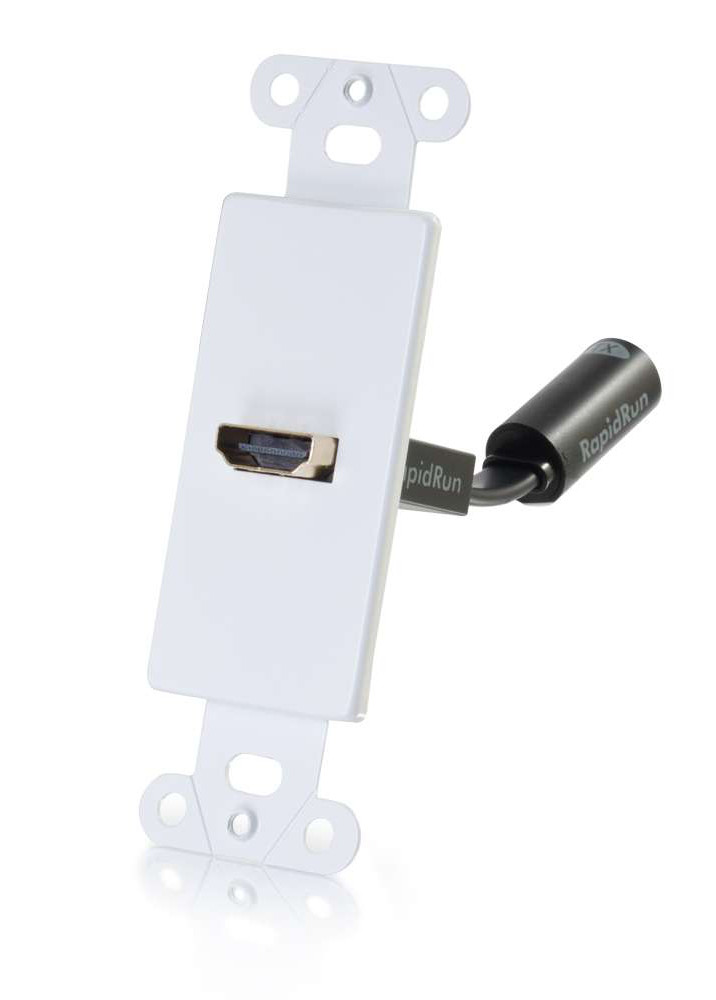

RapidRun HDMI Decora-Style Wall Plate Transmitter, White

OUR PART #:  60150

The Cables To Go 60150 is a RapidRun® HDMI Decora-style wall plate transmitter, designed for use with a RapidRun optical runner and receiver flying lead for a complete...
Learn More
Our Price: $102.69
List Price: $134.99
You save 24%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cables To Go 60150
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Cables To Go 60150 is a RapidRun® HDMI Decora-style wall plate transmitter, designed for use with a RapidRun optical runner and receiver flying lead for a complete, high-performance HDMI audio/video solution.

C2G's RapidRun Optical is designed to be the standard for in-wall HDMI audio/video installations. Using pre-terminated break-away flying leads and wall plates with an in-wall runner ensures flexible, efficient, high quality connections for all types of equipment, with no field terminations. Ideal for high resolution displays utilizing HDMI, this wall plate transmits an HDMI signal through an Optical runner cable to allow for a clean termination.

NOTE: Some HDMI source devices are unable to output the power required to send A/V signals over the Optical runner cable which results in no image being displayed. In those instances, an HDMI Voltage Inserter (sold separately) may be required. Each complete RapidRun Optical solution requires a break-away flying lead or wall plate to terminate each end of the runner cable. Each runner requires (2) break-away flying leads OR (1) wall plate and (1) break-away flying lead.

Cables To Go 60150 Features:

  • Supports full 1080p, 4k, and 3D HDMI features
  • Utilizes fiber cabling, so it is resistant to EMI/RFI interference
  • Powered with USB at the display side (RX)

Cables To Go 60150 Specifications:

  • General Specifications
    • Connector 1: HDMI Female
    • Connector 2: RapidRun Optical Female
    • Color: White
    • UPC: 757120601500
    • Warranty: 3 Years
    • Weight: 0.130 lb
  • Electrical Specifications
    • Resolutions Supported: 4k x 2k 60Hz, 4k x 2k 30Hz, 1080p, 720p, 480p
    • HDMI Features Supported: Ethernet Return Channel, HDMI High Speed, HDCP, EDID, CEC
    • Audio Return Channel
    • Power Consumption: Max 5V @ 135mA
    • Idle: 5V @ 125mA
    • Normal Operation: 5V @ 128mA
  • Physical Characteristics
    • Pigtail Length: 4"
    • Color Designation: Platinum
    • Temperature Rating: 0°C ~ 70°C
    • Humidity: 0% ~ 90% RH
    • Bend Radius: 5mm
    • Compliance: CE, FCC, RoHS2
