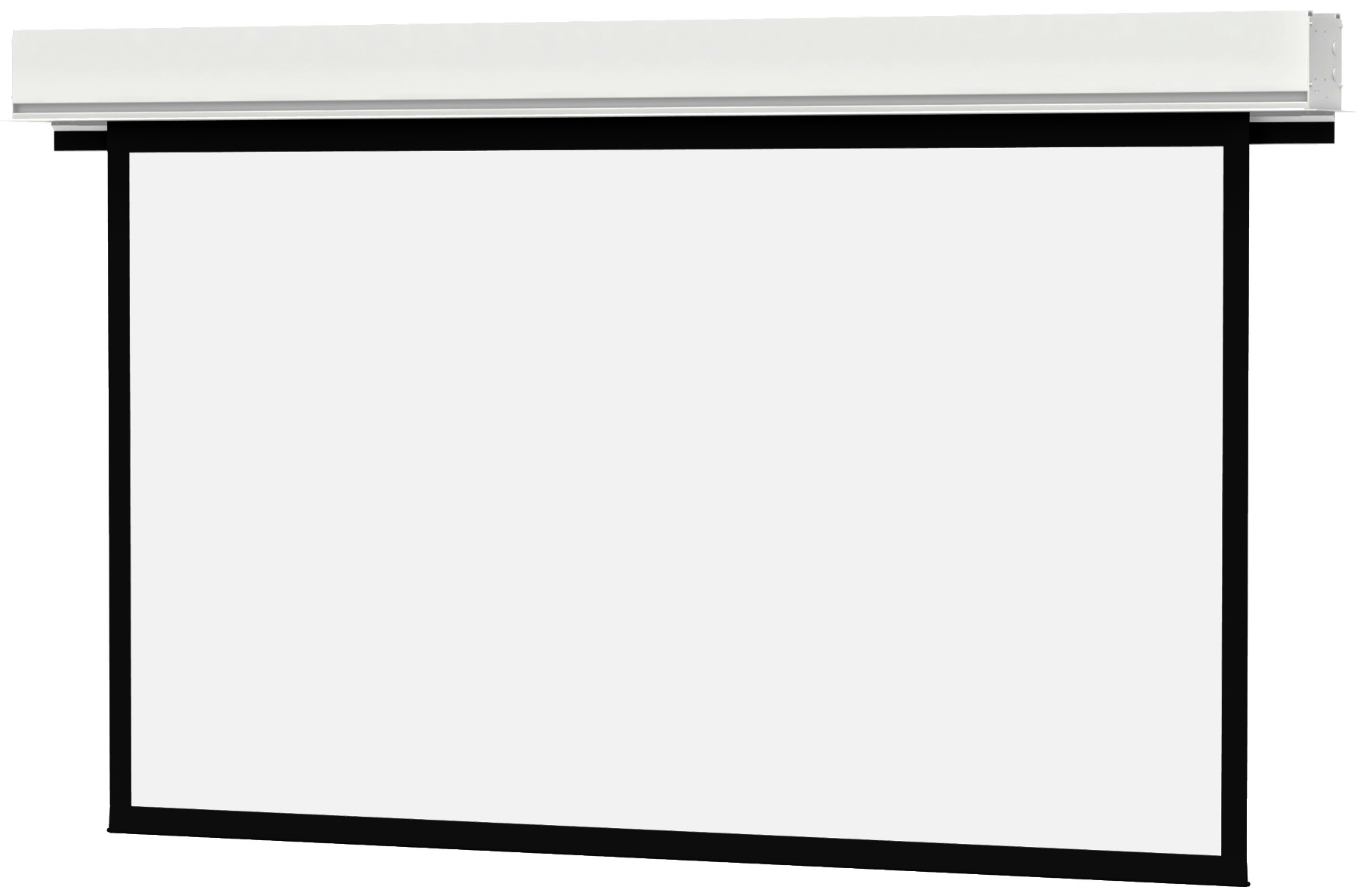

Da-Lite 88122 50" x 67" Advantage Deluxe Electrol Matte White Projection Screen

The Da-Lite 88122 is part of their Advantage® Deluxe Electrol® series which is designed to eliminate the extra step of finishing the screen with trim-having ceiling trim already in place. Once installed, the screen’s trim conceals the rough opening which eliminates the need for additional complete trim work. Its sliding installation brackets make for easy attachment of the screen housing to the structure above the drop ceiling.

All Advantage Deluxe Electrol series screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner, professional look.

The Da-Lite Advantage Deluxe Electrol screen series features simple 2-stage in-ceiling installation. During the rough-in construction stage, the screen case can be installed, then the fabric assembly can be made during the finishing stage.

Tensioning Cable System is included with Tensioned Advantage Electrol Deluxe (sold separately-consult your Sales Pro for more information) to ensure an even lateral tension.

Matte White is a fiberglass surface for non high-definition projection and environments with controllable ambient light that preserves color as well as black and white images. Consult the Specification Sheet, or Contact a Sales Pro for more information. Matte White can be cleaned with mild soap and water, is flame retardant, mildew resistant, and has achieved GREENGUARD GOLD Certification.

Da-Lite 88122 Advantage Deluxe Electrol Screen Features:

• Standard Low Voltage Control (LVC) to keep your screen operation flexible
• UL Plenum rated case
• White powder-coated closure doors and case for a clean aesthetic
• Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case (consult your Sales Pro for more information)
• Decora-style, 3-button wall switch
• Standard black backing retains projected brightness

Da-Lite 88122 Advantage Deluxe Electrol Screen Specifications:

• Video Format (Aspect Ratio): 4:3 (NTSC)
• Viewing Area: 50" x 67" (127 x 170cm)
• Nominal Diagonal: 84" (213cm)
• Overall Case Length: 82-¼" (209cm)
• Approx. Shipping Weight: 93 lbs (42.2 kg)
• Matte White Screen Surface
  • Half Angle: 60°
  • Gain: 1.0
