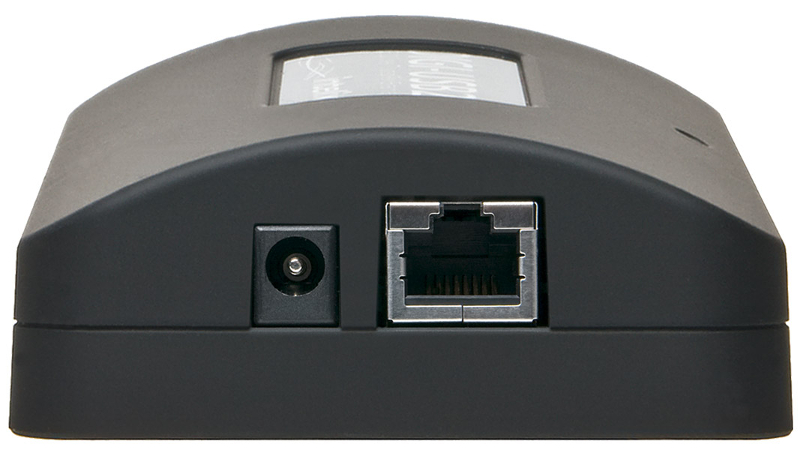

Intelix DIGI-USB2
USB 2.0 High Speed Twisted Pair Extender

OUR PART #:  DIGI-USB2

The Intelix DIGI-USB2 extends computer USB 1.1 and USB 2.0 signals up to 100m (330’) over twisted pair cabling. The device can be powered at either the client or host device.
Learn More
Our Price: $386.96
List Price: $429.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Intelix DIGI-USB2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix DIGI-USB2 extends computer USB 1.1 and USB 2.0 signals up to 100m (330’) over twisted pair cabling. The device can be powered at either the client or host device.

Intelix DIGI-USB2 Features:

  • Extends USB High-Speed (480 Mbps) up to 100 m (330 ft)
  • Can be powered at either the client or host device
  • Uses any Cat5e/6/6A twisted pair cabling
  • Supplies 500mA to USB devices
  • Can also be used to extend USB 1.1 signals
  • Transparent USB; Plug and Play (no software drivers needed)
  • Compatible with all major operating systems

Intelix DIGI-USB2 Specifications:

  • I/O Connections (Local):
    • USB: One (1) USB Type B
    • Twisted Pair: One (1) 8P8C port (Shielded RJ45)
    • 24V DC Power: One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • I/O Connections (Remote):
    • USB: One (1) USB Type A
    • Twisted Pair: One (1) 8P8C port (Shielded RJ45)
    • 24V DC Power: One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • Maximum Distance:
    • CAT5E: 100 m (330’)
  • Supported Signals:
    • USB 2.0: Up to 480 Mbps
    • USB 1.1: Up to 12 Mbps
  • Chassis and Environmental:
    • Enclosure: Black Rubberized ABS Plastic
    • Dimensions: 3.43" x 2.26" x 1.20" (87 x 58 x 28 mm)
    • Shipping Weight: 1 lbs. (0.45 kg)
    • Operating Temperature: +32° to +122° F (0° to +50° C)
    • Operating Humidity: 20% to 80%, Non-condensing
    • Storage Temperature: -4° to +158° F (-20° to +70° C)
    • Storage Humidity: 10% to 90%, Non-condensing
