Atlona Technologies Altona Transmitter
HDMI Over HDBaseT TX/RX with Control and PoE

OUR PART #:  AT-UHD-EX-70C-KIT

Our Price: $499.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atlona Technologies Altona Transmitter
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

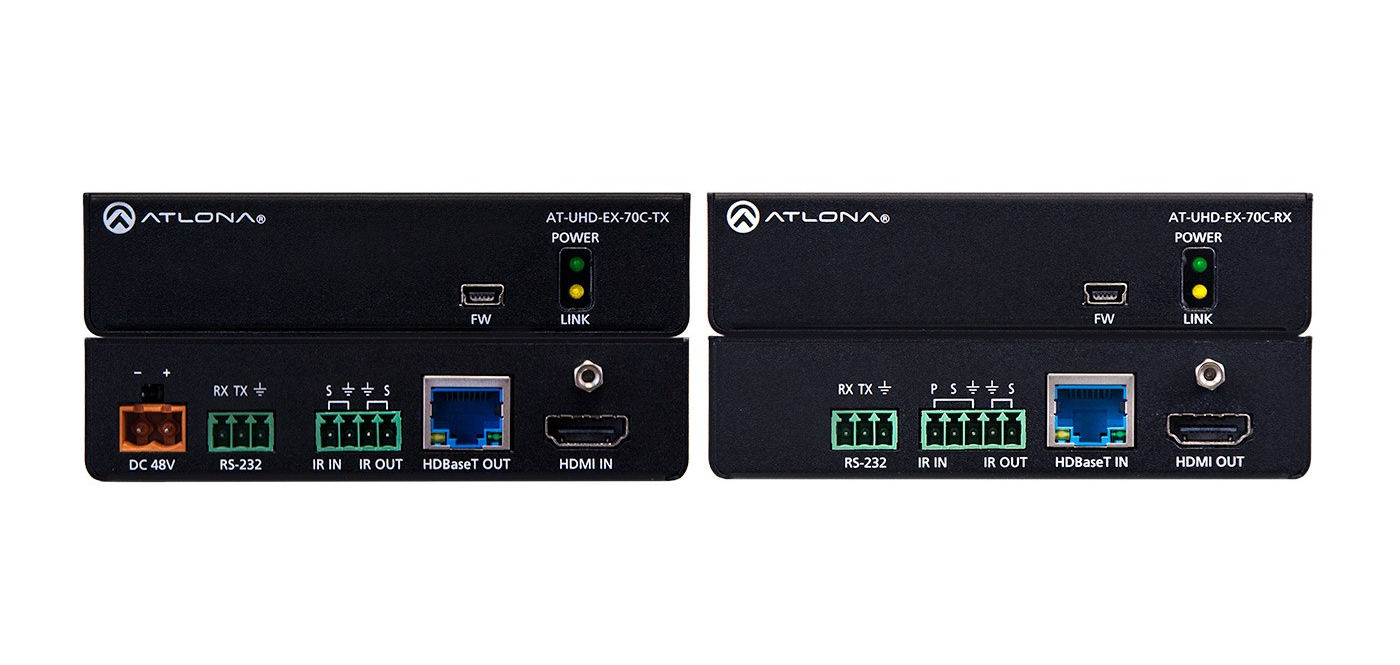

The Atlona AT-UHD-EX-70C-KIT is a 4K/UHD HDMI over HDBaseT transmitter/receiver for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The kit provides bidirectional extension of both 12 volt IR and RS-232 commands. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.

TekNec Altona AT-UHD-EX-70C Features:

  • 4K/UHD capability
  • HDCP 2.2 compliant
  • Remote-powered receiver
  • Bidirectional extension of both RS-232 and IR controlcommands
  • Long distance HDMI extension
  • Flexible Bidirectional IR control capabilities
  • Rear panel I/O connectors

TekNec Altona AT-UHD-EX-70C Specifications:

  • Resolution:
    • Video 4096x2160@24/25/30/50*/60Hz*, 3840x2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Colorspace YCbCr, RGB
    • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    • Color Depth 8-bit, 10-bit, 12-bit
  • Audio:
    • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K up to 115 feet (35 meters)
    • CAT6a/7 @ 4K up to 130 feet (40 meters)
    • CAT5e/6 @ 1080p up to 197 feet (60 meters)
    • CAT6a/7 @ 1080p up to 230 feet (70 meters)
    • HDMI IN/OUT @ 4K up to 15 feet (5 meters)
    • HDMI IN/OUT @ 1080p up to 30 feet (10 meters)
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Pass through
    • HDCP: Supports up to 2.2
  • Connector:
    • Firmware: Mini-B USB
    • HDBaseT: RJ45 (8P8C)
    • HDMI: Type A
    • TX-IR: 4-pin captive screw
    • RX-IR: 5-pin captive screw
    • RS-232: 3-pin captive screw
    • Power: 2-pin, 48V captive screw
  • Temperature:
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 10.89W
    • Supply Input: AC100~240V 50/60Hz
    • Output: DC 48V/0.83A
  • Demension:
    • H x W x D: 0.98" x 4.29" x 3.50" (25 x 109 x 89 mm)
    • w/ears: 1.06" x 4.69" x 3.50" (27 x 119 x 89 mm)
  • Weight:
    • TX Unit: 0.59lbs (0.27kg)
    • RX Unit: 0.73lbs (0.33kg)
  • Certification:
    • Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
    • Product: CE, FCC
