Marshall Electronics V-R173-IMD-3GTE

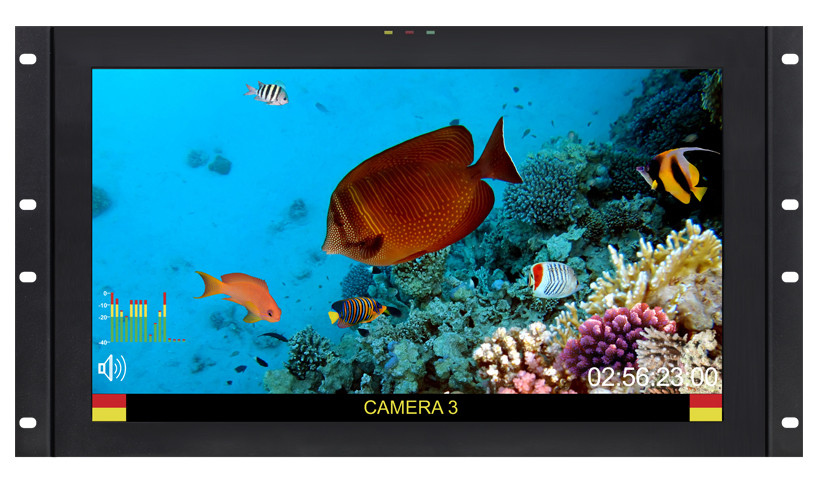

Rack Mount, 17.3" Rack Mounted IMD 3G Monitor

OUR PART #:  V-R173-IMD-3GTE

The Marshall V-R173-IMD-3GTE Truck Edition 17.3” monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units.
Learn More
Our Price: $1,867.50
List Price: $2,198.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-R173-IMD-3GTE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall V-R173-IMD-3GTE Truck Edition 17.3” monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within the Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, Closed Captioning, audio level bars. Audio de-embedding via headphone or Line Out connectors. The Marshall IMD displays also feature our RotoMenu™ easy menu navigation using a single control which avoids turning on the lights to see menu keys.

Marshall Electronics V-R173-IMD-3GTE Features:

  • Three-color on-screen "soft" tally indicators (Red /Green / Yellow)
  • Three-color LED "hard" tally indicators (Red / Green/ Yellow)
  • On-Screen Audio Bars Display up to 16 Channels
  • On-Screen Time Code and Closed Captioning Display
  • RS-422 / 485 port with loop-through for monitorcontrol and IMD functionality
  • Field upgradeable firmware capability
  • Direct controls for brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode to check image detail
  • Blue-only Mode for color adjustment
  • Adjustment Setting Memory
  • Easy mounting with included rack ears, VESA mount or optional deskstand

Marshall Electronics V-R173-IMD-3GTE Specifications:

  • Panel
    • Number of Panels: 1
    • Panel Size: 17.3” Diagonal
    • Resolution: 1920 x 1080
    • Aspect Ratio: 16 : 9
    • Active Area: 381.888 x 214.812 mm
    • Type: LCD Panel
    • Brightness: 400 cd/m²
    • Contrast: 600 : 1
    • Viewing Angles: 160°H x 140°V
    • Backlight type: LED
  • Power
    • Consumption: 5.0A max @ 12VDC (60 watts)
    • Power Switch: Yes
    • Connector Type: 2-Pin Twist Lock Male
  • Environmental
    • Operating Temperature (C°): 32°F to 104°F
    • Storage Temperature (C°): -4°F to 120°F
    • Rack Unit dimensions (W x H x D): 18.74 x 10.45 x 1.46"
    • Weight (Main Body): 8.20 lbs
    • Vesa Mount Pattern: 75 mm
