Modular System for Educational Musical Instrument Labs


This is a specially priced product for educational institutions. Please call your Sales Pro at 800-356-5844 for more information on how to place your order.
Learn More

Call for price! Not available online.

Related Products

This is a specially priced product for educational institutions. Please call your Sales Pro at 800-356-5844 for more information on how to place your order. A faxed purchase order from your organization is usually required to fulfill this order at this price.

The Yamaha LC4 Music Lab system provides music educators with an intuitive, accessible way to teach a musical instrument to a group of students all at once, in smaller groups, or one-on-one, from any location in the room. The LC4 comes with everything an 8-student lab needs for quick, easy setup in your group-teaching environment.

The LC4 is expandable to accommodate classes of up to 48 students. Using a network of headphones and microphones to make it seem as if each student is isolated in their own practice room, it is ideal for one-on-one instruction. Then with the touch of a button the software can be instantly switched to group study mode to incorporate interaction with the entire classroom.

Yamaha LC4 Music Lab Features:

  • Optional LC4 Wireless Kit allows you to control the lab with an Apple iPad
  • Controller App lets you configure and store an unlimited number of class setups, including students’ names and attendance
  • Controller App's Scan Mode conveniently auto-scrolls through student instruments for easy monitoring
  • Convenient “Mega Group” feature for connecting up to 48 students with the press of a single button
  • Heavy-duty Yamaha CM500 Headset Microphones for listening and class communication
  • Intuitive installation and operation guides
  • PC/Mac inputs for each student, ideal for computer/music recording

Yamaha LC4 Music Lab Specifications:

  • Hub
    • Connectors: Teacher, RJ-45
    • 8 students, RJ-45 (Stereo mode) or 16 students, RJ-45 (Split Mono mode): Expandable to 48 students
    • Stereo Monitor Output: RCA x2, -10dBv
    • Stereo Record Output: RCA x2, -10dBv
    • Stereo Aux Input: RCA x2, -10dBv
    • Ethernet: 10/100 Mbit/sec, RJ-45
    • Remote: Data/power, RJ-45
    • Power: 7.5 Volt
    • Dimensions (Hub): 17.00" W x 5.00" D x 3.50" H (432 mm W x 127 mm D x 89 mm H)
    • Weight (Hub (8 students)): 5.50 lb (2.50 kg)

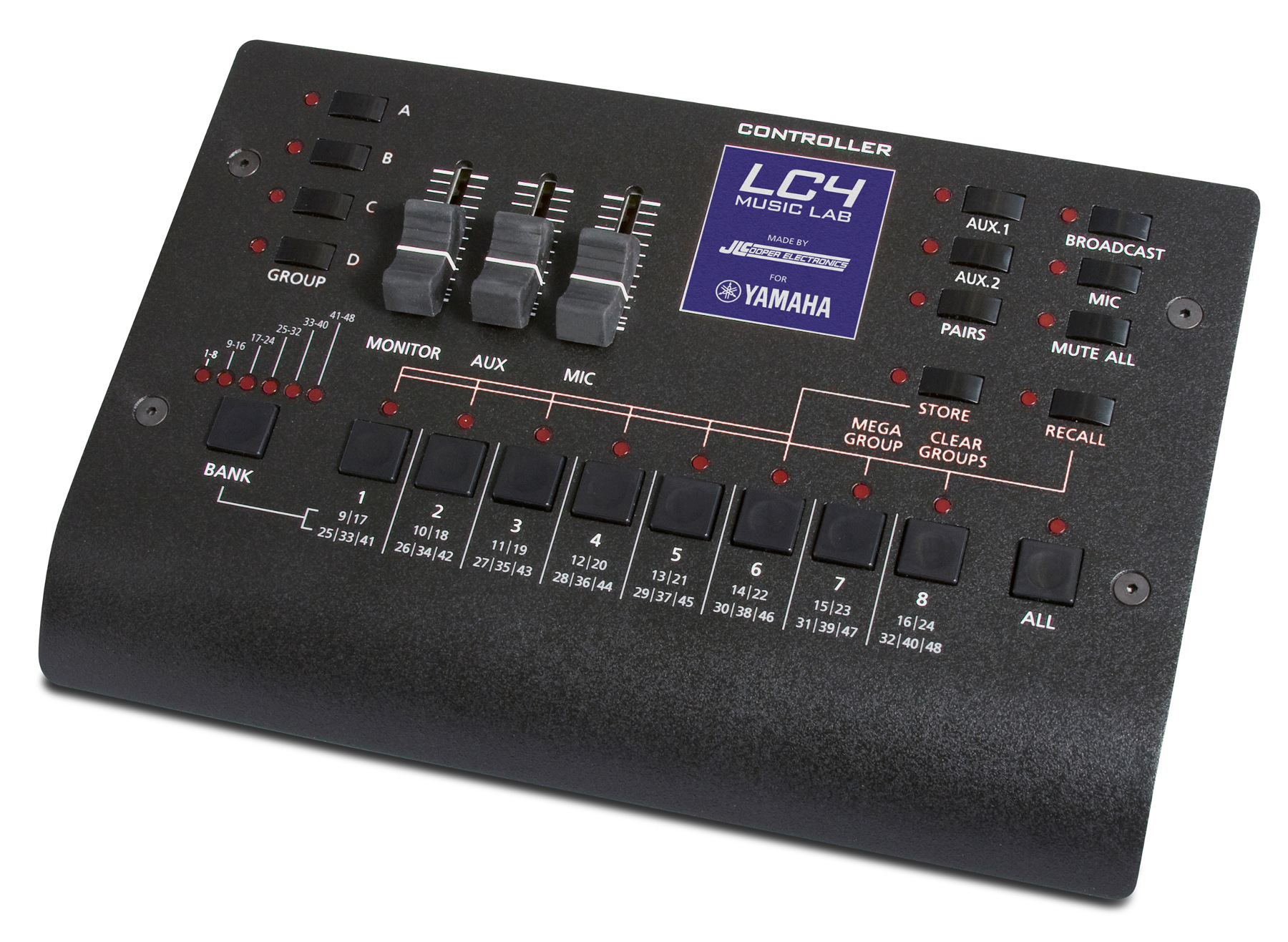

  • Remote Control Panel
    • 8 Student Select buttons
    • All Students Select button
    • Bank Select button
    • 4 Group Assign/Select buttons
    • Pairs Enable button
    • Monitor Volume Fader
    • Aux1/Aux2 Volume Fader
    • Teacher Volume Fader
    • Preset Store/Recall buttons
    • Aux1/Aux2 Select buttons
    • Teacher Mic button
    • Broadcast Enable button
    • Mute All button
    • Connector: Data/power, RJ-45
    • Dimensions: 9.00" W x 6.00" D x 2.00" H (229 mm W x 152 mm D x 51 mm H)
    • Weight: 1.75 lb (0.80 kg)
  • Instrument Box
    • Connectors:
      • 2 Stereo Headphones (3.5mm miniature phone plug)
      • 2 Condenser Microphone (3.5mm miniature phone plug)
      • Computer Line Input (3.5mm miniature phone plug)
      • Computer Microphone Output (3.5mm miniature phone plug)
      • 2 Instrument Line Inputs (1/4 inch phone plug)
      • Audio/Power, RJ-45
    • Dimensions: 5.75" W x 3.25" D x 1.38" H (146 mm W x 83 mm D x 35 mm H)
    • Weight: 0.38 lb (0.17 kg)
  • Expander Card
    • Connectors: 8 students (Stereo mode) or 16 students (Split Mono mode)
    • Dimensions: 8.00" W x 4.25" D x 0.50" H (203 mm W x 108 mm D x 13 mm H)
    • Weight: 0.25 lb (0.11 kg)
  • LC4BASE Music Lab
    • Included in LC4EXP box:
      • Expander Card
      • 8 Instrument Boxes
      • 8 Headsets
      • 8 Instrument Box cables, 20 m
      • Mounting hardware
Yamaha LC4WIFI-KIT  Optional WIFI Connection Kit for LC4
599.99 999.00 40

Usually ships in 7-14 business days.
