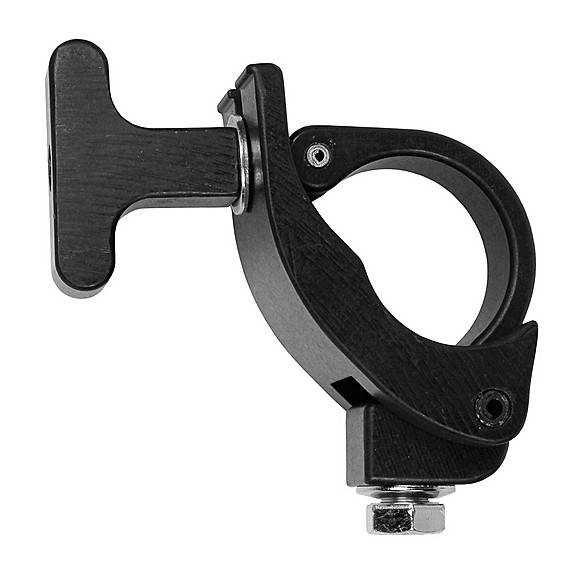

The Light Source Black Mini Claw
Hanger

OUR PART #  MIB

Our Price: $24.00
List Price: $30.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Lightweight profile for hanging small lighting fixtures to truss or pipes. Holds the weight of the fixture for you while you secure it. No set screw to ding truss. Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 tpi by 3/4" long hex head grade 5 bolt for fastening to the fixture.

The Light Source Mini Claw Specifications:

  • Minimum Size: 1.25" pipe, 1.66" OD
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
  • Safe Vertical Working Load: 150 lb
  • Hardware:
    • 1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt.
    • 1" Belleville spring washer.
  • Dimensions: 3 3/8" tall x 2" thick
  • Weight: 15 oz
  • Case Quantities: 12

The Light Source Black Mini Claw
Hanger

OUR PART #  MIB

Product Information:

Lightweight profile for hanging small lighting fixtures to truss or pipes. Holds the weight of the fixture for you while you secure it. No set screw to ding truss. Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 tpi by 3/4" long hex head grade 5 bolt for fastening to the fixture.

The Light Source Mini Claw Specifications:

  • Minimum Size: 1.25" pipe, 1.66" OD
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
  • Safe Vertical Working Load: 150 lb
  • Hardware:
    • 1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt.
    • 1" Belleville spring washer.
  • Dimensions: 3 3/8" tall x 2" thick
  • Weight: 15 oz
  • Case Quantities: 12
