Sennheiser Evolution Wireless D1 Series Digital Bodypack [RESTOCK ITEM]
System with CL1 Instrument Cable


The Sennheiser EWD1-CL1 is an Evolution Wireless D1 Series digital wireless bodypack system that includes a CL1 instrument cable for wireless on-stage instrment applications.
Learn More
Sale Price: $450.98
List Price: $799.00
You save 44%!
Write the first review.
Sennheiser Evolution Wireless D1 Series Digital Bodypack [RESTOCK ITEM]
In Stock
Related Products

The Sennheiser EWD1-CL1 is an Evolution Wireless D1 Series digital wireless bodypack system that includes a CL1 instrument cable for wireless on-stage instrment applications.

Evolution Wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Representative for more information on this and other products.

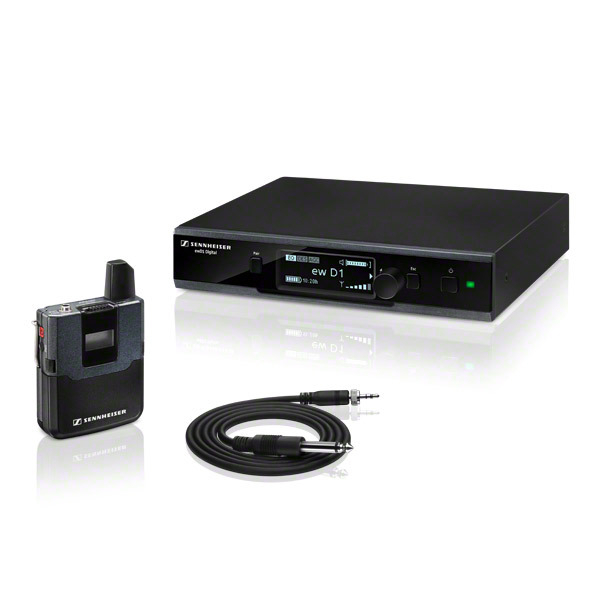

Sennheiser EWD1-CL1 Includes:

  • EM-D1 rackmount receiver
  • SK-D1 bodypack transmitter
  • CL 1 instrument cable
  • NT-12 power supply
  • Transport case
  • User manual

Sennheiser EWD1-CL1 Features:

  • Lightweight bodypack transmitter, robust guitar cable included
  • Up to 15 compatible channels (under optimal conditions) in license-free2.4 GHz band
  • Automatic frequency management
  • Prevents interference: Intelligent channel back-up allows co-existencewith Wi-Fi & Bluetooth
  • Audio effects: equalizer, de-esser, automatic gain control
  • iOS & Android app for remote control and monitoring of the system
  • Sturdy metal housing

Sennheiser EWD1-CL1 Specifications:

  • Overall System:
    • Frequency Response:  20 Hz - 20 kHz
    • Dynamic Range:  > 135 dB (A)
    • THD, Total Harmonic Distortion:  typ. < 0,1 %
    • Audio Sampling:  24 bit/48 kHz
    • Signal-to-Noise Ratio:  >/= 105 dB (A)
    • RF Frequency Range:  2,400 to 2,483.5 MHz
    • Modulation:  GFSK with back channel
    • Transmission Method:  TDMA, time diversity, frequency diversity, fast switching antenna diversity
    • Latency:  3.9 ms
    • Audio Codec:  APT-X Live
    • Operating Temperature:  – 10 °C to +55 °C
    • Storage Temperature:  – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
  • EM-D1 Receiver:
    • Latency:  Multi-frequency targets
    • RF Sensitivity:  <-90 dBm
    • RF Output Power:  Back channel 10 mW/100 mW (country-specific)
    • Audio Output:  Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
    • Low-Cut Filter:  –3 dB at 120 Hz
    • Equalizer:  7-band graphic equalizer
    • Automatic Gain Control (AGC):  Compression/expansion with automatic make-up gain function
    • Display:  OLED
    • Connection:  XLR-1/4" (6.3 mm) jack
    • Antenna Connector:  2 x Rev-SMA
    • Network Socket:  RJ45
    • Network Protocol:  Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
    • Power Supply:  12 V DC hollow jack
    • Current Consumption:  350 mA
    • Weight:  approx. 824 g
  • SK-D1 Bodypack Transmitter:
    • RF Output Power:  Adaptive, up to 100 mW (country-specific)
    • Connection:  3.5 mm jack socket, lockable
    • Weight:  approx. 85 g
    • Microphone Frequency response: 50 Hz - 20 kHz
    • Max. Input Level:  2.2 V RMS
    • Line Frequency response:  20 Hz - 20 kHz
    • Max. Input Level:  3.3 V RMS
    • Input Impedance:  1 MegaOhm
    • Input Sensitivity:  Automatic sensitivity adjustment
    • Battery Specification:  2 x AA size battery (1,5V), Operating time: typ. 6 h
    • Accupack:  BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h (optional accessory)
