Adaptive Technologies Group MM-120 MultiMount Pan and Tilt Speaker Wall Mount, 120lb WLL, Black

OUR PART #: MM-120 MFR #: MM120

Copied to clipboard

Allen Products' MultiMount MM-120 Speaker Mount supports speakers weighing up to 120 lbs., is fully adjustable in both pan and tilt aiming... ...Read more

Adaptive Technologies Group MM-120 MultiMount Pan And Tilt Speaker Wall Mount, 120lb WLL, Black Image 1
Adaptive Technologies Group MM-120 MultiMount Pan And Tilt Speaker Wall Mount, 120lb WLL, Black Image 2
Adaptive Technologies Group MM-120 MultiMount Pan And Tilt Speaker Wall Mount, 120lb WLL, Black
Our Price: $320.00
List Price: $400.00
You save 20%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

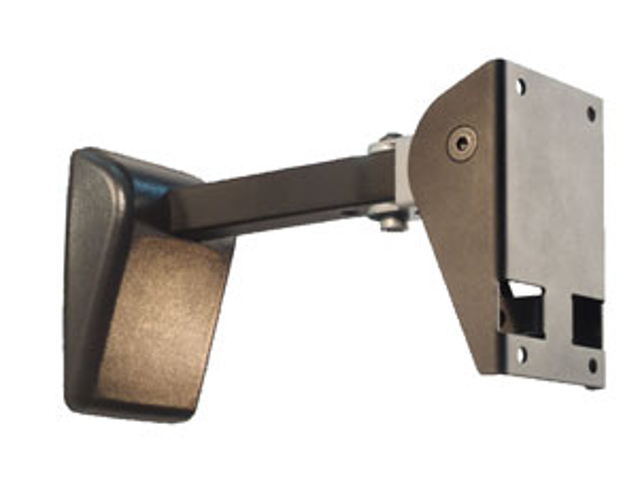

Allen Products' MultiMount MM-120 Speaker Mount supports speakers weighing up to 120 lbs., is fully adjustable in both pan and tilt aiming, and comes with a telescoping wall arm to adjust the relative distance between the speaker and the wall. This design accommodates speakers that offer four-hole mounting patterns on the back panel of the speaker. The mount is exceptionally easy to install and use with large format loudspeakers.

The MM-120's unique telescoping arm acts as a convenient carrying handle to lift speakers into place and insert into the wall mounting plate. Once inserted, the mounting plate supports the weight of the speaker, leaving the installer's hands free to complete the wiring and positioning process.

Allen Products MultiMount MM-120 Features:

  • Infinite tilt adjustments with thumb-wheel
  • Pan angle secured by clutch style lock
  • Mounts to wall studs or optional stud plate
  • Telescoping arm secures in three positions
  • Wall plate makes installation safe and quick
  • Adapts to 4 hole mounting patterns including 3-7/16" x 6-7/8" and 2-3/4" x 5" and 100 x 100 mm VESA pattern

Allen Products MultiMount MM-120 Specifications:

  • Material: Structural Steel Alloy
  • Finish: Powder Coat
  • Color: Black
  • Tilt Adjustment: 65° max.
  • Swivel Adjustment: 180° max.
  • Working Load Limit: 120 lbs. (45 kg) max.
  • Design Factor: 5:1 safety ratio
  • Net Weight: 11 lbs. (5 kg) each
  • Shipping Weight: 13 lbs. (5.9 kg) each
  • Optional Accessories: WP-16 wall stud adaptor, safety cable kits, MM-120-BP internal backing plate
