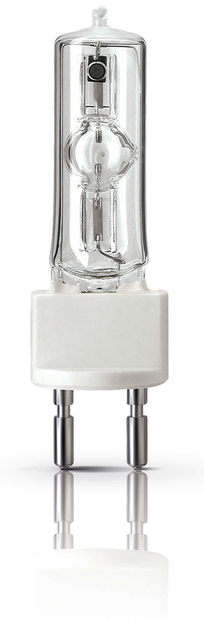

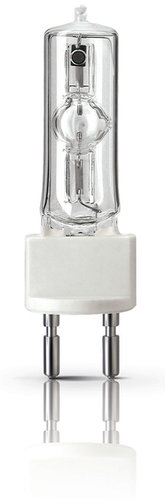

Philips MSR 575 HR
MSR Hot Restrike Daylight Color Replacement Bulb


The Philips MSR 575 HR is a Philips MSR Hot Restrike bulb.
Learn More
Our Price: $154.00
List Price: $252.80
You save 39%!
Write the first review.
Philips MSR 575 HR
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Philips MSR 575 HR is a Philips MSR Hot Restrike bulb. With its optimized color temperature and a high color rendering index, the MSR Hot Restrike creates perfect 'daylight' in any condition. Also, its single-ended lamp design enables hot re-ignition, ensuring that "daylight" lighting with superb color rendition is always available instantly. This bulb also incorporates the innovative P3 technology, developed by Philips, allowing for use at higher temperatures, and extending lifetime as well as consistency of high-quality light output.

NOTE: For professional use only-not for domestic/household use

Philips MSR575HR Specifications:

General Characteristics

  • System Description: Hot Restrike
  • Cap-Base: G22
  • Cap-Base Information: -
  • Execution: -
  • Operating Position: Any
  • Main Application: Studio/Theatre
  • Life to 50% failur EM: 1000 hr

Light Technical Characteristics

  • Color Code: -
  • Color Rendering Index: 90 Ra8
  • Color Temperature: 6000 K
  • Color Temperature Technical: 6025 K
  • Chromaticity Coordinate X: 323 -
  • Chromaticity Coordinate Y: 328 -
  • Luminous Flux Lamp EM: 40000 (min), 49000 (nom) Lm
  • Luminous Efficacy Lamp EM: 85 Lm/W
  • Color Rendering Index (SO): Ra8
  • Chromaticity Coordinate X (SO): -
  • Chromaticity Coordinate Y (SO): -
  • Color Temperature (SO): K
  • Luminous Flux (SO): Lm
  • Luminous Efficacy Lamp (SO): Lm/W

Electrical Characteristics

  • Lamp Wattage: 575 W
  • Lamp Current: 6.95 A
  • Ignition Supply Voltage: 207 (min) V
  • Dimmable: Yes

Luminaire Design Requirements

  • Pinch Temperature: 350 (max) C
  • Bulb Temperature: 700 (max) C

MSR Hot Restrike –instant daylight at any time

Product Dimensions (please refer to above diagram)

  • Overall Length C:145 (max) mm
  • Diameter D: 30 (max) mm
  • Width F: 41 (min), 42 (nom), 43 (max) mm
  • Light Center Length L: 69 (min), 70 (nom), 71 (max) mm
  • Arc Length O: 7.0 mm


General Questions


Can I return a service part once it has been installed?


Installed service parts are non returnable, unless they are defective. All defective returns are exchange only - no money will be refunded.
