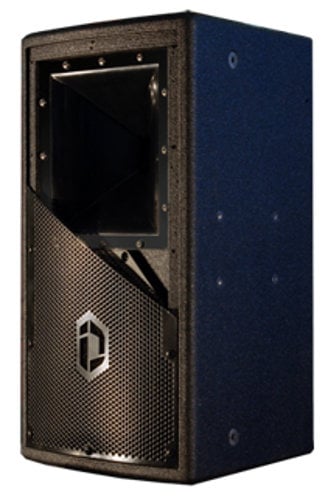

McCauley Sound ID1.108-96
8" 2-Way Full Range Loudspeaker System

OUR PART #:  ID1.108-96

The ID1.108-96 from McCauley Sound is an ultra-compact...
Learn More
Similar Products

The ID1.108-96 from McCauley Sound is an ultra-compact, modular 2-way loudspeaker featuring a single 8" cone driver and a 1.75" diaphragm compression driver mounted to a 1" exit user-rotatable 90x60 constant directivity waveguide.

Engineered for permanent installation in high output applications, this full range loudspeaker is well suited for use as primary sound reinforcement in smaller venues such as houses of worship, theaters & auditoriums, or in restaurants, lounges and bars where music is intended to dominate the foreground. Employed as part of an array, this loudspeaker will interoperate with other iDESIGN modules to build extended coverage patterns and cover larger audiences. With appropriate hardware, iD1 modules can also be incorporated with ID2, ID3, and ID4 loudspeakers to construct larger muti-tiered arrays. The ID1.108-96 also functions as elements in distributed systems for larger venues like stadiums and arenas, while its narrow profile makes it especially appropriate for delay rings and under-balcony applications.

The ID1.108-96 offers Omni-Mount compatible taps on the top and bottom of the module as wells as both sides. Twelve reinforced 3/8"-16 pick points are distributed across five faces to accommodate cable hangs of nearly any design. A wide range of array frames, developed specifically for iDESIGN, are available to facilitate arraying and suspending multiple modules as a single cluster, while both vertical and horizontal U-bracket hardware (sold separately) is tailored to each module for single-unit wall and ceiling mount installations.

McCauley Sound ID1.108-96 2-Way Full Range Loudspeaker Features:

  • (12) 3/8th Inch Eyebolt Suspension Points
  • Resonance-Neutral Dampening
  • Build Custom Coverage
  • Rotatable Waveguide
  • Omni Mount Ready
  • Discrete Channels of Power & Processing
  • Modular Building Blocks
  • Precision Array Frames
  • Curved Aesthetic
  • High-Rigidity Cone Structures
  • Arrayable Pattern
  • Optimized for Intelligibility
  • Dual Terminal-Strip Connectors
  • Perforated Steel Grill
  • 12-Ply Birch Construction
  • Durable ProCoat Elastomeric Finish

McCauley Sound ID1.108-96 2-Way Full Range Loudspeaker Specifications:

  • Performance Overview
    • Class: Full Range
    • Coverage: 90º x 60º
    • Freq. Response (-3dB): 60 Hz - 18 kHz
    • Low Freq. Response (-10dB): 55 Hz
  • Power Handling (Program)
    • Full Range: 300W
    • Low: 300W
    • High: 100W
  • Power Handling (AES)
    • Full Range: 200W
    • Low: 200W
    • High: 50W
  • Max Peak SPL
    • Full Range: 127dB
    • Low: 127dB
    • High: 134dB
  • Max Continuous SPL
    • Full Range: 121dB
    • Low: 121dB
    • High: 127dB
  • Impedance
    • Full Range: 8 Ohms
    • Low: 8 Ohms
    • High: 16 Ohms
  • Sensitivity
    • Full Range: 96dB
    • Low: 96dB
    • High: 107dB
  • Critical Filter / Crossover Data
    • Crossover Low: 1.8 kHz
    • Crossover High: 1.8 kHz
  • Construction
    • Method: CNC Machined, Dadoed, Rabbet
    • Material: 12-Ply Birch
    • Finish: Procoat
  • Product Dimensions: 10.97" x 19.19" x 11.5" (278.64 x 487.43 x 292.1 mm)
  • Net Weight: 31 lbs (14.06 kg)
  • Taper Angle: 15º
  • Taper Width: 5.31" (134.9 mm)
  • Design Properties
    • Characteristics: 2-Way, Vented, Rotatable Waveguide
    • Powering Options: Passive, Bi-Amp
  • Hardware
    • Connectors: Terminal Strips (4)
    • Grill Type: Acoustically Transparent Foam, Fitted Perforated Steel
    • Suspension: Mounting Bracket, U-Bracket, Eye-Bolt, Ball-Joint Mount
