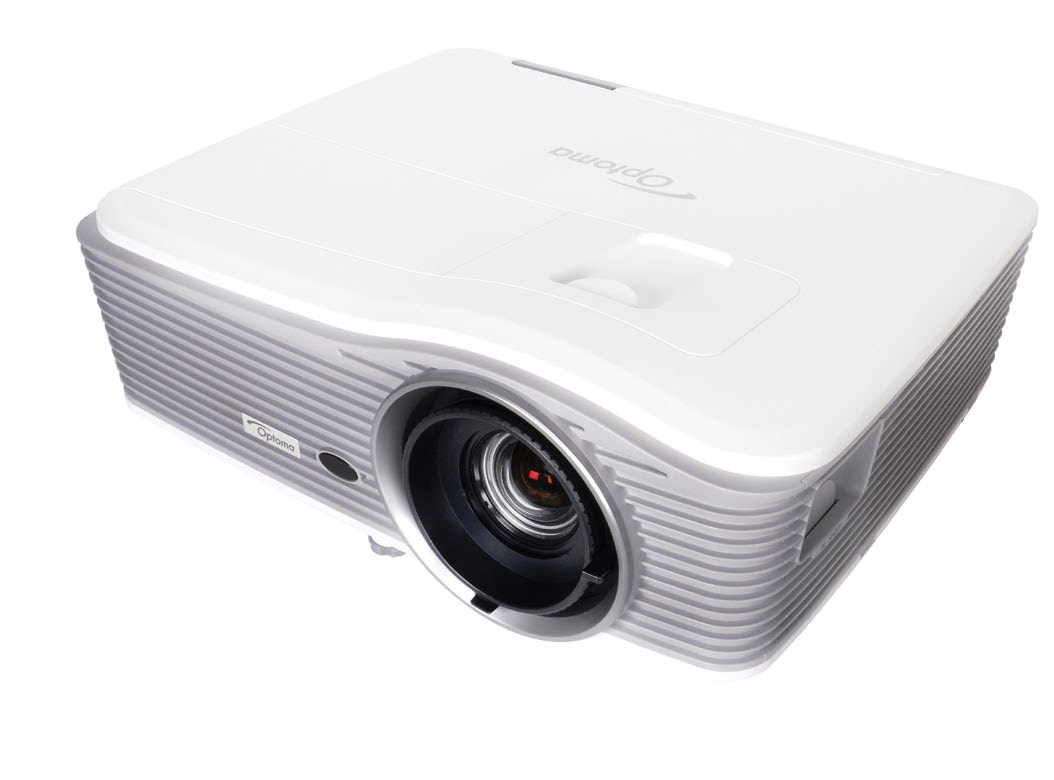

Optoma WU515T - Educational Pricing
6000 ANSI Lumens WUXGA Projector with HDBaseT


Call for price!

Recommended Accessories
Projection Calculator

Optoma's WU515T, a WUXGA professional Installation projector, is great for corporate environments, house of worship and Pro-AV installations. The DLP technology featured in the WU515T provides accurate colors and great contrast for dark and white images. This quality projector is furnished with advanced features, facilitating quick installation. Highlights include: 4-corner correction (ideal for image stacking or uneven walls), Horizontal/Vertical Lens shift and Keystone, together with 1.8x zoom ratio. All these permit quick setup and easy usability from any angle. Equipped with an array of inputs including HDBaseT, HDMI built in MHL technology allows you to connect to a wide variety of HD devices to easily display your content. In addition, the environmentally-friendly WU515T has energy-saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both money ad time by prolonging your lamp life.

Note: This is a specially priced product for educational institutions. Please call your Sales Pro at 800-356-5844 for more information on how to place your order. A faxed purchase order from your organization is usually required to fulfill this order at this price.

Optoma WU515T Projector Includes:

  • WU515 projector
  • AC power cord
  • VGA cable
  • Remote control
  • Batteries
  • Multilingual CD-ROM user's manual
  • Basic user manual
  • Warranty card

Optoma WU515T Projector Features:

  • 4-corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
  • 1.8x Zoom - excellent image from a short or long distance
  • Vertical/ Horizontal keystone and lens shift for various applications
  • Bright Projection at 6000 ANSI lumens for large installations
  • Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link, and Telnet
  • Built-in HDBaseT ideal for long cable runs in the install environment
  • V/HLens Shift
  • PC-Free
  • LAN presentation
  • Crestron RoomView®
  • PJ-Link

Optoma WU515T Projector Specifications:

  • Display Technology: Single 0.67" WUXGA chip, DLP® Technology by Texas Instruments™
  • Native Resolution: WUXGA 1920 x 1200
  • Brightness: 6000 ANSI Lumens
    • NOTE: Lamp-based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp-based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • Contrast Ratio: 10,000:1 (full on/full off)
  • Noise Level (Eco mode): 28 dB
  • Weight: 13 lbs (5.9 kg)
  • I/O Connectors: 1x HDBaseT, 1x Display port, 2x HDMI 1.4a + MHL, 2xVGA-In,1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1xAudio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3DSync vesa port, RS-232C, mini-USB (service/control), RJ45, AC power (3-pin)
  • Maximum Resolution: WUXGA (1920 x 1200)
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA, WXGA, HD, Mac
  • Video Compatibility: PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J,3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p,720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
  • Displayable Colors: 1.07 Billion
  • Projection Lens: F=17.63~31.36 mm; manual focus
  • Lamp Type: 365W
  • Lamp Life:
    • Eco/Bright: 5000/3000 (hrs)
      • NOTE: Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions
  • Throw Ratio: 1.26:1~2.16:1
    • NOTE: +/- 5% tolerance
  • Projection Screen Size: 27.9"~301.8" (0.71~7.66 m) diagonal 16:9
  • Projection Distance: 4.26ft – 25.59ft (1.3–7.8 m)
  • Zoom Type: 1.8x Manual zoom
  • Aspect Ratio: 16:10 (Native), 4:3, Auto
  • Offset: 100% (±5% Variance)
  • Horizontal Scan Rate: 15.375~91.146 KHz
  • Vertical Scan Rate: 24– 85 Hz (120 Hz for 3D feature projector)
  • Keystone Correction:
    • ± 30° Vertical
    • ± 30° Horizontal
  • Audio: 20 Watt
  • Dimensions: 16.7" W x 6.3" H x 13.5" D (424 x 160 x 344 mm)
  • Remote Control: IR and wired control
  • Power Supply: AC input 100–240V, 50–60 Hz, auto-switching
  • Power Consumption: 445W (Bright), 335W Max (ECO), <0.5W (Standby)
  • Operating Conditions: 41–113°F (5~45°C), 85% max humidity
  • Uniformity: 80%
  • Security: Kensington® lock port, security bar, password protection
  • RoHS: Compliant
  • Lens Shift:
    • Vertical: +20%
    • Horizontal: ±10% (constraints apply - see user manual for details)
  • 3D Support: Full 3D - The 3D features of Optoma projectors can only beused with compatible 3D content. Typical applications include use with 3Deducational or 3D design and modelling systems. 3D TV broadcast systems,(SKYin the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox360 are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility:
    • Side-by-Side:1080i(50/60Hz)
    • Frame-pack: 1080p(24Hz), 720p(50/60Hz)
    • Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz)
    • 3D glasses are needed and are sold separately.
    • Refer to user manual for details.
  • Speaker (Watts): Two 10-Watt (stereo)
  • Color Wheel:
    • 6 Segment; RYGCWB
  • 360’ Operation: Not supported
  • Portrait Mode: Not supported
  • Optional Wireless: Yes
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
  • Projection method: Front, rear, ceiling mount, table top
