Liberty AV DIGI-HDXL-S 150m HDBaseT HDMI, Ethernet, Bi-Directional IR Transmitter

OUR PART #: DIGI-HDXL-S

Copied to clipboard

Liberty AV Solutions' Intelix DIGI-HDXL-S extends HDMI over a single cable by incorporating HDBaseT technology. ...Read more

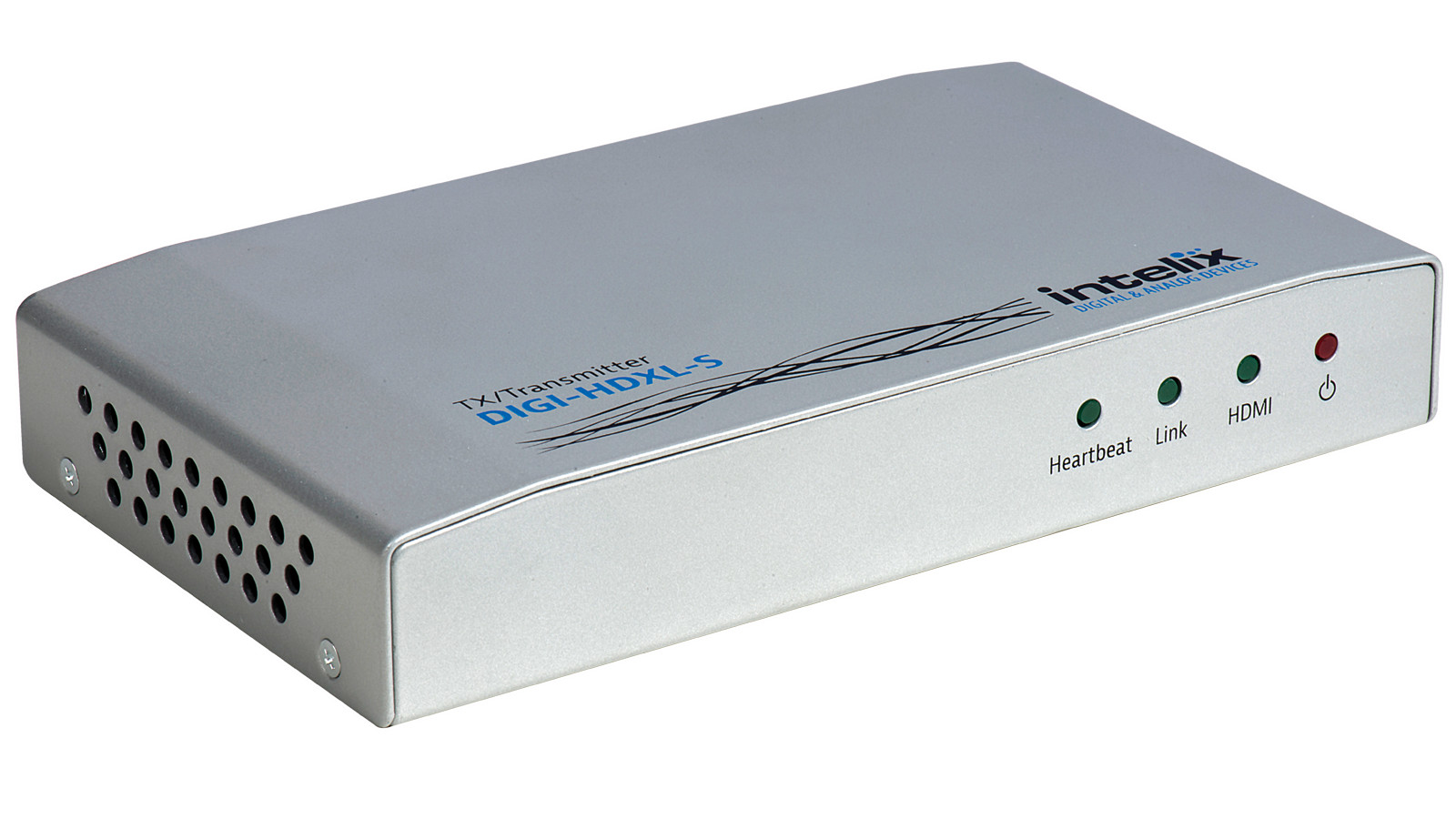

Liberty AV DIGI-HDXL-S 150m HDBaseT HDMI, Ethernet, Bi-Directional IR Transmitter Image 1
Liberty AV DIGI-HDXL-S 150m HDBaseT HDMI, Ethernet, Bi-Directional IR Transmitter Image 2
Liberty AV DIGI-HDXL-S 150m HDBaseT HDMI, Ethernet, Bi-Directional IR Transmitter Image 3
Liberty AV DIGI-HDXL-S 150m HDBaseT HDMI, Ethernet, Bi-Directional IR Transmitter
Our Price: $63.48
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Liberty AV Solutions' Intelix DIGI-HDXL-S extends HDMI over a single cable by incorporating HDBaseT technology. The DIGI-HDXL-S supports 1080p video signals up to 150 meters (492 feet) including multichannel audio. The HDMI distribution chip in the DIGI-HDXL-S sends one signal to the HDBaseT output and the other signal to the local HDMI output for a local display. The DIGI-HDXL series extenders are only compatible with Intelix XL-series HDBaseT product offerings. An HDBaseT link will not be established with other HDBaseT products.

Applications:

  • Works with Scientific Atlantic or Cisco cable boxes
  • Extension of HDMI and control signals up to 150 meters
  • Limited access to power for extenders on both ends
  • Ideal for digital signage, home theater, commercial video systems

Liberty Av Solutions DIGI-HDXL-S Intelix Features:

  • HDMI transmission up to 150m (492 ft)
  • HDMI loop out; locking power connector
  • Supports 1080P/24bit and audio formats up to 7.1 audio
  • Supports HDBaseT, CEC specifications; HDMI/HDCP compliant
  • Built-in surge protection, diagnostic LEDs
  • Bidirectional Wideband IR, RS232 and 100BaseT Ethernet pass-through
  • PoE (Power over Ethernet) - power from RX (PS not included) when used with DIGI-HDXL-R

Liberty Av Solutions DIGI-HDXL-S Intelix Specifications:

  • Input/Output Connections:
    • HDMI Input: One HDMI Type A Receptacle Connector
    • HDMI Output: One HDMI Type A Receptacle Connector
    • Twisted Pair (HDBaseT): One Shielded RJ45 Female
    • RS232: One 3-Pole Euroblock connector
    • Ethernet: One Shielded RJ45 Female
    • IR Input: One 3.5mm TRS
    • IR Output: One 3.5mm TS
    • 24V DC Power: One 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • Supported Audio, Video, and Control:
    • Maximum Video Compatibility: Deep Color 24 Bit at 1080p
    • Video Compliance: HDMI, HDCP, and CEC (Consumer Electronics Control)
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
    • Ethernet: 100BaseT
    • RS232 Baud Rate: Up to 115200 baud
  • HDBaseT Signal Characteristics:
    • Maximum Distance: 150 m (492 ft)
    • Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
    • Gain: 0 dB – 10 dB at 100 MHz
    • Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 100 m
    • Return Loss: < -30 dB at 5 KHz
    • Total Harmonic Distortion (THD): < 0.005% at 1 KHz
    • Min-Max Signal Level: < 0.3 V – 1.45 Vp-p
    • Differential Phase Error: ±10° at 135 MHz over 100 m
  • Chassis and Environmental:
    • Enclosure: Painted steel
    • Dimensions: 3.35" x 5.94" x 0.95" (85 mm x 151 mm x 24 mm)
    • Shipping Weight: 0.5 kg (1.1 lbs.)
    • Operating Temperature (Environment): 32°-104° F (0°-40° C)
    • Operating Temperature (Chassis):
      • 88° F (31° C) (S)
      • 100° F (38° C) (R)
    • Operating Humidity (Environment): 20% to 90%, Non-condensing
    • Storage Temperature (Environment): 14°-140° F (-10°-60° C)
    • Storage Humidity (Environment): 20% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • PoE Standard (Twisted Pair [HDBaseT] port) to extender: 802.3af
    • Maximum Power Consumption: 22 watts
    • Power Supply (Not Included): 24vDC / 1.5 Amp
    • ESD Protection: 15kV
    • Regulatory: CE, RoHS
  • Other:
    • Standard Warranty: 2 years
    • Diagnostic Indicators: Heartbeat, Link, HDMI, and power LEDs
    • Included Accessories: Installation Guide
    • Compatible Receivers (AV, PoE and Control): DIGI-HDXL-R

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
