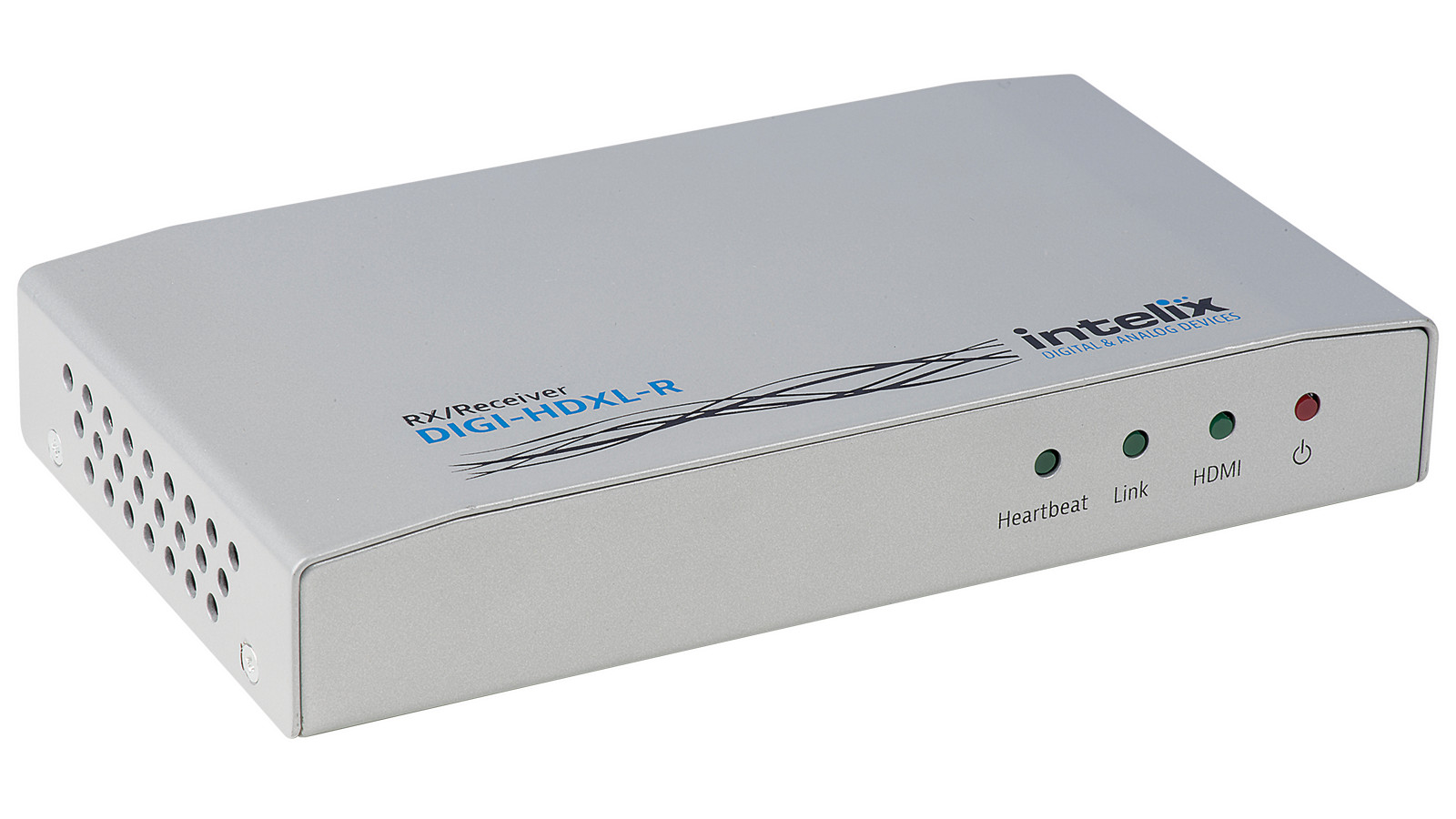

Liberty AV Solutions DIGI-HDXL-R
150 m HDBaseT HDMI Bi-Directional IR Ethernet Receiver

OUR PART #:  DIGI-HDXL-R

Liberty AV Solutions' Intelex DIGI-HDXL-R receiver extends HDMI over a single cable by using HDBaseT technology.
Learn More
Our Price: $359.96
List Price: $399.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Liberty AV Solutions DIGI-HDXL-R
Qty:
In Stock

Similar Products

Liberty AV Solutions' Intelex DIGI-HDXL-R receiver extends HDMI over a single cable by using HDBaseT technology. The DIGI-HDXL-R supports 1080p video signals up to 150 meters (492 feet) including multichannel audio. Flexible power design allows the DIGI-HDXL series extenders to be powered at either the TX or RX end, and only one power supply is required.

Applications:

  • Extension of HDMI and control signals up to 150 meters
  • Limited access to power for extenders on both ends
  • Ideal for digital signage, home theater, commercial video systems

Liberty AV Solutions DIGI-HDXL-R Intelix Receiver Features:

  • HDMI transmission up to 150m (492 ft)
  • Two-port Ethernet switch; locking power connector
  • Supports 1080p/24bit and audio formats up to 7.1 audio
  • Supports HDBaseT, CEC specifications; HDMI/HDCP compliant
  • Built-in surge protection, diagnostic LEDs
  • Bidirectional Wideband IR, RS232 and 100BaseT Ethernet pass-through
  • PoE (Power over Ethernet) - power from TX (PS not included) when used with DIGI-HDXL-S

Liberty AV Solutions DIGI-HDXL-R Intelix Receiver Specifications:

  • Input/Output Connections:
    • HDMI Output: One HDMI Type A Receptacle Connector
    • Twisted Pair (HDBaseT): One Shielded RJ45 Female
    • RS232: One 3-Pole Euroblock connector
    • Ethernet: Two Shielded RJ45 Female
    • IR Input: One 3.5mm TRS
    • IR Output: One 3.5mm TS
    • 24V DC Power: One 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel
  • Supported Audio, Video, and Control:
    • Maximum Video Compatibility: Deep Color 24 Bit at 1080p
    • Video Compliance: HDMI, HDCP, and CEC (Consumer Electronics Control)
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
    • Ethernet: 100BaseT
    • RS232 Baud Rate: Up to 115200 baud
  • HDBaseT Signal Characteristics:
    • Maximum Distance: 150 m (492 ft)
    • Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp   pattern
    • Gain: 0 dB – 10 dB at 100 MHz
    • Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 100 m
    • Return Loss: < -30 dB at 5 KHz
    • Total Harmonic Distortion (THD): < 0.005% at 1 KHz
    • Min-Max Signal Level: < 0.3 V – 1.45 Vp-p
    • Differential Phase Error: ±10° at 135 MHz over 100 m
  • Chassis and Environmental:
    • Enclosure: Painted steel
    • Dimensions: 3.35" x 5.94" x 0.95" (85 mm x 151 mm x 24 mm)
    • Shipping Weight: 1.1 lbs. (0.5 kg)
    • Operating Temperature (Environment): 32°-104° F (0°-40° C)
    • Operating Temperature (Chassis):
      • 88° F (31° C) (S)
      • 100° F (38° C) (R)
    • Operating Humidity (Environment): 20% to 90%, Non-condensing
    • Storage Temperature (Environment): 14°-140° F (-10°-60° C)
    • Storage Humidity (Environment): 20% to 90%, Non-condensing
  • Power, ESD, Regulatory:
    • PoE Standard (Twisted Pair [HDBaseT] port) to extender: 802.3af
    • Maximum Power Consumption: 22 watts
    • Power Supply (Not Included): 24vDC / 1.5 Amp
    • ESD Protection: 15kV
    • Regulatory: CE, RoHS
  • Other:
    • Standard Warranty: 2 years
    • Diagnostic Indicators: Heartbeat, Link, HDMI, and power LEDs
    • Included Accessories: Installation Guide
    • Compatible Transmitters (AV and Control): FLX-BO4A-XL
    • Compatible Transmitters (AV, PoE and Control): DIGI-HDXL-S
