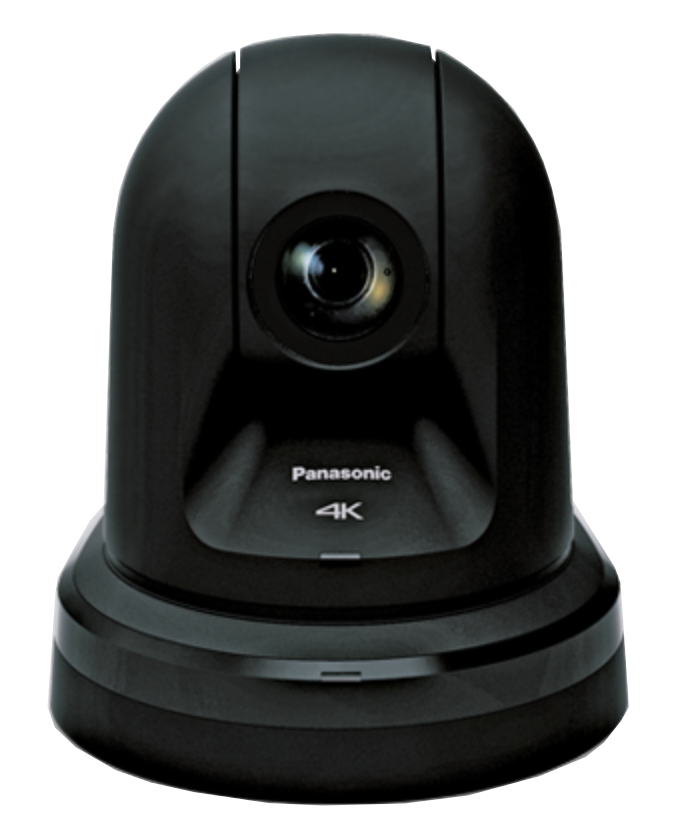

Panasonic AWUE70
Black 4K Camera, 22x PTZ with HDMI

OUR PART #  AWUE70K

Our Price: $5,250.00
List Price: $5,850.00
You save 10%!
In Stock

Recommended Accessories

The black Panasonic AW-UE70 integrated remote camera is able to deliver 4K images with excellent zoom range and exceptional pan-tilt performance. The AW-UE70 includes a variety of advanced and intelligent features, like in-camera 4K recording or 4K streaming over IP. The AW-UE70 remote camera is ready for the new demands of the industry through ultra HD resolution imagery. 4K images can be obtained in a variety of outputs including HDMI, USB and LAN. Besides its 4K capability, this camera performs extremely well in HD, also supporting 1080/50p format and 3G-SDI output.

Panasonic AW-UE70K Features:

  • Wide angle of view : Horizontal 65.1°
  • Optical Image Stabilization (OIS) with gyro sensor
  • Freeze During Preset function
  • ND filter (Auto, Thru, 1/4, 1/16, 1/64) and Night Mode
  • USB Video Class support
  • Versatile terminals
  • Output: 3G-SDI, HDMI, IP, USB (mini B)
  • Input: Genlock, Audio (Mic/Line)
  • Remote control: RS422, RS232C, IP
  • microSD card recording function
  • Camera control from iPad when it is used with optional Control Assist

Panasonic AW-UE70K Specifications:

  • Power requirements:
    • DC 12 V (Supplied AC adaptor)
    • DC 42 to 57 V (PoE+ power supply)
  • Current consumption:
    • 1.3 A (Supplied AC adaptor)
    • 0.5 A (PoE+ power supply)
  • Mass: Approx. 1.5 kg (3.30 lb)
  • Dimensions (W x H x D): 6.3" x 7.3" x 7" (160 mm × 186 mm × 179 mm) (excluding protrusions, direct ceiling mount bracket)
  • Input:
    • Power: DC 12 V IN, PoE+ (IEEE802.3at standard)
    • Audio Input: MIC/LINE *Embedded in SDI/HDMI/IP/USB
  • Output:
    • Video Output: HDMI/SDI/USB
  • Interface:
    • Remote Control: LAN/RS-232C/RS-422
  • Imaging sensors: 1/2.3 MOS
  • Lens: Optical 20x, f 4.08-81.6mm/F1.8 to 3.6
  • Horizontal resolution:
    • H 1300 TV Lines (typ) (Wide, Center) (4K mode)
    • H 1000 TV Lines (typ) (Wide, Center) (HD)
  • Output format:
    • SDI/HDMI:
      • 2160/29.97, 25p (HDMI only), 1080/59.94p, 50p, 59.94i, 50i,
      • 1080/29.97p, 25p, 1080/29.97psF, 25psF, 720/59.94p, 50p
    • USB (M-JPEG):
      • 3840x2160, 1920x1080, 1280x720, 640x360
      • (59.94Hz)30p/15p/5p (50Hz)25p/12.5p/5p,
  • Panning range: ±175°
  • Tilting range: –30° to 90°
  • Image resolution:
    • H.264:
      • 3840x2160, 1920x1080, 1280x720, 640x360, 320x180
      • (59.94Hz) 60p/30p/15p/5p (50Hz) 50p/25p/12.5p/5p
    • M-JPEG:
      • 1920x1080, 1280x720, 640x360, 320x180
      • (59.94Hz) 30p/15p/5p (50Hz) 25p/12.5p/5p
  • Supported protocol: IPv4: TCP/IP, UDP/IP, HTTP, DHCP, DNS
  • Supported controller: AW-RP50, AW-RP120G, AK-HRP200G, AW-RM50G
