Interactive Technologies CueServer 2 Pro
Lighting Control

OUR PART #:  CS-900

CueServer is unique lighting control solution featuring the most comprehensive combination of stand-alone show playback, architectural lighting control, show control...
Learn More
Our Price: $2,351.16
List Price: $2,799.00
You save 16%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Interactive Technologies CueServer 2 Pro
Qty:
In Stock

Similar Products

CueServer is unique lighting control solution featuring the most comprehensive combination of stand-alone show playback, architectural lighting control, show control, and system integration functions in one easy-to-use package.

CueServer is a robust, elegantly packaged Ethernet-based lighting controller that is small in size, but big in capabilities! A powerhouse of features, CueServer can seamlessly blend stand-alone architectural and show control functions to produce elaborate playback systems custom tailored to your specific needs. CueServer is ideal for LED displays, architectural lighting, retail projects, museum attractions, theme parks, trade show exhibits, animated signs, churches, water fountains and so much more. CueServer easily scales from the smallest single-fixture project to large-scale networked solutions.

CueServer has the capability to manage entertainment style lighting playback and sophisticated architectural control simultaneously. Networked button stations, LCD touch screens, and apps for mobile devices round out the CueServer family.

CueServer can function as a simple stand-alone playback controller, an architectural lighting processor, a show controller, or even as a wireless remote lighting console.

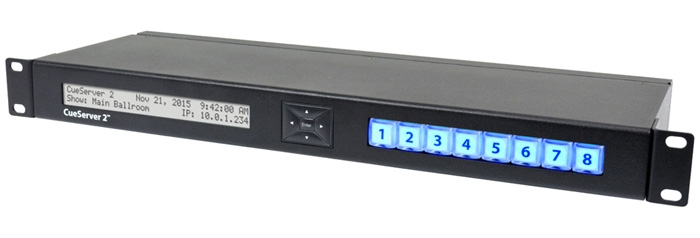

The CueServer 2 Pro (CS-900) is housed in a sturdy 1U rack-mount enclosure with removable brackets.

CueServer 2 Pro features dual LAN ports for splitting Ethernet-based lighting and management data onto separate networks if desired.

CueServer 2 Pro boasts an innovative modular DMX port system. Four bi-directional DMX ports on the back of
the unit are user-configurable with any of seven available port modules. These interchangeable modules allow CueServer 2 Pro to be customized for different installation environments eliminating the need for external adaptors.

The front-panel of CueServer 2 Pro has eight customizable function buttons. Each button has fully controllable RGB backlighting and field-replaceable legends for project personalization. A navigation keypad is used to operate the onboard LCD menu for basic system settings, show selection, and macro execution.

NOTE: This item requires output modules to send DMX, see the Accessories tab for options. For more information on this and other products, please contact your Sales Pro.

Interactive Technologies CueServer 2 Pro Features:

  • Completely self-contained lighting playback,architectural processor, and DMX fade engine
  • Seamlessly handles Cue Lists, Presets, and Streams
  • Controls up to 32 universes of DMX or 32 independentplayback timelines
  • Dual Ethernet ports for separate configurablelighting data and management networks
  • Flexible module-based bi-directional DMX ports forcustom jack configurations
  • Front-panel configurable function buttons with RGBbacklighting and field-replaceable legends
  • Creates lighting scenes directly or captures fromexternal sources
  • Powerful CueScript scripting language
  • Real-Time clock with astronomical functions andcalendar events
  • Built-in web server for hosting custom interactiveweb pages
  • Multi-show storage and removable Micro SD memory card
  • Button stations and LCD touchscreens
  • System integration via Ethernet, Serial, Digital I/O,and Audio
  • Easily interfaces with Crestron, AMX, Vantage,Control 4, Medialon, Savant and other automation systems
  • Native programming environment for Mac and Windows
  • 1U rack-mounted enclosure with removable brackets

Interactive Technologies CueServer 2 Pro Specifications:

  • General
    • Form Factor: DIN Rail
    • Memory Card: Micro SD
    • Max. Memory: 32GB
    • Shows per Card: Limited only by available SD Card storage space
  • Capacity (per show)
    • DMX Universes: 2 Universes for base configuration
                                 Up to 32 Universes, available as add-on options
    • Playbacks: Up to 32, depending on number of Universes
    • Cues: Static and Streaming: 1,000,000 *
    • Cue Stacks: Unlimited *
    • Groups: 100,000 *
    • Macros: 100,000 *
    • Global Rules: 1,000 *
    • Timer Events: 1,000 *
    • External Button Stations: 1,000 *
    • Audio Clips: Unlimited *
    • Web Content: Unlimited *
                                           * limited only by available SD Card storage space
  • Connections
    • Power: 30V DC (12V DC Nominal), 12 Watts, 2.1mm Input Jack
    • DMX Ports: (4x) Bi-directional DMX module slots for custom configuration of preferred jack type
    • DMX Jacks: Terminals
    • Network: (2x) RJ45, 10/100 Base-T Ethernet (Dual-LAN)
    • I/O: (2x) 5-position pluggable terminal blocks for RS-232 and RS-485 serial ports (2x) 10-position pluggable terminal blocks for 8 contact closure inputs and 8 low-voltage digital outputs and auxiliary 5VDC output
    • USB: 1 Type-A USB Host Port
               1 Micro-B USB Device Port
    • Audio: (2x) 3.5mm (1.4") Jacks for stereo input/output
  • Protocols
    • Ethernet: UDP, TCP, HTTP, Telnet, SNTP, sACN, KiNET v1/v2, CueScript, CueStation
    • RS-232, RS-485: User-Defined ASCII, CueScript
  • User Interface
    • LCD: 40 Character x 2 Line (Black on White)
    • Menu Buttons: 5-Way Joystick Navigation Switch
    • Function Buttons: (8x) User-Defined Function Buttons with RGBLEDs
  • Automation
    • Real Time Clock: Battery-backed, 1 second resolution
    • Event Triggers: Time of day, day of week, day of month, week of month, date range, astronomical time (relative to sunrise or sunset +/- specified offset)
    • Scripting: CueScript 2
    • Event Rules: Unlimited
    • Web Hosting: Apache HTTP Server
  • Software
    • Programming: CueServer Studio 2 desktop application (Mac OS X, Windows), with offline editing and remote access
    • Apps: CuePad, Figment DMX, and 3rd party apps
  • Physical
    • Width: 17.1" (435 mm) without mounting brackets
                 19.0" (483 mm) with mounting brackets
    • Depth: 6.0" (153 mm)
    • Height: 1.73" (44 mm)
    • Weight: 0.9 lbs. (0.41 Kg)
  • Environmental
    • Operating Temperature: -13° to 158° F (-25° to 70° C)
    • Storage Temperature: -40° to 176° F (-40° to 80°C)
    • Relative Humidity: 5% to 95% noncondensing
    • Altitude: 10,000 feet maximum
Terminal Block Module with IDC Terminals, for CueServer 2 Pro
Interactive Technologies MOD-TB-IDC Terminal Block Module with IDC Terminals, for CueServer 2 Pro
The MOD-TB-IDC from Interactive Technologies is an terminal block module with IDC terminals, designed for use with Interactive Technologies' CueServer 2 Pro.
42.00 50.00 16

Usually ships in 7-14 business days.
Need it sooner? Call us!
Terminal Block Module with Screw Terminals for CueServer 2 Pro
Interactive Technologies MOD-TB-ST Terminal Block Module with Screw Terminals for CueServer 2 Pro
The MOD-TB-ST from Interactive Technologies is a terminal block DMX module with screw terminals. This module is designed for use with the Interactive Technologies CueServer 2 Pro lighting controller. With its unique field-replaceable ...
42.00 50.00 16

Usually ships in 7-14 business days.
Need it sooner? Call us!
5-Pin Female Module for CueServer 2 Pro
Interactive Technologies MOD-X5F 5-Pin Female Module for CueServer 2 Pro
The MOD-X5F from Interactive Technologies is a 5-pin XLR female module designed for use with Interactive Technologies' CueServer 2 Pro.
42.00 50.00 16

Usually ships in 7-14 business days.
Need it sooner? Call us!
5-Pin Male XLR Module for CueServer 2 Pro
Interactive Technologies MOD-X5M 5-Pin Male XLR Module for CueServer 2 Pro
The MOD-X5M from Interactive Technologies is a 5-pin XLR male module designed for use with Interactive Technologies' CueServer 2 Pro.
42.00 50.00 16

Usually ships in 7-14 business days.
Need it sooner? Call us!
3 Pin Female Module for CS-900
Interactive Technologies MOD-X3F 3 Pin Female Module for CS-900
The Interactive Technologies MOD-X3F is a optional DMX 3-pin XLR female module for the CueServer 2 Pro.
42.00 50.00 16

Usually ships in 7-14 business days.
Need it sooner? Call us!
3 Pin Male Module for the CS-900
Interactive Technologies MOD-X3M 3 Pin Male Module for the CS-900
The Interactive Technologies MOD-X3M is a optional DMX 3-pin XLR male module for the CueServer 2 Pro.
42.00 50.00 16

Usually ships in 7-14 business days.
Need it sooner? Call us!
