Radio Design Labs RU-NL2P
Network To Line Level Interface, Dante Input, 2 Balanced Out With PoE


Our Price: $408.73
List Price: $585.81
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

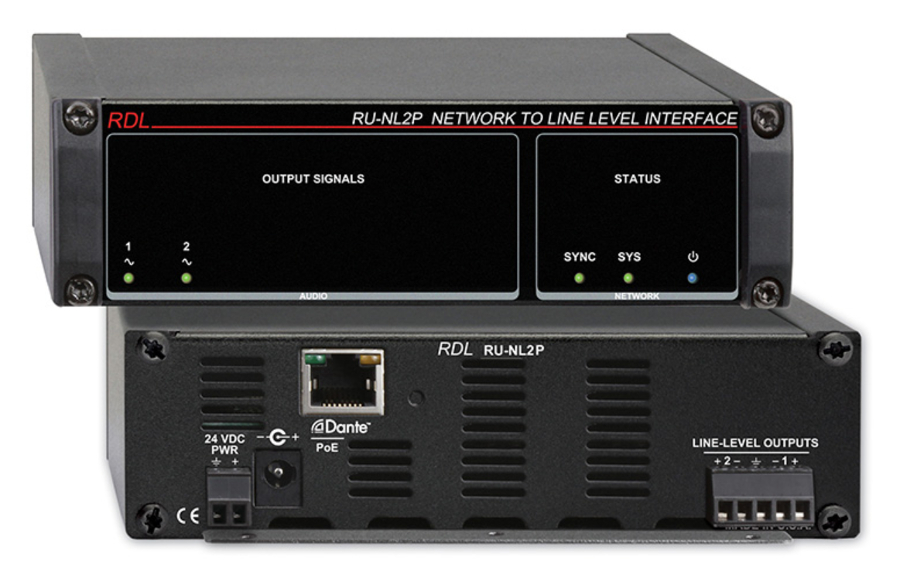

The Radio Design Labs RU-NL2P modules are Dante audio network interface products compatible with line-level audio equipment inputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.

The RU-NL2 is a high quality converter that provides professional line-level outputs from two Dante network audio channels. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. The professional output directly interfaces with other professional and commercial equipment without the need for additional gain. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom.

One front-panel green signal LED corresponds to each of the Dante input channels. Received audio level is indicated on the variable-intensity LED indicator, facilitating setup when a networked computer is not connected at the module’s location.

The RU-NL2 is powered from an external 24 Vdc power supply, available separately. The RU-NL2P is equipped to operate from a PoE enabled network switch. The RU-NL2P will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an RU-NL2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.

The RU-NL2’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems.

Radio Deisgn Labs RU-NL2P Features:

  • Converts (2) Dante network audio signals toprofessional line level
  • Line-level outputs provide +4 dBu with > 18 dBheadroom
  • Exceptional low-noise and low-distortion performance
  • Crosstalk below the noise floor
  • Signal LEDs indicate audio for each of the Danteaudio sources
  • High resolution 24 bit digital to analog conversion
  • Legendary RDL analog filtering enhances superb audioperformance
  • LED indicators show network sync status
  • Outputs mute when digital audio inputs are inactive
  • Normal or hot-standby operation from PoE
  • Equipped for rack mounting or surface mounting

Radio Deisgn Labs RU-NL2P Specifications:

  • Network Connector: RJ45 with Link and Speedindicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Outputs (2): Balanced, detachable terminal block
  • Power Connections (2): Power Jack; DetachableTerminal Block
  • Ambient Operating Environment: 0° C to 40° C
  • Dimensions (W x H x D): 5.8 x 1.7 x 5.2" (15 x 4.3x13.2 cm)
  • Package Dimensions: 6 x 6 x 2.625"
  • Shipping Weight: 1.582 lbs
