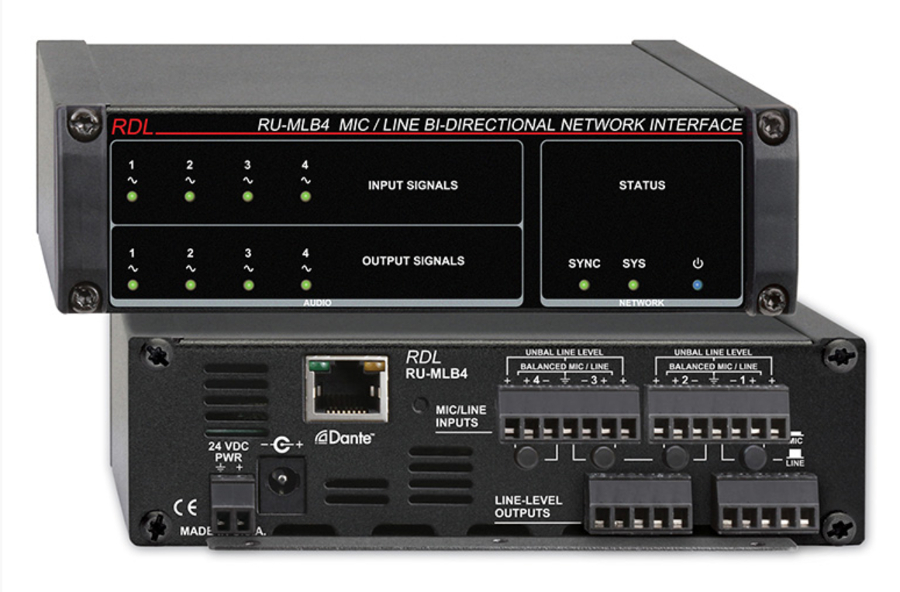

Radio Design Labs RU-MLB4
Mic/Line Bi-Directional Network Interface

OUR PART #  RU-MLB4

Our Price: $575.27
List Price: $824.50
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Radio Design Labs RU-MLB4 modules are Dante audio network interface products compatible with microphones and line-level audio equipment inputs and outputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations.The RU-MLB4 is a high quality converter that provides professional line-level outputs from four Dante network received audio channels. It also converts four professional or consumer line-level sources, or dynamic or condenser microphones to Dante network audio channels.

Radio Design Labs RU-MLB4 Features:

  • Interfaces (4) Dante inputs and (4) Dante outputs
  • Converts (4) standard mic or line audio sources to Dante network channels
  • Each input is switch-selectable for mic or line
  • No user or installer gain adjustments are required
  • Automatic microphone gain of 40 dB for condenser mics and 60 dB for dynamic mics
  • P48 phantom is provided on each microphone input
  • Line-level inputs accept unbalanced -10 dBV orbalanced +4 dBu signals with > 18 dB headroom
  • Front-panel signal LED for each audio input
  • Converts (4) Dante network audio signals to balanced line level
  • Line-level outputs provide +4 dBu with > 18 dB headroom
  • Signal LEDs indicate audio for each of the received network signal channels
  • High resolution 24 bit analog to digital and digital to analog conversion
  • Legendary RDL analog filtering enhances superb audio performance
  • LED indicators show network sync status
  • Normal or hot-standby operation from PoE (ModelRU-MLB4P)
  • Equipped for rack mounting or surface mounting

Radio Design Labs RU-MLB4 Specifications:

  • Microphone Inputs:
    • Inputs (4): Balanced, detachable terminal block
    • Gain: Automatic; 40 dB for condenser mics, 60 dB for dynamic mics
  • Dimensions (W x H x D): 5.8 x 1.7 x 5.2" (15 x 4.3 x13.2 cm)
  • Shipping Weight: 1.78 lbs
Rack Adapter for (3) RACK-UP Series Modules
Radio Design Labs RU-RA3R Rack Adapter for (3) RACK-UP Series Modules
The RU-RA3R from RDL rack mounts (3) RACK-UP modules in fixed or mobile installations. Metal RACK-UP series products drop into the chassis, slide into position and are secured by tightening two screws provided with the RACK-UP product ...
56.25 75.25 25
In Stock
10.4" Rack Mount for 1 Rack-Up Series Product
Radio Design Labs RU-HRA1 10.4" Rack Mount for 1 Rack-Up Series Product
Radio Design Labs' Ru-HRA1 rack mounts 1 RACK-UP module or mounting frame for AMS accessories.  Fits 10.4" racks.Shipping Weight: 0.34 lbsPackage Dimensions: 2" x 2" x 12.25" (5.08 x 5.08 x 31.12 cm)
29.29 39.17 25
In Stock
Mounting Bracket for RACK-UP Series
Radio Design Labs RU-BR1 Mounting Bracket for RACK-UP Series
The RU-BR1 mounts an RDL 'RACK-UP' module above or below a horizontal surface.
33.83 39.92 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
DIN Rail Adapter for Rack-Up
Radio Design Labs DRA-35R DIN Rail Adapter for Rack-Up
The DRA-35R provides DIN rail mounting for any RDL RACK-UP® or MAX RACK-UP module, allowing full access to the front and rear panels of the mounted modules. The DRA-35R attaches to a 35 mm DIN Rail.
17.27 20.38 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
