RDL RU-NL4P Network to Line Level Interface, Dante Input, 4 Balanced Line Outputs, with PoE

OUR PART #: RU-NL4P MFR #: RU-NL4P

Copied to clipboard

Radio Design Labs' RU-NL4P modules are Dante audio network interface products compatible with line-level audio equipment inputs. ...Read more

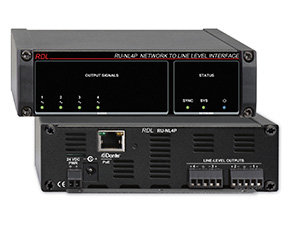

RDL RU-NL4P Network To Line Level Interface, Dante Input, 4 Balanced Line Outputs, With PoE Image 1
RDL RU-NL4P Network To Line Level Interface, Dante Input, 4 Balanced Line Outputs, With PoE
Our Price: $709.20
List Price: $945.60
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$20/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radio Design Labs' RU-NL4P modules are Dante audio network interface products compatible with line-level audio equipment inputs. These modules are designed to be mounted in equipment racks, closets, conference tables and on shelves or backboards in commercial/industrial installations. The RU-NL4 is powered from an external 24 Vdc power supply, available separately. The RU-NL4P is equipped to operate from a PoE enabled network switch. The RU-NL4P will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an RU-NL4P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply. The RU-NL4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations.

Radio Design Labs RU-NL4P Module Features:

  • Converts Four Dante Network Audio Signals to Professional Line Level
  • Line-Level Outputs Provide +4 dBu with > 18 dB Headroom
  • Exceptional Low-Noise and Low-Distortion Performance
  • Crosstalk Below the Noise Floor
  • Signal LEDs Indicate Audio for Each of the Four Dante Audio Sources
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • LED Indicators Show Network Sync Status
  • Outputs Mute when Digital Audio Inputs are Inactive
  • Normal or Hot-Standby Operation from PoE (Model RU-NL4P)
  • Equipped for Rack Mounting or Surface Mounting

Radio Design Labs RU-NL4P Module Specifications:

  • Network Connector: RJ45 with Link and Speed indicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
  • Bit Depth Supported: 24 bits
  • Audio Operating Levels: -18 dBFS = +4 dBu
  • Outputs (4): Balanced, detachable terminal block
  • Output Level: +4 dBu (nominal)
  • Output Impedance: 150 O balanced; 75 O unbalanced
  • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
  • THD+N: < 0.05%
  • Noise below +4 dBu: < -80 dB (output active); < -95 dB (outputs muted)
  • Crosstalk: < 85 dB (20 Hz to 20 kHz)
  • Headroom above +4 dBu: > 18 dB
  • Indicators (9): Power In (1); Audio Signal LEDs (4), Network Sys and Sync (2), Ethernet Link and Speed (2)
  • Power Connections (2): Power Jack; Detachable Terminal Block
  • Ambient Operating Environment: 0° C to 40° C
  • Power Requirement: 24 Vdc @ 110 mA, or PoE (RU-NL4P)
  • PoE (RU-NL4P): Class 0, IEEE 802.3af
  • Dimensions (WxHxD): 5.8" x 1.7" x 5.2" (15 cm x 4.3 cm x 13.2 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 6" x 6" x 2.625"
  • Shipping Weight: 1.601 lbs.
  • WEEE weight: 1.341 lbs.
  • Tariff code: 8517.18.0050
