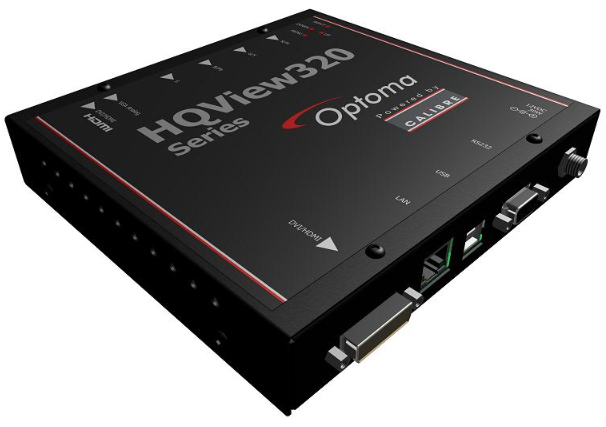

Optoma HQView320
Compact Projector Image Processor with Edge Blending and Warping, DVI, and SDI

OUR PART #  HQV320

Our Price: $3,388.00
List Price: $6,767.00
You save 50%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Optoma HQView320 HQV™ Scaler with Warp and Edge Blend offers Best in Class professional image processing in a compact and affordable unit.

Optoma, in partnership with Calibre, has worked to produce special versions of Calibre’s edge blending and warping products, optimized for use with Optoma's ProScene series of projectors. This unique collaboration delivers reduced complexity and setup time needed to edge blend multiple ProScene projectors, and is covered by the industry-leading ProScene technical support services should you need assistance with your edge blending requirements.

Edge Blending Explained
Some applications call for a brighter and higher resolution image than can be provided by a single projector alone, requiring a single image to be projected from multiple projectors. Unless done well, the image could show visible "bands" showing overlap of the projected images. Edge-blending technology takes care of this problem through elimination of the visible banding to produce a single bright, high resolution image across the projection surface. Edge blending an array of multiple projectors makes it possible to create very bright, very wide high-resolution projection displays. The HQView320 lets you precisely control multiple, edge-blended images quickly, easily, and seamlessly.

Keeping end-user applications in mind, the HQView320 is designed to let you expertly and seamlessly edge-blend multiple, curved images on all 4 sides using an unlimited number of projectors. You'll be able to precisely control edge-blended images and warp displays to fit virtually any projection surface – flat or curved (for more information, see the "Optoma Simple Guides" under the "Documentation" tab above).

The Optoma Advantage
Traditional blending solutions require complicated, time-consuming configuration with many incompatibilities between blending solutions and projectors. The Optoma blending solution resolves and eliminates this issue. Each of Optoma's ProAV projector models has been meticulously tested, including the HQView320, with a series of optimized presets developed to greatly reduce the complexity and setup time for blending projects.

If help is needed with your blending project, uniquely, Optoma's industry-leading ProAv support team is available to assist your complete blending project – blending boxes and projectors as a single system – greatly simplifying the support process for you, and enabling us to help you in quickly and efficiently getting your blending projects on track.

For more than a decade, Optoma has been one of the world’s foremost projector designers and manufacturers - among very few companies focusing exclusively on projectors.

Today the Optoma range exemplifies the evolution of projection expertise, honed and refined through manufacturing and support of millions of projectors worldwide. This skill and knowledge has been poured into their products and support services, designed specifically for demanding pro applications, such as:

  • Higher education
  • Lecture theaters
  • Houses of worship
  • Museums
  • Conference rooms
  • Digital signage
  • Stage shows
  • Live events
  • Projection mapping
  • Auditoriums
  • Boardrooms
  • Broadcast studios
  • Large classrooms
  • Exhibitions
  • Meeting rooms
  • Post production
  • Theater
  • Trade shows

Harnessing the potent capabilities of the Reon™ video processor from IDT running state-of-the-art HQV algorithms within expertly designed hardware and firmware from Calibre, Optoma's HQView320 is a high-performance yet compact image scaler with HDMI/DVI/Component/VGA inputs and HDMI/DVI output, to provide stunning image quality for Broadcast, professional, and corporate AV users.

This exceptional unit includes 4-sided soft edge blend for seamless multiple projector blending, and flexible geometry correction functions which can correct image shape and projector misalignment, via drag and drop of each image corner, via pin, barrel, rotation, or via keystone and rotation.

The HQView320 also supports full warp-mapping. Easy warp map creation is provided by an included flexible and intuitive PC application, or 3rd party generated warp maps can also be processed from automatic image alignment systems. This makes the HQView320 great for dual overlaid projector alignment in 3D projection systems.

Automatic Geometric Alignment
The HQView320 is Scalable Ready certified, which means that it can be used with Scalable Display Technologies products, providing automatic geometric alignment of displays. This camera-based, software-driven system automatically aligns displays with remarkable accuracy and speed, to even further simplify the setup of warping and blending of projects.

Optoma HQView320 Features:

  • Best in class professional image processing in a compact, affordable module
  • Superior de-interlacing reduces image flicker and artifacts
  • Front LCD Menu control
  • Remove picture noise from poor quality video sources, improve image detail
  • Powerful geometry correction for off-axis projection, pin/ barrel, and image rotation
  • 4-Sided soft edge blend for tiling multiple projectors to produce large images
  • Flexible warp mapping for curved screen projection, simulation, and 3D alignment
  • HDMI, DVI, VGA Analog, Component inputs for signals up 1080p & WUXGA
  • HDMI/DVI output up to 1080p/WUXGA
  • Flexible color calibration controls
  • Gamma controls
  • 10-bit signal inputs, 12-bit internal processing
  • Selectable processing versus latency: best picture and low latency modes
  • Ultra low latency as low as 0.25-frame with progressive inputs, 1.25-frames with interlaced inputs
  • USB port for in-field firmware updates
  • Programmable customer logo on menu
  • TCP/IP remote control and Web Server
  • Easy to navigate self-explanatory OSD menus
  • Motion adaptive per pixel video de-interlacing, HD & SD
  • Multi-directional diagonal de-interlace filter
  • Automatic 3:2 & 2:2 pull-down detection with automatic film/video/video over film detection
  • Chroma and Luma transient improvement
  • Edge anti-aliasing
  • 4-field full resolution SD & HD processing
  • 4D Motion, Noise Adaptive HQV noise reduction for spatial and temporal noise
  • Codec noise reduction for mosquito and block compression noise
  • Powerful geometry correction capabilities
  • Image rotation, pin/barrel correction
  • 4-Sided soft edge blend
  • Flexible warp mapping

Optoma HQView320 Quick Specifications:

  • Inputs
    • 1x Component analog video YPbPr(S) or RGBS/RGsB via 3 or 4 x BNC jack
    • 1x DVI/HDMI with HDCP via DVI-I connector, supports HDMI with HDCP, 8-/10-/12-bit video compatible
    • 1x VGA analog via DVI-I connector (common with DVI/HDMI input
  • Supported video input formats:
    • HD: 720p, 1080i, 1080psf (psf digital only), 1080p23.97/24/25/30, 1080p30, 1080p59.94, 1080p60
    • ED: 480p, 576p
    • SD: 625i (576i), 525i (480i)
      Common Vesa graphics formats from 640x480 to 1920x1200 (with reduced blanking for 1920x1200 and 1600x1200 modes)
  • Outputs
    • 1x DVI/HDMI with HDCP
      (HDMI with deep color 8-/10-/12-bit support, via DVI connector.)
    • 1x DVI/HDMI with HDCP via DVI-I connector, supports HDMI with HDCP, 8-/10-/12-bit video compatible
    • 1x VGA analog via DVI-I connector (common with DVI/HDMI input)
  • Supported Output formats:
    • Common VESA formats from 640x480 to 1920x1200, 720p, 1080p
    • Selectable I/O lock mode or frame rate conversion mode
    • Selectable aspect ratio conversion or incoming aspect ratio preserve mode
  • User Controls
    • Remote control via RS232, TCP/IP, API, and Web Server
    • PC-based Warp Map Generator tool.
    • Keypad for OSD menu access
    • USB port for uploading software updates and new features
  • Power Requirements
    • 12VDC @approx 1.5A
    • External 100-265VAC PSU included
  • Warranty
    • 3-years return to base warranty covers parts and labor, shipping excluded.
