Optoma HQV530
Universal HQV Scaler–Switcher/Scan Converter with Warp Mapping, Edge Blend, 3G-SDI I/O, and LCD Displa


Call for price! Not available online.
List Price: $15,387.00

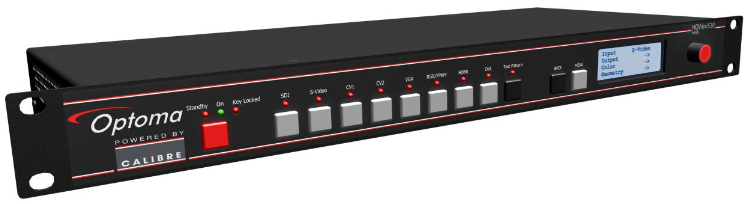

Optoma's HQView530 HQV™ is a Universal HQV™ Scaler–Switcher/Scan Converter with Warp Mapping, Edge Blend & 3G-SDI In/Out and LCD display for fast easy set-up in the field.

Optoma, in partnership with Calibre, has co-produced special versions of Calibre's edge blending and warping products, optimizing them for use with Optoma's ProScene line of projectors. This unique partnership has brought about a reduction in complexity and setup time for edge blending of multiple ProScene projectors, and is covered by Optoma's industry-leading ProScene technical support services if you should need assistance with your edge blending needs.

Edge Blending Explained
Some applications may require a brighter and higher resolution image than can be provided by a single projector. When this situation arises and more than one projector is needed for projection of single images, unless done well, the image displayed can often include visible "bands", showing overlap of the projected images, and interfering with image clarity. Edge-blending technology  is the solution to this problem, eliminating the visible banding, and producing a single bright, high resolution image across the projection surface, using multiple projectors. The HQView530 gives you precise control of multiple, edge-blended images quickly, easily, and seamlessly.

Mindful of end-user applications, the HQView530 is made to let you expertly and seamlessly edge-blend multiple, curved images on all 4 image edges using an unlimited number of projectors, offering precise control of edge-blended images and warp displays to fit practically any projection surface – flat or curved (for more information, see the "Optoma Simple Guides" under the "Documentation" tab above).

The Optoma Advantage
Traditional blending solutions can require complicated and time-consuming configuration with compatibility issues between blending solutions and projectors. Optoma's blending solution resolves and eliminates these issues, as each of Optoma's ProAV projector models has been rigorously tested with the HQView530 and a series of optimized presets developed to greatly lower blending project complexity and setup time.

If help is needed with your blending project, uniquely, the industry-leading Optoma ProAv support team is ready to assist with your complete blending project – blending boxes and projectors as a single system – helping to greatly simplify the support process for you, and allowing us to offer support to quickly and efficiently get your blending projects on track.

For over 10 years, Optoma has been one of the world’s foremost projector designers and manufacturers - among the very few companies that focuses exclusively on projectors.

Currently, the Optoma range exemplifies the evolution of projection expertise, honed and refined through manufacturing and support of millions of projectors worldwide, with this expertise having been integrated into their products and support services, and keeping an eye toward demanding pro applications, including:

  • Higher education
  • Lecture theaters
  • Houses of worship
  • Museums
  • Conference rooms
  • Digital signage
  • Stage shows
  • Live events
  • Projection mapping
  • Auditoriums
  • Boardrooms
  • Broadcast studios
  • Large classrooms
  • Exhibitions
  • Meeting rooms
  • Post production
  • Theater
  • Trade shows

Harnessing the power of the IDT Reon™ video processor running state-of-the-art HQV algorithms within skillfully designed hardware and firmware from Calibre, the HQView530 is a high-performance yet compact image scaler featuring HDMI/DVI/Component/VGA inputs and HDMI/DVI output, all offering exceptional image quality for Broadcast, professional, plus corporate AV users.

This exceptional unit includes 4-sided soft edge blend for seamless multiple projector image blending, and flexible geometry correction functions which can rectify image shape and projector misalignment using drag and drop of each image corner, using pin, rotation, barrel, or using keystone and rotation.

The HQView530 also features full warp-mapping capability, with this capability brought in by an included flexible and intuitive PC application. In addition, 3rd party generated warp maps can also be processed from automatic image alignment systems, making the HQView530 great for dual overlaid projector alignment in 3D projection systems.

This extraordinary unit comes with 3G-SDI in and out connectivity plus backwards compatibility with SDSDI and HDSDI. A Genlock input is also provided for studio/staging, and in-camera use, along with support for bi or tri-level sync, as well as black & burst.

Automatic Geometric Alignment
Scalable Ready certified, the HQView530 can be used with Scalable Display Technologies products for automatic geometric display alignment. This software-driven, camera-based system auto-aligns displays with remarkable speed and accuracy, even further simplifying setup of the blending and warping of projects.

Optoma HQView530 Features:

  • Best in class professional image processing in a compact affordable 1U format
  • Front panel jog-wheel and LCD display for fast easy set-up in the field
  • Use as a routing switcher and universal interface for 3G-SDI, HD-SDI, DVI, or HDMI switching and distribution systems, projectors, and displays
  • Improve video image quality with better detail and clarity
  • Superior de-interlacing reduces image flicker and artifacts
  • Remove picture noise from poor quality video sources
  • Powerful geometry correction for off-axis projection, pin/ barrel, image rotation
  • 4-Sided soft edge blend for tiling multiple projectors to produce large images
  • Flexible warp mapping for curved screen projection, simulation and 3D alignment
  • Genlock and I/O Lock for in-camera and edge blend use
  • 3G-SDI, HDMI, DVI, VGA Analog, Component YPbPr, RGsB/RGBS, Composite, and S-Video inputs with signal compatibility up to 1080p & WUXGA
  • 3G-SDI, HDMI/DVI & VGA Analog outputs
  • Motion adaptive per pixel video de-interlacing, HD & SD
  • Multi-directional diagonal de-interlace filter
  • Automatic 3:2 & 2:2 pull-down detection with automatic film, video, and video over film detection
  • Chroma and Luma transient improvement
  • Edge anti-aliasing
  • 4-field full resolution SD & HD processing 4D Motion, Noise
  • Adaptive HQV noise reduction for spatial and temporal noise
  • Codec noise reduction for mosquito and block compression noise
  • Direct input selection keys allow input selection without using menu system
  • Flexible color calibration controls
  • Gamma controls 10-bit signal inputs, 12-bit accurate internal processing
  • Selectable processing versus latency: best picture and low latency modes
  • Ultra low latency: as low as 0.25-frame at progressive inputs, as low as 1.25-frames at interlaced inputs
  • I/O Lock, Genlock/Frame Sync and Free Run selectable output modes
  • Flicker filter for interlaced output modes
  • USB port for in-field firmware updates
  • TCP/IP remote control and Web Server
  • Easy to navigate self-explanatory front panel menus
  • Powerful geometry correction capabilities
  • Pan, Zoom, Tilt Image rotation, pin/barrel correction
  • 4-Sided edge blend with 48-bit processing & multi-region black level correction Flexible warp mapping

Optoma HQView530 Technical Specifications:

  • Inputs
    • 1 x HDMI with HDCP, 8-/10-/12-bit video compatible, 10-bit internal processing depth. Audio strip-off of SPDIF compatible formats
    • 1 x DVI with HDCP
    • 1 x VGA Analog via 15HDD
    • 1 x 3G-SDI, accepts 3G, HD, and SD SDI signals via BNC supports 4:2:2 and 4:4:4 formats with audio de-embed
    • 2 x Composite Video CVBS (NTSC, PAL, and SECAM),
    • 1 x via BNC jack and 1x via Cinch/RCA
    • 1 x YC/S-Video via 4-pin mini DIN
    • 1 x Component analog video YPbPr(S) or RGsB/RGBS via 3 or 4 x BNC jack
  • Supported video formats:
    • HD: 720p, 1080i, 1080psf (psf digital only), 1080p23.97/24/25/30, 1080p30, 1080p50, 1080p59.94, 1080p60
    • ED: 480p, 576p (not via SDI)
    • SD: 625i (576i), 525i (480i)
    • Common VESA graphics formats from 640x480 to 1920x1200 (with reduced blanking for 1920x1200 and 1600x1200 modes)
    • Multi standard support for CVBS & YC in PAL, NTSC, SECAM formats with selectable 3D comb for composite
  • Outputs
    • 1x 3G-SDI
    • 1x DVI/HDMI with HDCP (HDMI with deep color 8-/10-/12-bit support, via DVI connector)
    • 1x VGA Analog via 15HDD
    • 1x S/PDIF digital audio via RCA
    • NB: 3G-SDI and VGA Analog outputs are disabled with HDCP-encrypted input. Not all outputs are available simultaneously
  • Supported Output formats:
    • DVI/VGA common VESA formats 640x480 to 1920x1200, 720p, 1080p
    • 3G-SDI in SMPTE formats 480i, 576i, 720p, 1080i, 1080p with selectable audio embed
    • Selectable Genlock (V-Lock), I/O lock or frame rate conversion mode
    • Selectable aspect ratio conversion
    • Selectable vertical temporal filter for flicker reduction of interlaced outputs (edge blend not available in this mode)
      Note: PIP and edge blend are mutually exclusive so cannot be used simultaneously
  • User Controls
    • Front panel jog-wheel and LCD menu display for fast set up
    • Keypad for direct input selection
    • Remote control via RS232, TCP/IP API and Web Server
    • PC-based Warp Map Generator tool
    • USB port for uploading software updates and new features
  • Power Requirements
    • 100-264VAC
    • 35W typical
  • Warranty: 3-year return to base warranty covers parts and labor
