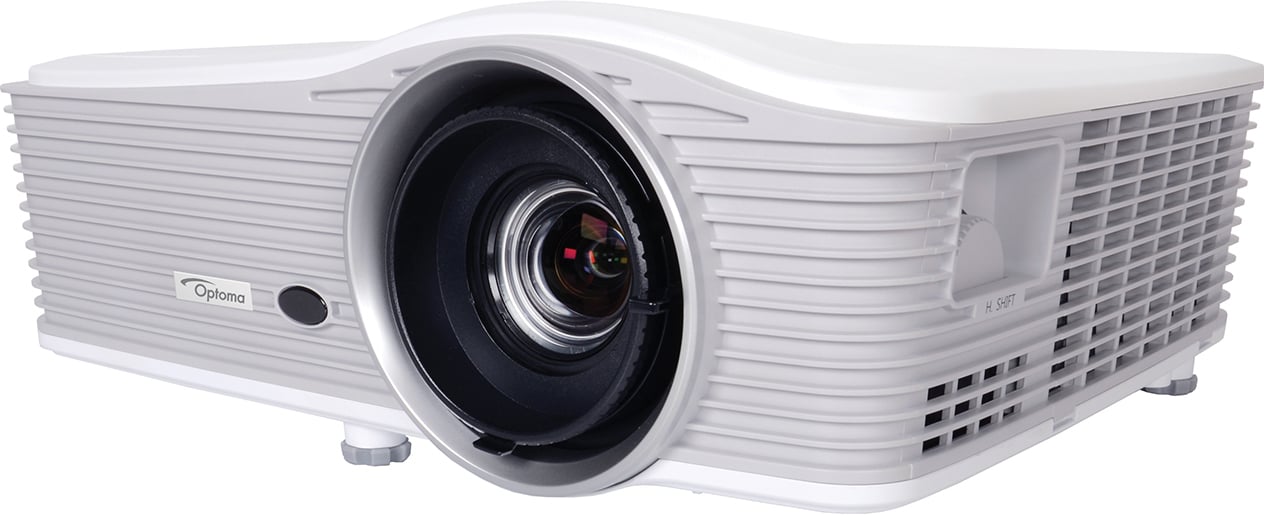

Optoma EH515T
5500 Lumen 1080p Full 3D ProScene Projector


Our Price: $2,199.00
List Price: $4,299.00
You save 49%!
In Stock

Recommended Accessories
Projection Calculator

The Optoma ProScene EH515T, a Full HD professional Installation projector, is ideal for Pro-AV, corporate environments, and house of worship installs. The EH515T's DLP® technology delivers accurate colors and great contrast for dark and white images. This projector offers advanced features that facilitate a quick installation. With a variety of inputs, including HDBaseT, and HDMI onboard MHL technology, the EH515T allows you to connect to a host of HD devices, so you can easily display your content. Also, the environmentally-friendly EH515T has energy-saving features, including Eco+ lamp power management, <0.5W standby mode and auto power off, offering you both time and money savings by prolonging your lamp life. Added benefits include: 4-corner correction (ideal for image stacking or uneven walls), Horizontal and Vertical Lens shift and Keystone, as well as with 1.8x zoom ratio, permit a quick setup and easy usability from practically any angle.

Optoma EH515T Includes:

  • EH515T projector
  • AC power cord
  • VGA cable
  • Remote control
  • Batteries
  • Multilingual CD-ROM user’s manual
  • Quick Start Card
  • Warranty card

Optoma EH515T Features:

  • Bright Projection - 5500 lumens
  • Flexible connectivity via HDBaseT port
  • 1.8x Zoom - excellent image from a short or long distance
  • Full Control over LAN and RS-232C
  • Four Corner correction - For a quick installation onto uneven walls
  • Full 3D and 1080p (1920x1080) with 3D-sync VESA port

Optoma EH515T Specifications:

  • Display Technology: Single 0.65" 1080p chip, DLP® Technology by Texas Instruments™
  • Native Resolution: 1080p 1920 x 1080
  • Brightness: 5500 Lumens
    • NOTE: Lamp-based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp-based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • Contrast Ratio: 10,000:1 (full on/full off)
  • Noise Level (Eco mode): 28 dB
  • Weight: 13 lbs (5.9 kg)
  • I/O Connectors: HDBaseT, 2x HDMI (1.4a 3D support) + MHL, Display port, 2xVGA (YPbPr/RGB), S-Video, Composite Video, 3x Audio-in (RCA/3.5mm), Mic-in(3.5mm), Audio-Out (3.5mm), VGA-out, RS-232C, USB-A (Power 1.5A), USB-B(mouse/ service) RJ45, 12V trigger, 3D-Sync, Wired Remote
  • Maximum Resolution: Full HD 1080p (1920 x 1080) (Graphics Timing)
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA,WXGA, HD, Mac
  • Video Compatibility: NTSC 480i/p, HD 720p/1080i/1080p, PAL SECAM 576i/p
  • Displayable Colors: 1.07 Billion
  • Projection Lens: F=17.63~31.36 mm; manual focus
  • Throw Ratio: 1.2:1~2.16:1
    • NOTE: +/- 5% tolerance
  • Projection Screen Size: 27.2"~301.1" (0.69~7.64 m) diagonal16:9
  • Projection Distance: 4.27'–26.24' (1.3–8.0 m)
  • Zoom Type: 1.8x Manual
  • Aspect Ratio: 16:9 Native, 16:10/4:3 Compatible
  • Offset: Vertical: 105%
  • Horizontal Scan Rate: 15.375~91.146 KHz
  • Vertical Scan Rate: 24– 85 Hz (120 Hz for 3D feature projector)
  • Lamp Type: 365W
  • Lamp Life Eco/Bright: 4000/3000 (hrs)
    • NOTE: Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
  • Keystone Correction: ± 30° Vertical ± 30° Horizontal
  • Audio: 20 Watts
  • Dimensions: 16.7" W x 6.3" H x 13.5" D (424 x160 x 344 mm)
  • Remote Control: IR with 3.5mm for wired remote control option
  • Power Supply: AC input 100–240V @ 50–60 Hz,auto-switching
  • Power Consumption: 490W (Bright), 390W Max (ECO), <0.5W (Standby)
  • Operating Conditions: 41–113°F (5~45°C), 85% max humidity
  • Uniformity: 80%
  • Security: Kensington® lock port, security bar, password protection
  • RoHS: Compliant
  • Lens Shift: Vertical: 105% - 130%; Horizontal: ±10%
  • 3D Support: Full 3D - The 3D features of Optoma projectors can only beused with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKYin the UK), Blu-ray 3D™ and 3D games from the Sony®PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility:
    • Side-by-Side: 1080i(50/60Hz)
    • Frame-pack: 1080p(24Hz), 720p(50/60Hz)
    • Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz)
    • 3D glasses are needed and are sold separately.
    • Refer to user manual for details.
  • Speaker (Watts): Two 10-Watt (stereo)
  • Color Wheel: 6 Segment; RYGCWB
  • Projection method: Front, rear, ceiling mount, table top
  • 360’ Operation: Not supported
  • Portrait Mode: Not supported
  • Optional Wireless: Yes
  • Features: V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®,PJ-Link
  • Warranty: 3-Year Optoma Express Service, 1-Year onLamp
