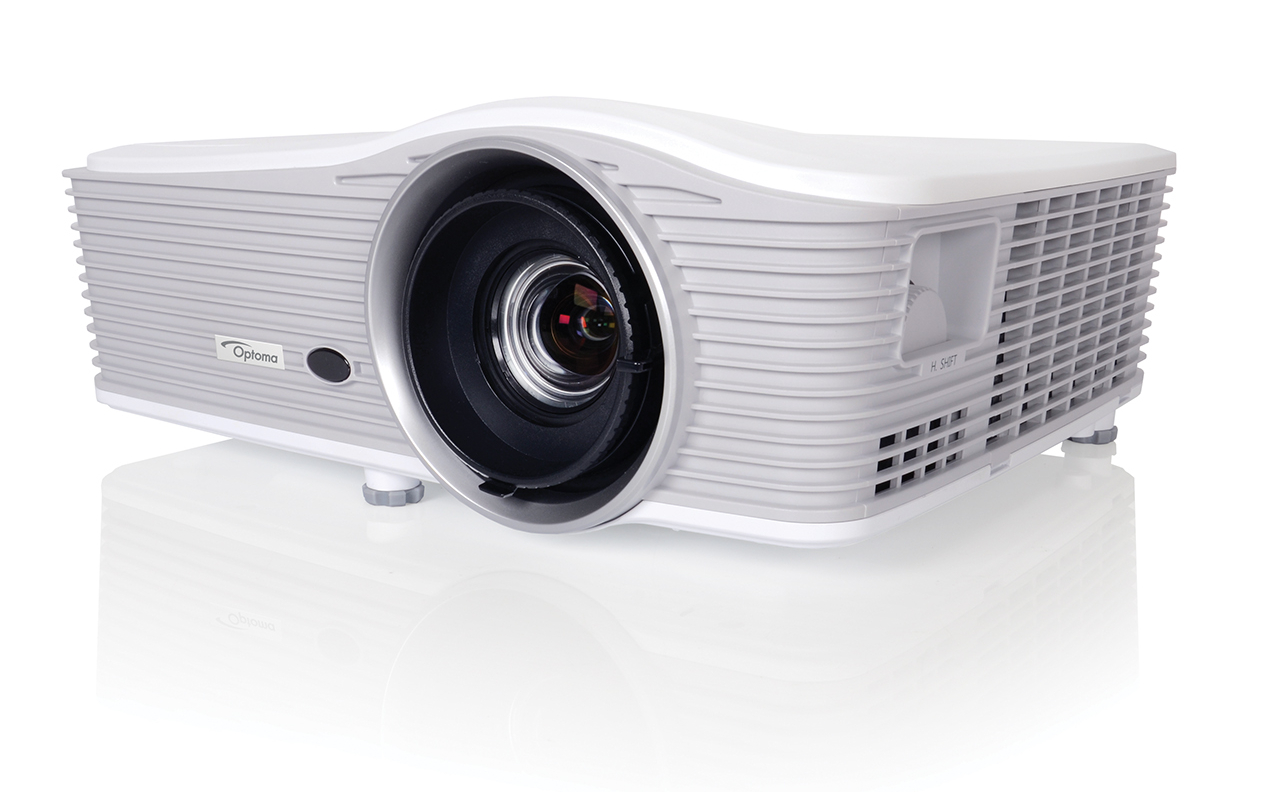

Optoma EH515
5500 Lumen 1080p Full 3D ProScene Projector


Our Price: $1,999.00
List Price: $3,899.00
You save 49%!
In Stock

Recommended Accessories
Projection Calculator

The Optoma ProScene EH515 is a Full HD professional Installation projector, ideal for houses of worship, corporate environments, and Pro-AV installs. The EH515's DLP technology delivers accurate colors and great contrast for dark and white images. It comes furnished with advanced features to facilitate quick installation, also equipped with a variety of inputs, including HDMI onboard MHL technology. The EH515 ProScene projector lets you connect to a wide variety of HD devices to easily display your content. Additionally, the environmentally-friendly EH515 has energy saving features, such as Eco+ lamp power management, as well as <0.5W standby mode and auto power off, saving you both money and time via prolonged lamp life. Added benefits include: 4-corner correction (ideal for image stacking or uneven walls), Horizontal/Vertical Lens shift and Keystone, together with 1.8x zoom ratio, all providing quick setup and easy usability from virtually any angle.

Optoma EH515 Includes:

  • EH515 projector
  • AC power cord
  • VGA cable
  • Remote control
  • Batteries
  • Multilingual CD-ROM user’s manual
  • Basic user manual
  • Warranty card

Optoma EH515 Features:

  • 4-corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
  • 1.8x Zoom - excellent image from a short or long distance
  • Vertical/ Horizontal keystone and lens shift for various applications
  • Bright Projection at 5500 ANSI lumens for large installations
  • Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link,and Telnet
  • (2) 10-Watt speakers for excellent sound

Optoma EH515 Specifications:

  • Display Technology: Single 0.65" 1080p chip, DLP® Technology by Texas Instruments™
  • Native Resolution: 1080p 1920 x 1080
  • Brightness: 5500 ANSI Lumens
    • NOTE: 1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • Contrast Ratio: 10,000:1 (full on/full off)
  • Noise Level (Eco mode): 28 dB
  • Weight: 13 lbs (5.9 kg)
  • I/O Connectors:
    • Display port
    • Two HDMI 1.4a + MHL
    • Two VGA-In
    • VGA Out
    • Composite Video
    • S-Video
    • Three Audio-In (stereo, 3.5mm and RCA)
    • Audio-Out (3.5mm jack)
    • 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3DSync vesa port, RS-232C, mini-USB (service/control), RJ45, AC power (3-pin)
  • Maximum Resolution: 1080p (1920 x 1080)
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA,WXGA, HD, Mac
  • Video Compatibility: PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J,3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p,720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz)
  • Displayable Colors: 1.07 Billion
  • Projection Lens: F=17.63~31.36 mm; manual focus
  • Throw Ratio: 1.2:1~2.16:1
    • NOTE: +/- 5% tolerance
  • Projection Screen Size: 27.2"~301.1" (0.69~7.64 m) diagonal, 16:9
  • Projection Distance: 4.27'–26.24' (1.3–8.0 m)
  • Zoom Type: 1.8x Manual
  • Aspect Ratio: 16:9 Native, 4:3 Auto Compatible
  • Offset: Vertical: 105% (±5% Variance)
  • Horizontal Scan Rate: 15.375~91.146 KHz
  • Vertical Scan Rate: 24– 85 Hz (120 Hz for 3D feature projector)
  • Lamp Type: 365W
  • Lamp Life Eco/Bright: 4000/3000 (hrs)
    • NOTE: Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
  • Keystone Correction: ± 30° Vertical ± 30° Horizontal
  • Audio: 20-Watt
  • Dimensions (WxHxD): 16.7" x 6.3" x 13.5" (424 x 160 x 344 mm)
  • Remote Control: IR and wired control
  • Power Supply: AC input 100–240V @ 50–60 Hz, auto-switching
  • Power Consumption: 445W (Bright), 335W Max (ECO), <0.5W (Standby)
  • Operating Conditions: 41–113°F (5~45°C), 85% max humidity
  • Uniformity: 80%
  • Security: Kensington® lock port, security bar, password protection
  • Optional Accessories: Universal ceiling mount, Optoma screen, DLP® Link™3D glasses, wireless HDMI system
  • RoHS: Compliant
  • Lens Shift: Vertical: +20%; Horizontal: ±10% (constraints apply - contact your sales pro for details)
  • 3D Support: Full 3D - The 3D features of Optoma projectors can only beused with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKYin the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility:
    • Side-by-Side: 1080i (50/60Hz)
    • Frame-pack: 1080p (24Hz), 720p (50/60Hz)
    • Over-Under: 1080p (24Hz), 1080i (50/60Hz), 720p (50/60Hz)
    • 3D glasses are needed and are sold separately.
    • Refer to user manual for details.
  • Speaker (Watts): (2) 10-Watt (stereo)
  • Color Wheel:
    • 6 Segment: RYGCWB
  • Operating Temperature: 41–113°F (5~45°C), 85% max humidity
  • Projection method: Front, rear, ceiling mount, table top
  • 360’ Operation: Not supported
  • Portrait Mode: Not supported
  • Optional Wireless: Yes
  • Features: V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
