Optoma Free 5 Year Projector Warranty Offer

When You Purchase One Of The Optoma Projectors Listed Below From Full Compass Before January 1st, You Will Receive A ... read more

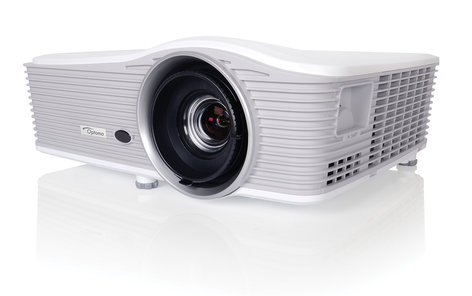

Optoma W515T
6000 Lumen Widescreen WXGA DLP Projector with HDBaseT

OUR PART #:  W515T

The Optoma ProScene W515T is a Full HD professional Installation projector, ideal for corporate environments, houses of worship and Pro-AV installs.
Learn More
Our Price: $1,799.00
List Price: $3,499.00
You save 49%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Optoma W515T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Projection Calculator

The Optoma ProScene W515T is a Full HD professional Installation projector, ideal for corporate environments, houses of worship and Pro-AV installs. W515T DLP® technology provides accurate colors and great contrast for dark and white images. This projector comes furnished with advanced features to facilitate a quick installation. Equipped with a variety of inputs, including HDBaseT, HDMI built in MHL technology, the W515T ProScene projector allows you to connect to a wide variety of HD devices to easily display your content. In addition, the environmentally friendly W515T has energy saving features including Eco+ lamp power management, <0.5W standby mode and auto power off, saving you both time and money by prolonging your lamp life. Added benefits include: Four corner correction (ideal for image stacking or uneven walls), Horizontal and Vertical Lens shift and Keystone together with x1.8 zoom ratio, permit a quick setup and easy usability from any angle.

Optoma W515T Includes:

  • W515T projector
  • AC power cord
  • VGA cable
  • Remote control
  • Batteries
  • Multilingual CD-ROM user manual
  • Quick Start Card
  • Warranty card

Optoma W515T Features:

  • 4-corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
  • 1.8x Zoom - excellent image from a short or long distance
  • Vertical/ Horizontal keystone and lens shift for various applications
  • Bright Projection at 6000 ANSI lumens for large installations
  • Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link,and Telnet
  • Onboard HDBaseT ideal for long cable runs in the install environment

Optoma EH515T Specifications:

  • Display Technology: Single 0.65" 1080p chip, DLP® Technology by Texas Instruments™
  • Native Resolution: WXGA 1280 x 800
  • Brightness: 6000 ANSI Lumens
    • NOTE: 1 Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • Contrast Ratio: 10,000:1 (full on/full off)
  • Noise Level (Eco mode): 28 dB
  • Weight: 13 lbs (5.9 kg)
  • I/O Connectors: 1x HDBaseT, 1x Display port, 2x HDMI 1.4a + MHL, 2xVGA-In, 1x VGA out, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm andRCA), 1x Audio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USBtype-A 5V, 3D Sync vesa port, RS-232C, mini-USB (service/control), RJ45, ACpower (3-pin)
  • Maximum Resolution: 1080p (1920 x 1080)
  • Computer Compatibility: UXGA, SXGA, XGA, SVGA, VGA,WXGA, HD, Mac
  • Video Compatibility: PAL (B, D, G, H, I, M, N,4.43 MHz), NTSC (M, J,3.58MHz, 4.443 MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p,576i/p,720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz)
  • Displayable Colors: 1.07 Billion
  • Projection Lens: F=17.63~31.36 mm; manual focus
  • Throw Ratio 3: 1.2:1~2.16:1
    • NOTE: 3 +/- 5% tolerance
  • Projection Screen Size: 26.6"~302.1" (0.67~7.67 m) diagonal16:10
  • Projection Distance: 4.26'–26.9' (1.3–8.2 m)
  • Zoom Type: 1.8x Manual
  • Aspect Ratio: 16:10 Native, 16:9, 4:3, Auto
  • Offset: Vertical: 105% (±5% Variance)
  • Horizontal Scan Rate: 15.375~91.146 KHz
  • Vertical Scan Rate: 24– 85 Hz (120 Hz for 3D feature projector)
  • Lamp Type: 365W
  • Lamp Life2 Eco/Bright: 4000/3000 (hrs)
    • NOTE: 2 Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
  • Keystone Correction: ± 30° Vertical ± 30° Horizontal
  • Audio: 20-Watt
  • Dimensions (W x H x D): 16.7" x 6.3" x 13.5" (424 x160 x 344 mm)
  • Remote Control: IR and wired control
  • Power Supply: AC input 100–240V @ 50–60 Hz, auto-switching
  • Power Consumption: 445W (Bright), 335W Max (ECO),<0.5W (Standby)
  • Operating Conditions: 41–113°F (5~45°C), 85% max humidity
  • Uniformity: 80%
  • Security: Kensington® lock port, security bar, password protection
  • Optional Accessories: Universal ceiling mount, Optoma screen, DLP® Link™3D glasses, wireless HDMI system
  • RoHS: Compliant
  • Lens Shift: Vertical: +20%; Horizontal: ±10% (constraints apply - contactyour Sales Pro for details)
  • 3D Support: Full 3D - The 3D features of Optoma projectors can only beused with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKYin the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility:
    • Side-by-Side: 1080i(50/60Hz)
    • Frame-pack: 1080p(24Hz), 720p(50/60Hz)
    • Over-Under: 1080p(24Hz), 1080i(50/60Hz), 720p(50/60Hz)
    • 3D glasses are needed and are sold separately.
    • Refer to user manual for details.
  • Speaker (Watts): 2x 10-Watt (stereo)
  • Color Wheel:
    • 6 Segment: RYGCWB
  • Projection method: Front, rear, ceiling mount, table top
  • 360’ Operation: Not supported
  • Portrait Mode: Not supported
  • Optional Wireless: Yes
  • Features: V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®,PJ-Link
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
