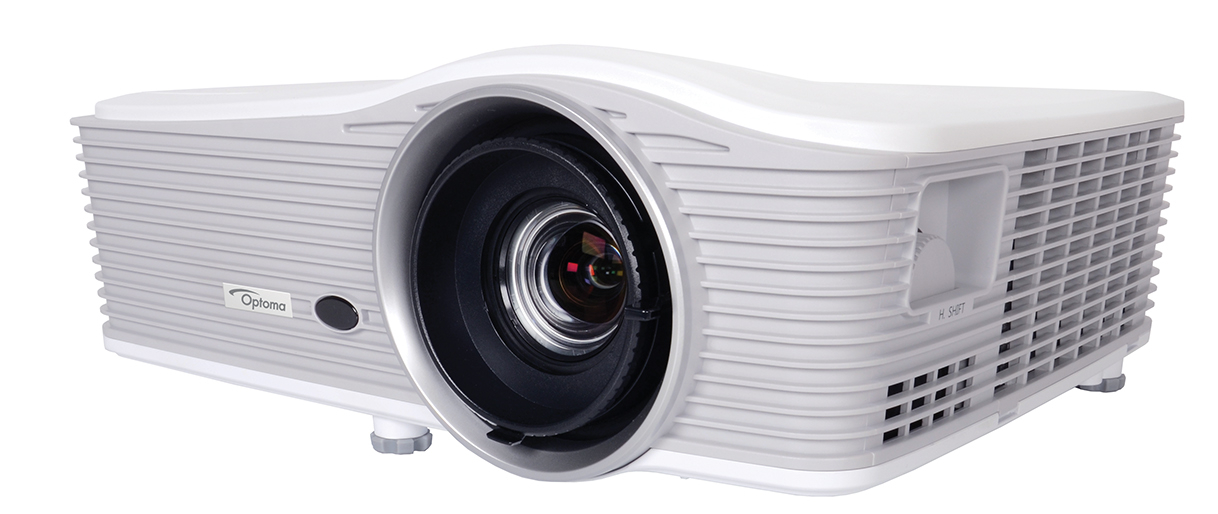

Optoma W515
6000 Lumen WXGA DLP ProScene Widescreen Installation Projector

OUR PART #  W515

Our Price: $1,799.00
List Price: $3,499.00
You save 49%!
In Stock

Recommended Accessories
Projection Calculator

A professional Installation projector, the Optoma W515 is ideal for corporate environments, house of worship and Pro-AV installs. W515 DLP® technology brings accurate colors and great contrast for dark and white images. It comes with advanced features to facilitate quick installation, and is equipped with a variety of inputs, including HDMI onboard MHL technology, which allows you to connect to a wide array of HD devices to easily display your content. In addition, the environmentally-friendly W515 has energy-saving features including Eco+ lamp power management, plus <0.5W standby mode and auto power off, saving you both time and money thru prolonged lamp life. Additional benefits include: 4-corner correction (ideal for image stacking or uneven walls), x1.8 zoom ratio, together with Horizontal/Vertical Lens shift and Keystone, allowing quick setup and easy usability from any angle.

Optoma W515 Includes:

  • W515 projector
  • AC power cord
  • VGA cable
  • Remote control
  • Batteries for remote
  • Multilingual CD-ROM user manual
  • Quick start card
  • Warranty card

Optoma W515 Features:

  • 4-corner Geometric Correction for easy installation of basic stacking solutions or on uneven walls
  • 1.8x Zoom - excellent image from a short or long distance
  • Vertical/ Horizontal keystone and lens shift for various applications
  • Bright Projection at 6000 ANSI lumens for large installations
  • Full Control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link, and Telnet
  • Two 10-Watt speakers for excellent sound

Optoma W515 Specifications:

  • Display Technology: Single 0.65" 1080p chip, DLP® Technology by Texas Instruments™
  • Native Resolution: WXGA 1280 x 800
  • Brightness: 6000 Lumens
    • NOTE: Lamp-based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.
  • Contrast Ratio: 10,000:1 (full on/full off)
  • Noise Level (Eco mode): 28 dB
  • Weight: 13 lbs (5.9 kg)
  • I/O Connectors: 1x Display port, 2x HDMI 1.4a + MHL, 2x VGA-In, 1x VGAout, Composite Video, S-Video, 3x Audio-In (stereo, 3.5mm and RCA), 1xAudio-Out (3.5mm jack), 1x Mic in (3.5mm jack), 12v trigger, USB type-A 5V, 3DSync vesa port, RS- 232C, mini-USB (service/control), RJ45, AC power (3 pin)
  • Maximum Resolution: Full HD 1080p (1920 x 1080)
  • Computer Compatibility: UXGA, SXGA+, HD, WXGA, XGA, SVGA
  • Video Compatibility: PAL (B, D, G, H, I, M, N, 4.43MHz), NTSC (M, J,3.58MHz, 4.443MHz), SECAM (B, D, G, K, K1, L, 4.25MHz, 4.4MHz, 480i/p, 576i/p,720p(50/60Hz), 1080i(50/60Hz) 1080p(24/50/60Hz)
  • Displayable Colors: 1.07 Billion
  • Projection Lens: F=17.63~31.36 mm with manual zoom and focus
  • Lamp Type: 365W
  • Lamp Life Eco/Bright: 4000/3000 (hrs)
    • NOTE: Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions.
  • Throw Ratio: 1.26:1~2.268:1
    • NOTE: +/- 5% tolerance
  • Projection Screen Size: 26.6"~302.1" (0.67~7.67 m) diagonal 16:10
  • Projection Distance: 4.26'–26.9' (1.3–8.2 m)
  • Zoom Type: 1.8x Manual
  • Aspect Ratio: 16:10 Native, 16:9/4:3 Compatible
  • Offset: 105% (± 5% variance)
  • Horizontal Scan Rate: 15.375~91.146 KHz
  • Vertical Scan Rate: 24– 85 Hz (120 Hz for 3D feature projector)
  • Keystone Correction:
    • ± 30° Vertical
    • ± 30° Horizontal
  • Audio: 20-Watt
  • Dimensions: 16.7" W x 6.3" H x 13.5" D (424 x 160 x 344 mm)
  • Remote Control: IR and wired control
  • Power Supply: AC input 100–240V @ 50–60 Hz, auto-switching
  • Power Consumption: 445W (Bright), 335W Max (ECO), <0.5W (Standby)
  • Operating Conditions: 41–113°F (5~45°C), 85% max humidity
  • Uniformity: 80%
  • Security: Kensington® lock port, security bar, password protection
  • Optional Accessories: Universal ceiling mount, Optoma screen, DLP® Link™3D glasses, wireless HDMI system
  • RoHS: Compliant
  • Lens Shift: Vertical: +20%; Horizontal: ±10% (constraints apply see usermanual for details)
  • 3D Support: Full 3D - The 3D features of Optoma projectors can only beused with compatible 3D content. Typical applications include use with 3Deducational or 3D design and modelling systems. 3D TV broadcast systems, (SKYin the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360are now supported as part of the HDMI v1.4a specification.
  • 3D Compatibility:
    • Side-by-Side: 1080i50 / 60
    • Frame-pack: 1080p24, 720p50 / 60
    • Over-Under: 1080p24, 1080i50/60, 720p50 / 60
    • 3D glasses are needed and are sold separately.
    • Refer to user manual for details.
  • Speaker (Watts): Two 10-Watt (stereo)
  • Color Wheel:
    • 6 Segment: RYGCWB
  • Operating Temperature: 41–113°F (5~45°C), 85% max humidity
  • Projection method: Front, rear, ceiling mount, table top
  • 360’ Operation: Not supported
  • Portrait Mode: Not supported
  • Optional Wireless: Yes
  • Features: V/H Lens Shift, PC-Free / LAN presentation, Crestron RoomView®, PJ-Link
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
