Martin Professional 92250140
RUSH Club Smoke Pump Unit

OUR PART #:  92250140

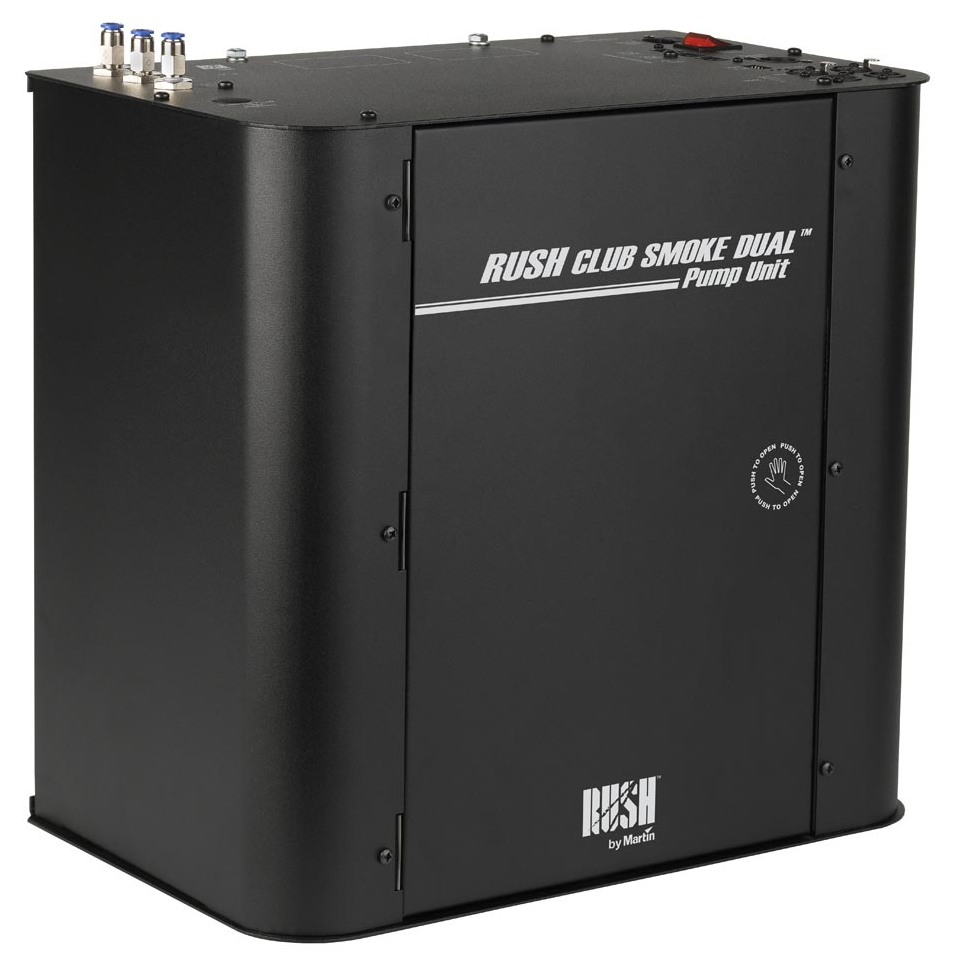

The Martin 92250140 is the pumping base unit of the Martin RUSH Club smoke Dual system.
Learn More
Our Price: $1,399.00
List Price: $1,748.75
You save 20%!
Write the first review.
Martin Professional 92250140
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Martin 92250140 is the pumping base unit of the Martin RUSH Club smoke Dual system. It can be installed in a convenient remote location and contains a 10-liter fluid reservoir which should provide continuous use throughout busy nights.

RUSH Club Smoke Dual
The RUSH Club Smoke Dual is a newer innovation based on the Martin's Magnum Club Smoke system, which you'll find installed in prestigious venues all over the world. The RUSH Club Smoke Dual is a multi-head system which can work with up to 6 heads across 3 zones via DMX or on-board digital display. This is a unique feature of the system that lets the user install either fog or haze heads, or a combination of both when using a specially formulated fluid. What this mean is that fluid changeover is no longer needed for the preferred atmospheric effect.

NOTE: Fog and Haze heads shown are sold separately.

Martin 92250140 Includes:

  • Martin RUSH Club Smoke Dual System Pumping Base Unit
  • Base Fluid container, 10 l (2.6 US gal.)
  • Power cable, IEC, 1.5 m (4.9 ft.), NEMA 5-15P mains plug (US models): P/N11501502

Martin 92250140 Specifications:

  • Construction:
    • Housing: Steel and aluminum
  • Fluid system:
    • Fluid pump: Oscillating piston, high pressure
    • Onboard fluid capacity: 10 l
    • Compatible fluids: RUSH Club Smoke Dual Fluid
  • Connections:
    • Power connection (base): IEC
    • DMX data: 3-pin and 5-pin XLR
    • Remote control: 3-pin locking XLR
  • Physical:
    • Dimensions (LxWxH): 10.2" x 16.4" x 17" (257 x 415 x 431mm)
    • Dry weight: 29.5 lbs (13.4 kg)
  • Electrical:
    • AC power (US models): 115-125 V nominal, 50/60 Hz
    • Main fuse in heads (110-120 V power): 10 AT/125 V
  • Power
    • Base pump unit (US model): 180 W, 1.7 A
      Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
