Liberty AV Solutions AXLINK-P
1000 ft. of AMX Systems Plenum 22 AWG 1-Pair Shielded and 18 AWG 2-Conductor Composite Cable

OUR PART #:  AXLINK-P-1000

Liberty AV's AXLINK-P is composite AMX plenum cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted...
Learn More
Our Price: $711.00
List Price: $790.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Liberty AV Solutions AXLINK-P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

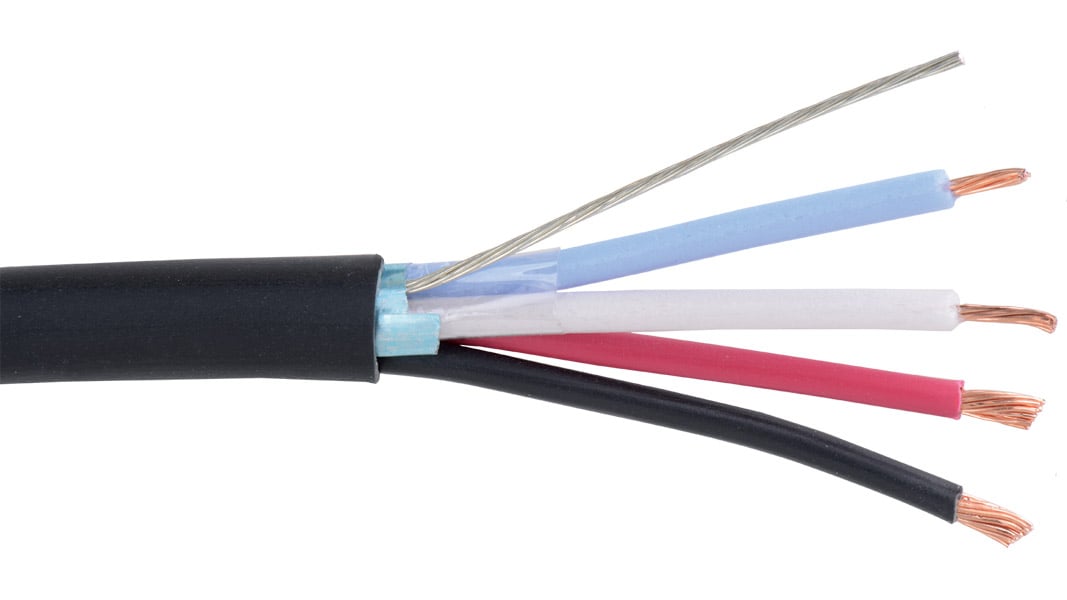

Liberty AV's AXLINK-P is composite AMX plenum cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair, overall jacketed. NEC type CMP and CEC type CMP FT6 compliant. Product manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC articles 725 and 800.

Liberty AV AXLINK-P Features:

  • Universal control and power cable
  • Twisted, shielded 22 AWG data pair
  • Twisted, unshielded 18 AWG power pair
  • 12.5 pF/FT 105 Ohm digital data pair
  • Plenum rated PVC jacket
  • NEC CMP, CEC CMP FT6, RoHS compliant

Liberty AV AXLINK-P Applications:

  • OEM RS-232C, RS-422, and RS-485 data control
  • Power pair for up to 300 watts
  • Class 2 and Class 3 low voltage power
  • Systems instrumentation and Control

Liberty AV AXLINK-P Specifications:

  • Conductor:
    • 22 AWG shielded data pair
    • 7-strand annealed bare copper conductors
    • Foam flourinated ethylene propylene
    • Wall thickness: 0.019" | 0.51mm
    • Diameter: 0.068" | 1.73mm
    • 100% aluminum/poly shield foil in
    • 24 AWG 7-strand tinned copper drain wire
  • Insulation:
    • 18 AWG unshielded power pair
    • 16-strand annealed bare copper conductors
    • Plenum rated polyvinyl chloride insulation
    • Wall thickness: 0.009" | 0.23mm
    • Diameter: 0.065" | 1.65mm
  • Electrical:
    • 22 AWG DCR: 15.7 Ohm / 1000’ | 51.5 Ohm/KM
    • Shield DCR: 22.5 Ohm / 1000’ | 73.8 Ohm/KM
    • Mutual capacitance: 12.5pF/FT | 41.0 pF/M
    • Impedance: 105 Ohm
    • Velocity of Propagation: 82%
    • Voltage rating: 300V
    • 18 AWG DCR: 6.74 Ohm / 1000’ | 22.11Ohm/KM
    • Maximum current: 3.0A@25°C
  • Regulatory:
    • NEC: CL2P 75°C
    • CEC: CMP FT6 60°C
    • EU RoHS-2 2011/65/EU Compliant
  • Color Code:
    • Data pair: Blue, White
    • Power pair: Red, Black
  • Weight: 29 lbs/1000 ft.
  • Assembly: Shielded data pair and power pair cabled on a common axis
  • Installation:
    • Pull Tension: 40 lbs | 178 N
    • Bend radius: 2.15" | 55mm unloaded
    • Bend radius: 4.30" | 110mm loaded
  • Construct: Ripcord under jacket
  • Applications:
    • AMX Axlink universal system control cable
    • Plenum RS-232C, RS-485 simplex data and control
    • Plenum systems control and communication cable
  • Shield: Data pair shielded per component 1 description
  • Performance: 18 AWG power: 500 feet maximum
  • Jacket:
    • Plenum rated polyvinyl chloride
    • Colors: Black
    • Wall thickness: 0.025" | 0.64mm
    • Diameter: 0.215" | 5.46mm
  • Final Outside Diameter: 0.215"
